WiFi USB 4G Novastar LED Display Screen Controller Sender Box Tb4/TB3/TB6
WiFi USB 4G Novastar LED Display Screen Controller Sender Box Tb4/TB3/TB6
WiFi USB 4G Novastar LED Display Screen Controller Sender Box Tb4/TB3/TB6
WiFi USB 4G Novastar LED Display Screen Controller Sender Box Tb4/TB3/TB6
WiFi USB 4G Novastar LED Display Screen Controller Sender Box Tb4/TB3/TB6
WiFi USB 4G Novastar LED Display Screen Controller Sender Box Tb4/TB3/TB6
WiFi USB 4G Novastar LED Display Screen Controller Sender Box Tb4/TB3/TB6
WiFi USB 4G Novastar LED Display Screen Controller Sender Box Tb4/TB3/TB6
WiFi USB 4G Novastar LED Display Screen Controller Sender Box Tb4/TB3/TB6
WiFi USB 4G Novastar LED Display Screen Controller Sender Box Tb4/TB3/TB6
WiFi USB 4G Novastar LED Display Screen Controller Sender Box Tb4/TB3/TB6

WiFi USB 4G Novastar LED Display Screen Controller Sender Box Tb4/TB3/TB6

Model NO.
TB4
Quantity:
  • Application:led display
  • Place of Origin:China (mainland) Guangdong
  • Product name:Taurus multimedia player tb4
  • Color:Black Color
  • Certificate:CE ROHS FCC
  • Warranty:1 Year
  • Place of Origin:CN;GUA
  • Application:led display
  • Color:black
  • Panel Size:15*20cm
  • Pixel Pitch:p2/p2.5/p3/p4mm
  • Model Number:TB4
  • Brand Name:NOVASTAR

Qiuck deatail:

Taurus series products are the second generation multimedia player launched by Novartis technology for small and medium led full-color display.

Tb4 has the following advantages:

1.Support multi screen playback synchronization mechanism.

2.Strong processing performance. All round control scheme.

3.Support synchronous and asynchronous dual-mode. WiFi AP connection is supported.



The hardware of tb4 also has the following features:

It supports 1.3 million pixel carrying capacity, with the widest 4096 pixels and the highest 1920 pixels.

Support Gigabit wired network.

Support stereo audio output.

HDMI loop support.

Support HDMI input mode and full screen adaptive playback.

Support manual and timed switching of synchronous / asynchronous mode.

U disk program import and play are supported.

The on-board brightness sensor interface supports automatic and timed intelligent brightness adjustment.




Other Hardware Features

A.Electrical parameter:

1.input voltage 100V ~ 240V AC

2.Maximum power consumption 18W

B.Storage space

1.running memory 2GB

2.8GB internal storage board, 4GB available for users

C.Storage environment

1.temperature - 40 ºC ~ 80 ºC

2.Humidity 0% RH ~ 80% RH, no condensation

D.Working environment

1.temperature - 20 ºC ~ 60 ºC

2.Humidity 0% RH ~ 80% RH, no condensation

E.Package information size (length × width × height) 375mm × 280mm × 108m

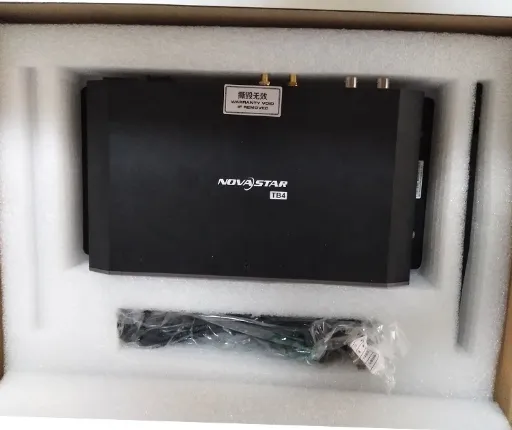

1 x TB4

1 × WiFi omnidirectional antenna

1 × AC power line

1 × Quick Guide




Application:

QQ20191104135226.pngQQ20191104135128.pngP6 outdoor ledp6 outdoor 2side led display (3).jpg

Company Information

JINGCAN led factory’s main products areconsist of rental led display, advertising led screen, football stadiumperimeter, stage background video wall, traffic guiding display, special-shapeddisplay like curve and round, led moving light, led Par light, led modules andlaser light, etc. The outstanding features of our led products areenvironmental-friendly, energy-saving and long life-span. All of our LEDproducts have approved by CCC, CE, ROHS, FCC, ISO9001 quality certificatesauthorities. Furthermore, our LED products were exported to more than 90countries till now such as Sweden, USA, Brazil, France, Japan, Thailand, Italy,Australia, Spain and etc. Those LED products were widely used in both indoorand outdoor places like hall, hotel, exhibition room, public square, symbols,building and TV stage background and etc.




JINGCAN LED FACTORY Main LED Display Product Lines - Automatical Machines


Qualification Honor:

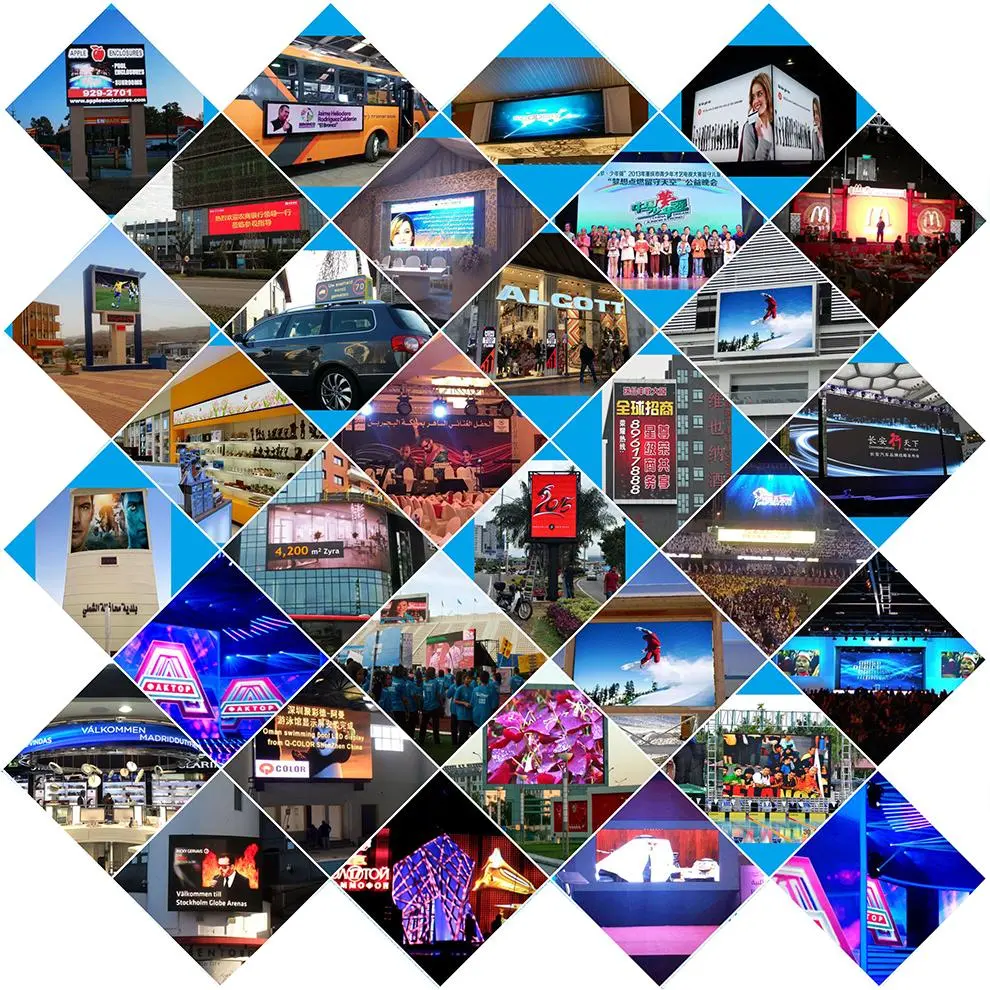

LED display Project around the world:




Our Services

1. Your inquiry about our products or the price will be replied within 24 hours!
2. We provide 2 years for warranty and lifelong maintaining, you will appreciate our warm after-sale service.
3. We will delivery goods as you demand, you can choose the cheaper and more convenient way!
4. Apart from the Outdoor LED Display, Visionled also can offer you LED Pharmacy Cross Display, LED Flexible Display, Indoor LED Display, LED Gas Price Signs, Indoor/outdoor LED Signs



FAQ

1. How can I place an order?
Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. For designing or further discussion, it is better to contact us with Skype/email /phone, in case of any delays.

2. What kind of display we provide?
We have indoor/outdoor/led curtain/mobile LED /rental LED display /LED stage/LED Dance Floor/Irregular LED display for you choose.

3. What about the lead time for order?
Always: 3-20 days, as your order quantity, sometimes we have stock, can delivery within 5 days

4.How about the warranty ?
We have two years warranty.
