Model NO.
JC-P1.25MM
Quantity:
  • Product name:P1.25 COB shelf screen
  • Application:market shelf
  • Certificate:CE ROHS FCC
  • Brightness:500cd/sqm
  • Color:Full-color
  • Module size:300mm*56.25mm
  • Life span:100000hours
  • Refresh rate:1920 Hz
  • Viewing angle:140/140 Degree
  • Scan mode:1/30 Scan
  • Place of Origin:CN;GUA
  • Application:Market shelf
  • Color:full color
  • Panel Size:300*56.25mm
  • Pixel Pitch:1.25mm
  • Model Number:JC-P1.25MM
  • Brand Name:KS
Product Description



What is COB shelf led display?

COB means “Chip on Board”. It’s a new encapsulation technology which is different from traditional product LED. COB inherits advantage of LED, such as long life span, high brightness, wide viewing angle; but also with super high contrast 10000:1, anti-glare, seamless splitting and splicing on different kinds of occasions.  Compared with LCD, OLED and other types of displays, COB Display has unbeatable air tightness, which ensures zero failure of weak soldering. The superb features of waterproof, dust-proof, touch proof, anti-static and anti-collision gives it full protection in various uses.



1) Smaller pixel pitch: P1.25

2) Stronger protection: COB LED chips are welded on the PCB board directly, then do encapsulation. It has excellent protection capabilities.

3) Higher reliability and stability: COB technology has simpler process on material using and producing than SMD, so it has higher performance on heat dissipation to prolong life span.

4) Larger viewing angle: has larger viewing angle and is easy to control the loss of light refraction.

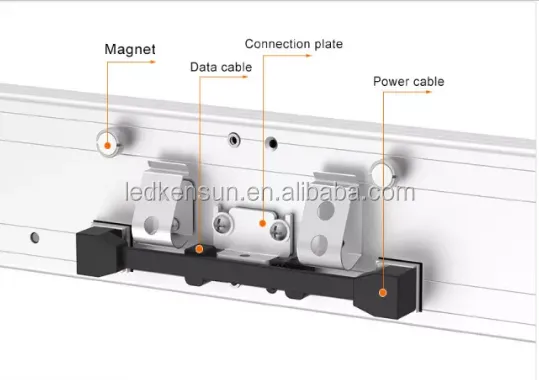

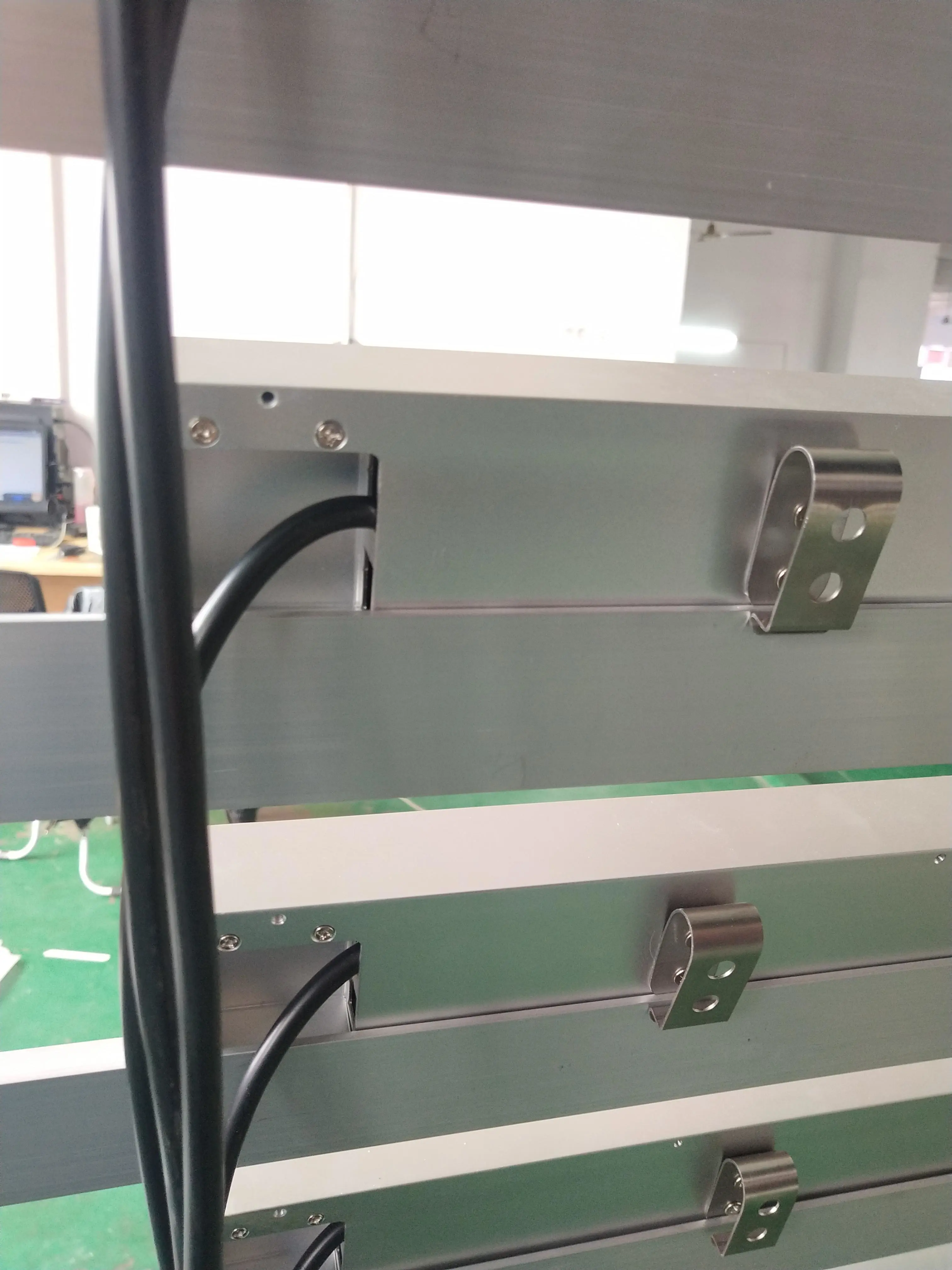

 Cabinet detail:

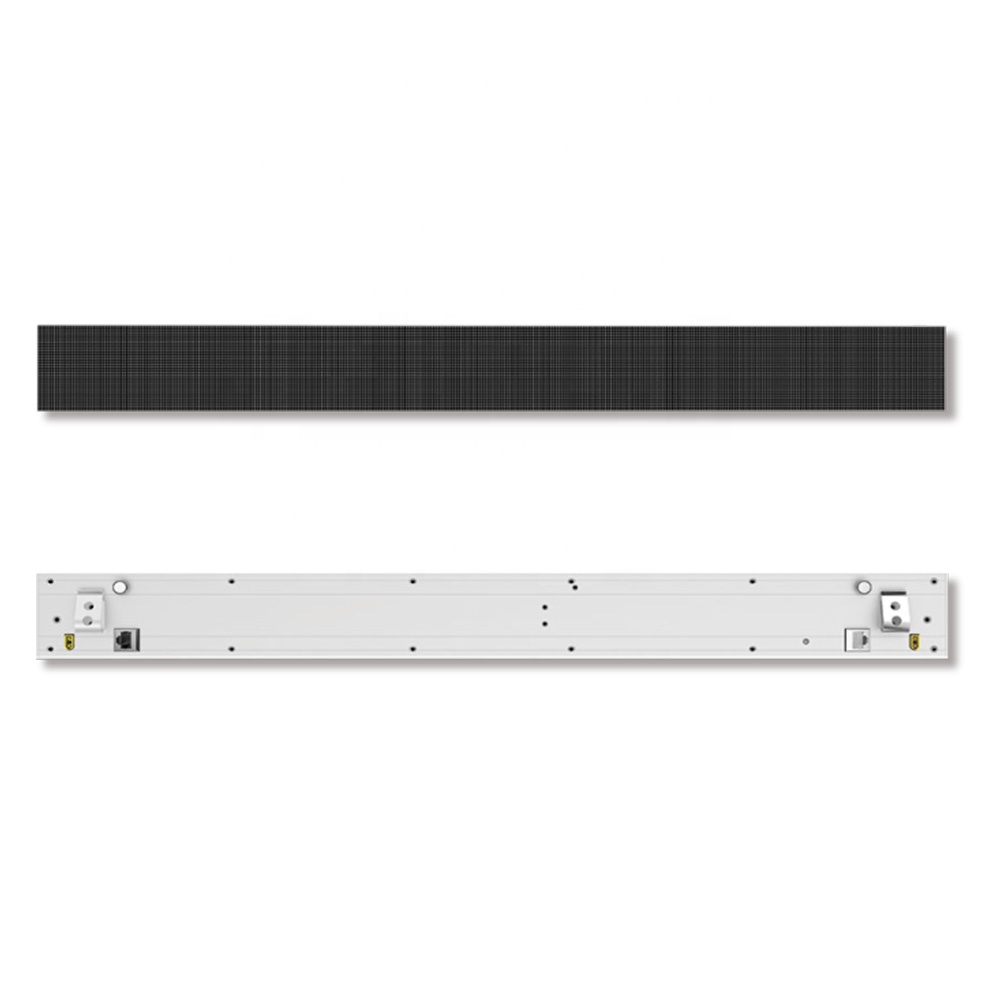

P1.25 cob shelf

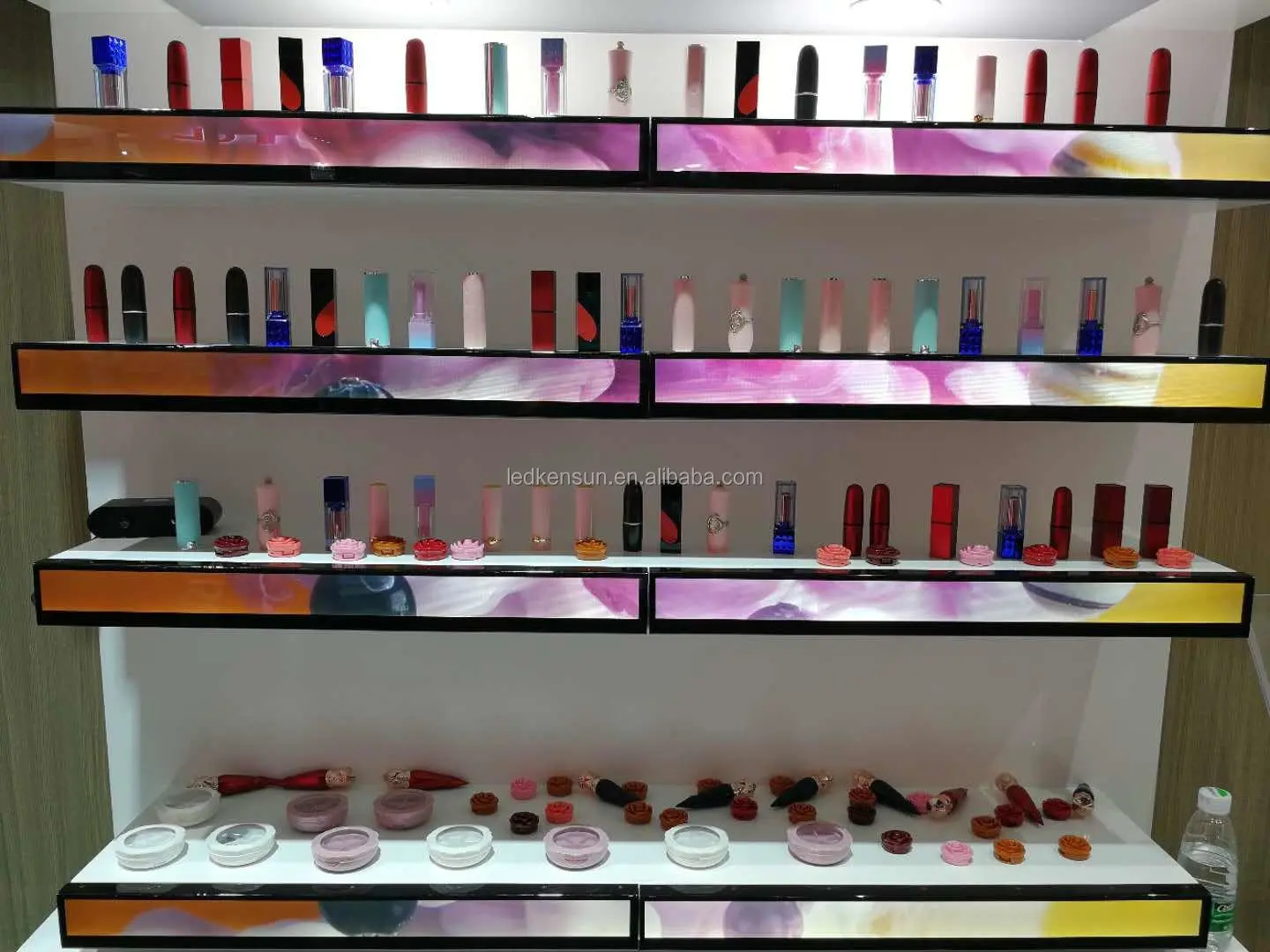

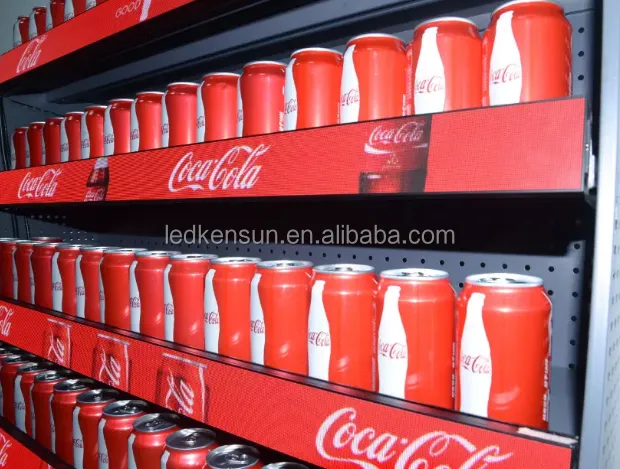

Application:




Specification
LED display specifications:
Pixel Pitch1.25mm
Module Size300x56.25mm
Module resolution240x270pixel
Density dot640,000pixel/sq. m
Pixel configuration1R1G1B
The best view distance1-10M
Drive mode1/32 Scan
Max Power Consumption130W/sq. m
LED TypeSMD 3 in 1
Brightness≥500nit
Refresh frequency1920-3840Hz
View AngleH:1400/ V: 1400
Working EnvironmentTemp:-20°C~60°C, Humidity:10%~90%

Working Voltage

AC:100V~120V

AC:220~240V

Lifetime

100,000Hours

IP

IP43

Warranty

1 year

Input signal

RF,S-VIDEO,RGB,RGBTV,YUT,YC,COMPISITION



Packaging & Shipping

Packaging:

Usually, there are three tyeps of package design.

Firstly, we pack the LED display in the paper carton.



Secondly, we will pack the LED display in the flight case if  customer request for frequent movement.



Thirdly, the favorable package method is wooden case package because of its lower cost and instant usage.

packge

Note: It also could mark the brand as clients requirement.

Shipping:

We could provide air shipping, sea shipping and international Express according to clients needs.



Company Information

JINGCAN led factory’s main products areconsist of rental led display, advertising led screen, football stadiumperimeter, stage background video wall, traffic guiding display, special-shapeddisplay like curve and round, led moving light, led Par light, led modules andlaser light, etc. The outstanding features of our led products areenvironmental-friendly, energy-saving and long life-span. All of our LEDproducts have approved by CCC, CE, ROHS, FCC, ISO9001 quality certificatesauthorities. Furthermore, our LED products were exported to more than 90countries till now such as Sweden, USA, Brazil, France, Japan, Thailand, Italy,Australia, Spain and etc. Those LED products were widely used in both indoorand outdoor places like hall, hotel, exhibition room, public square, symbols,building and TV stage background and etc.

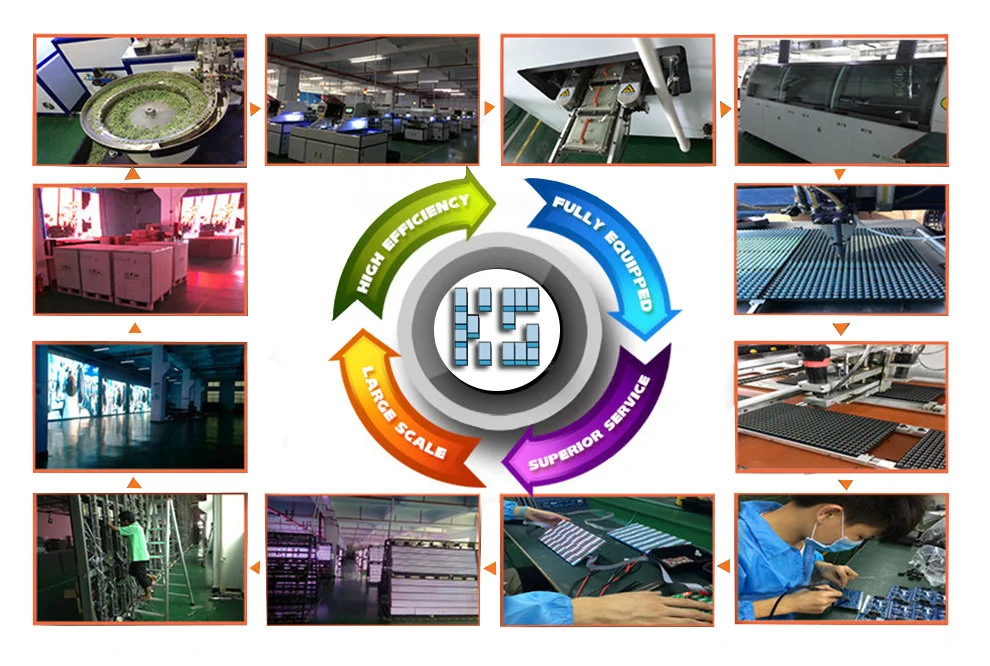

JINGCAN LED FACTORY Main LED Display Product Lines - Automatical Machines


Qualification Honor:


LED display Project around the world:




Our Services

1. Your inquiry about our products or the price will be replied within 24 hours!
2. We provide 2 years for warranty and lifelong maintaining, you will appreciate our warm after-sale service.
3. We will delivery goods as you demand, you can choose the cheaper and more convenient way!
4. Apart from the Outdoor LED Display, Visionled also can offer you LED Pharmacy Cross Display, LED Flexible Display, Indoor LED Display, LED Gas Price Signs, Indoor/outdoor LED Signs



FAQ

1. How can I place an order?
Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. For designing or further discussion, it is better to contact us with Skype/email /phone, in case of any delays.

2. What kind of display we provide?
We have indoor/outdoor/led curtain/mobile LED /rental LED display /LED stage/LED Dance Floor/Irregular LED display for you choose.

3. What about the lead time for order?
Always: 3-20 days, as your order quantity, sometimes we have stock, can delivery within 5 days

4.How about the warranty ?
We have two years warranty.
