Shopping mall video advertising flexible HD P2 curtain led dispalys/curve led video wall
Shopping mall video advertising flexible HD P2 curtain led dispalys/curve led video wall
Shopping mall video advertising flexible HD P2 curtain led dispalys/curve led video wall
Shopping mall video advertising flexible HD P2 curtain led dispalys/curve led video wall
Shopping mall video advertising flexible HD P2 curtain led dispalys/curve led video wall
Shopping mall video advertising flexible HD P2 curtain led dispalys/curve led video wall
Shopping mall video advertising flexible HD P2 curtain led dispalys/curve led video wall
Shopping mall video advertising flexible HD P2 curtain led dispalys/curve led video wall
Shopping mall video advertising flexible HD P2 curtain led dispalys/curve led video wall
Shopping mall video advertising flexible HD P2 curtain led dispalys/curve led video wall
Shopping mall video advertising flexible HD P2 curtain led dispalys/curve led video wall
Shopping mall video advertising flexible HD P2 curtain led dispalys/curve led video wall
Shopping mall video advertising flexible HD P2 curtain led dispalys/curve led video wall

Shopping mall video advertising flexible HD P2 curtain led dispalys/curve led video wall

Model NO.
JC-FSI-PH2MM
Quantity:
  • Pixels:P2 indoor curve led display
  • Screen Dimension:customized
  • Brightness:1000nit
  • IP rate:IP45
  • Weight:35KG/SQM
  • Configurations:1R1G1B
  • LED type:SMD1515
  • Density:160000 pixels/sqm
  • Gray scale per color:65536 levels
  • Certificate:CE ROHS FCC
  • Place of Origin:CN;GUA
  • Application:advertising
  • Color:full color
  • Panel Size:240mm*120 mm
  • Pixel Pitch:2mm
  • Model Number:JC-FSI-PH2MM
  • Brand Name:JC





P2 indoor flexible curved led display screen



Quick Details:



1, Full black LED Chips;

2, Sum sery LED driver IC;

3, LED Source: SMD1515

4, LED Module Size: 240mm x 120mm;

5, Contrast Ratio: 2000:1;

Product Description



1.Seamless splicing of LED display: Adopt trapezoidal circuit design to achieve seamless splicing;
2. LED display is evenly drawn: Supports the technology of evenly drawn, the display is not distorted;
3. Flexible LED display control: compatible with asynchronous, support offline and online modes;
4. LED display has good heat dissipation performance: adopt aluminum structural cooling solution;
5, LED display is easy to install: As a complete system, it supports floor installation, hoisting, embedded installation, etc.
6, LED display is easy to maintain: support front maintenance and post maintenance;

Specification
LED MODULE PARAMETER
Pixel pitch (mm)2mm
Pixel configuration3 in 1
EncapsulationSMD1515
Colors matches6:3:1
Module resolution (pixels)120 x 60
Module pixel7200
Module size (mm)240x 120
LED DISPLAY SPECIFICATION
Pixel density(pixel/m2)250000
Brightness(cd/m2)≥1000 (adjustable)
Brightness adjusted100 grade by software or by Auto-optic induced
View angleHorizontal 140°; Vertical 120°
Best viewing distance (m)≥2m
Communication distance(m)<100meter by Internet Cable(without Relay; Multi mode fiber cable < 500m;
Single mode fiber cable < 20km
Display work method1/24 Scan
LED driving methodConstant driving current
Color contrast ratio4000:1
Gray Grade16bit
Display Color439, 804, 651, 110
Refresh Frequency (Hz)≥1000
Picture display methodIntellective control technology , test-itself technology , correct technology,
Synchronization Control
Input signalDVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor
converting )
System operatingWINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc.
Front/Rear IP LevelIP45
Working temperature(ºC)-20~+60
Stored temperature (ºC)-30~+80
Operation humidity(RH)0-95%
Display Lifetime(hours)10 years or more( natural environment)
100000 hours( ideal environment)
MaintenanceRear side
Working VoltageAC110 / AC220V±10% 47~63HZ
Out of controlled dot≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the
wave length are both >10% depart to the normal one)





Detailed Images

 Module Detail: Flexible module taking magnetic front service led module, could be maintanence more easily.




Cabinet detail: All cabinet size could be customized.

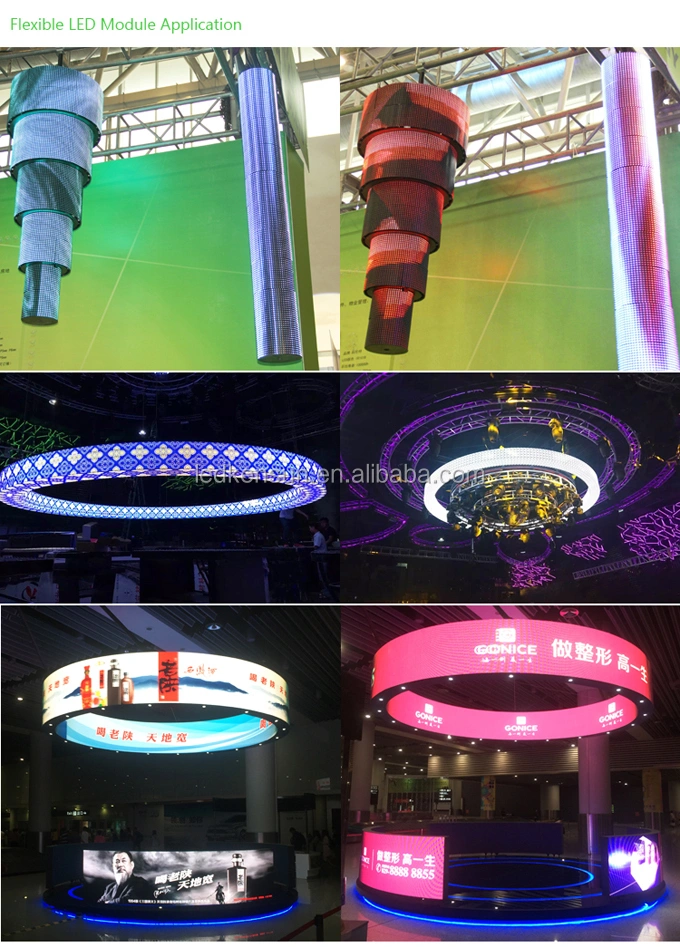

Application:




Production Flow

Product Lines.jpg





Company Information

JINGCAN led factory’s main products areconsist of rental led display, advertising led screen, football stadiumperimeter, stage background video wall, traffic guiding display, special-shapeddisplay like curve and round, led moving light, led Par light, led modules andlaser light, etc. The outstanding features of our led products areenvironmental-friendly, energy-saving and long life-span. All of our LEDproducts have approved by CCC, CE, ROHS, FCC, ISO9001 quality certificatesauthorities. Furthermore, our LED products were exported to more than 90countries till now such as Sweden, USA, Brazil, France, Japan, Thailand, Italy,Australia, Spain and etc. Those LED products were widely used in both indoorand outdoor places like hall, hotel, exhibition room, public square, symbols,building and TV stage background and etc.




JINGCAN LED FACTORY Main LED Display Product Lines - Automatical Machines


Qualification Honor:


LED display Project around the world:




Trade Terms

1.Payment: T/T 30% as deposits before production, T/T 60% balance before delivery

2.Shipping freight are quoted under your requests

3.Shipping port: Shenzhen, Mainland China

4.MOQ:1sqm p7.62 one line english led message signboard

5.Delivery time: 10-15days after receive pre-payment
