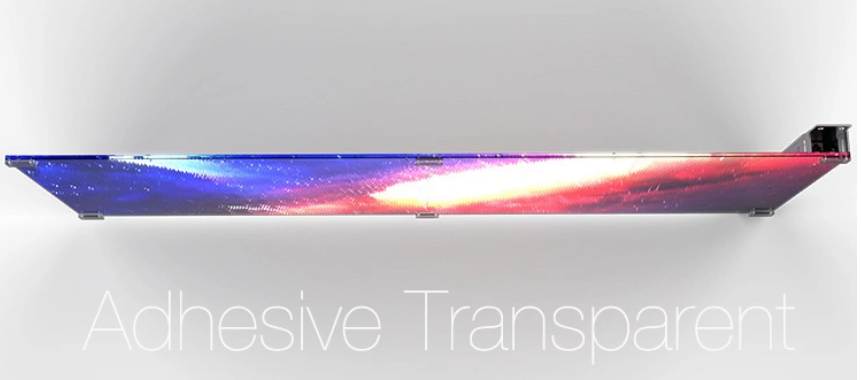

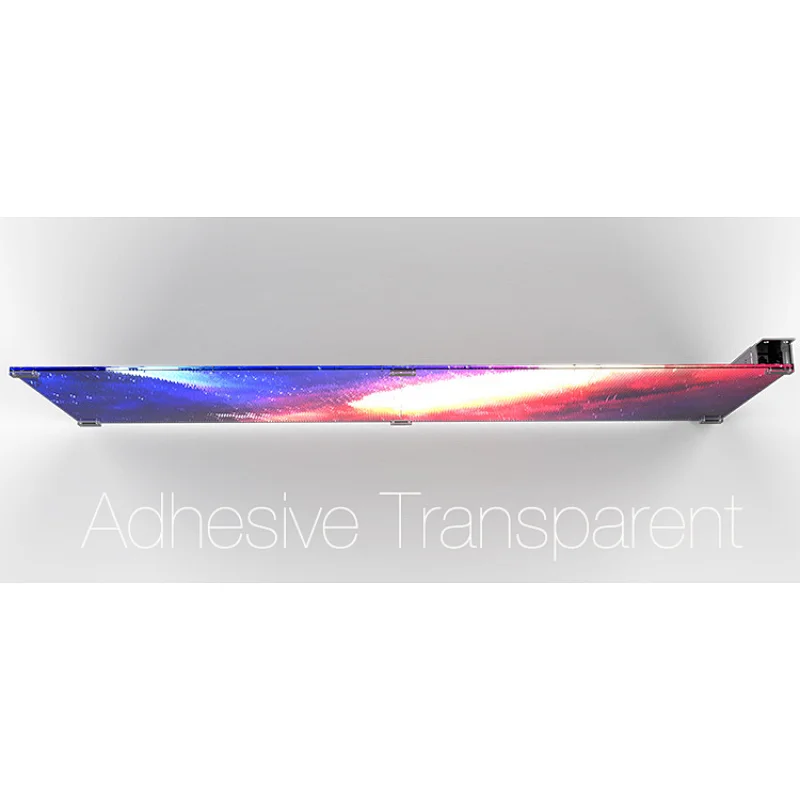

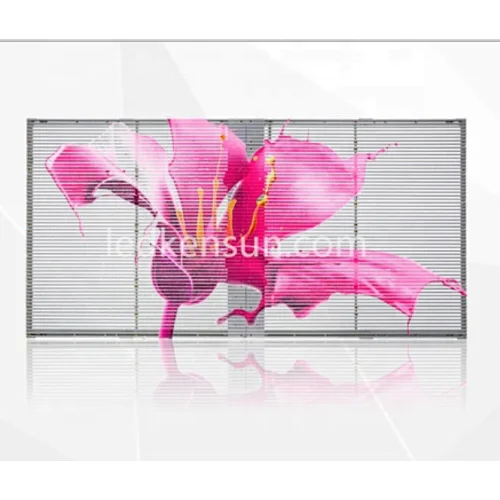

P5-P10 adhesive transparent led display
P5-P10 adhesive transparent led display
P5-P10 adhesive transparent led display
P5-P10 adhesive transparent led display
P5-P10 adhesive transparent led display
P5-P10 adhesive transparent led display
P5-P10 adhesive transparent led display
P5-P10 adhesive transparent led display
P5-P10 adhesive transparent led display

P5-P10 adhesive transparent led display

Model NO.
JC-SMD-P5-P10MM
Price:
US $ 900.00-960.00 / piece
Delivery:
EX-Wshenzhen
Minimum order quantity:
1 piece
Supply Ability:
5000 piece / Month
Country of Origin:
China
Stock Time:
15 Days
Quantity:
Pixel pitch5-10mm
LED configurationSMD2727

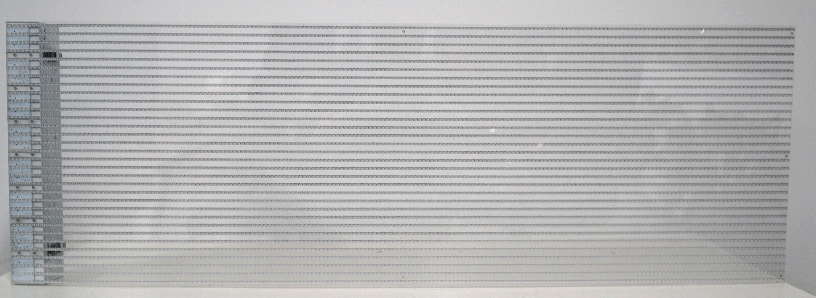

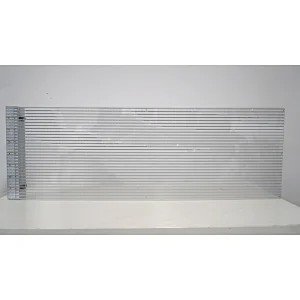

Module size960mmWx320mmHx15mmD
Pixel density(sq.m)18432dots

Pixel resolution

192x32
Port typeHUB75
Brightness≥4500nits
Pixel configuration1R1G1B
Current7.2A
Drive typeconstant drive
Scan Mode1/8 scan


Advantage
1.It is directly attached to the glass without destroying the original structure of the building.

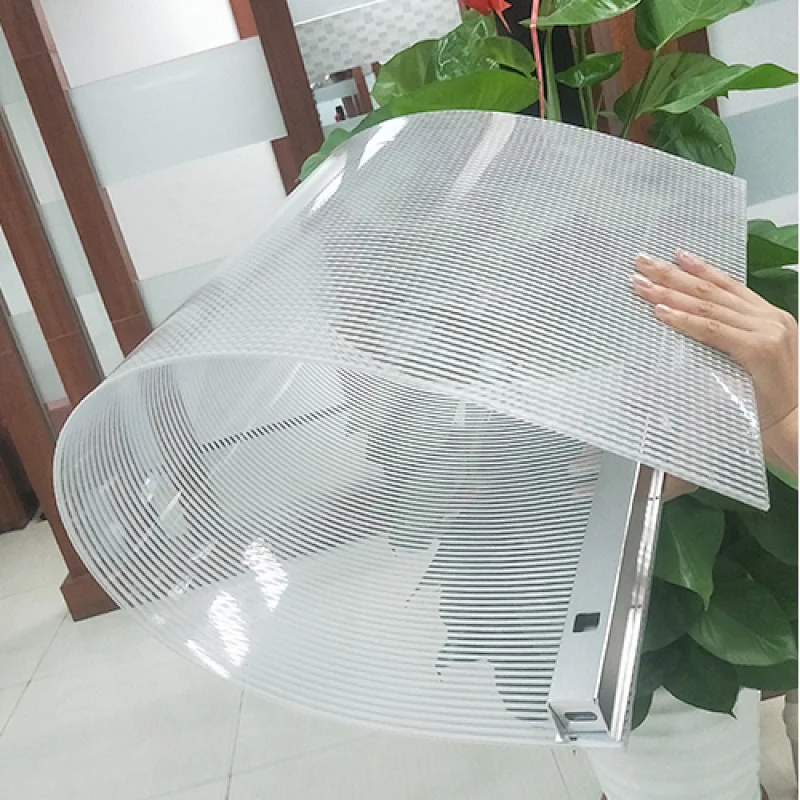

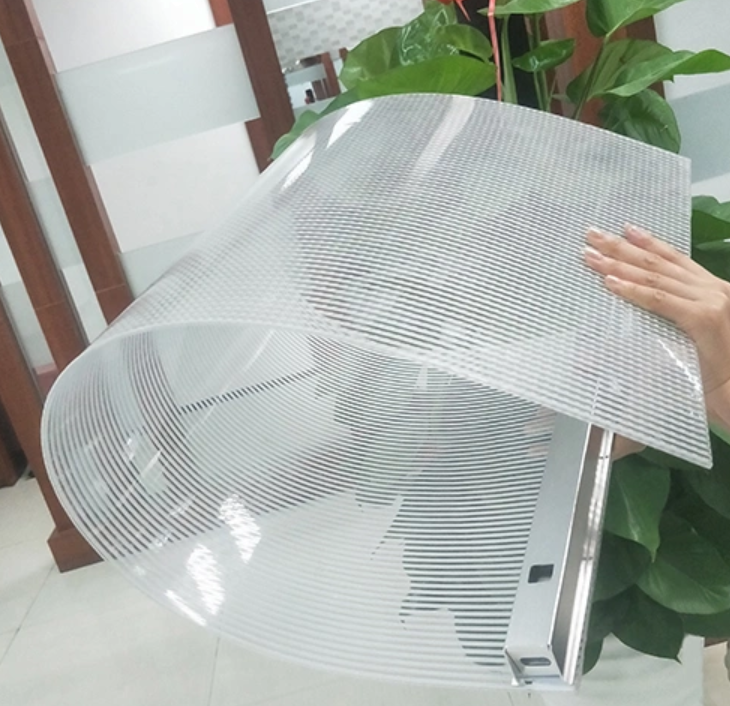

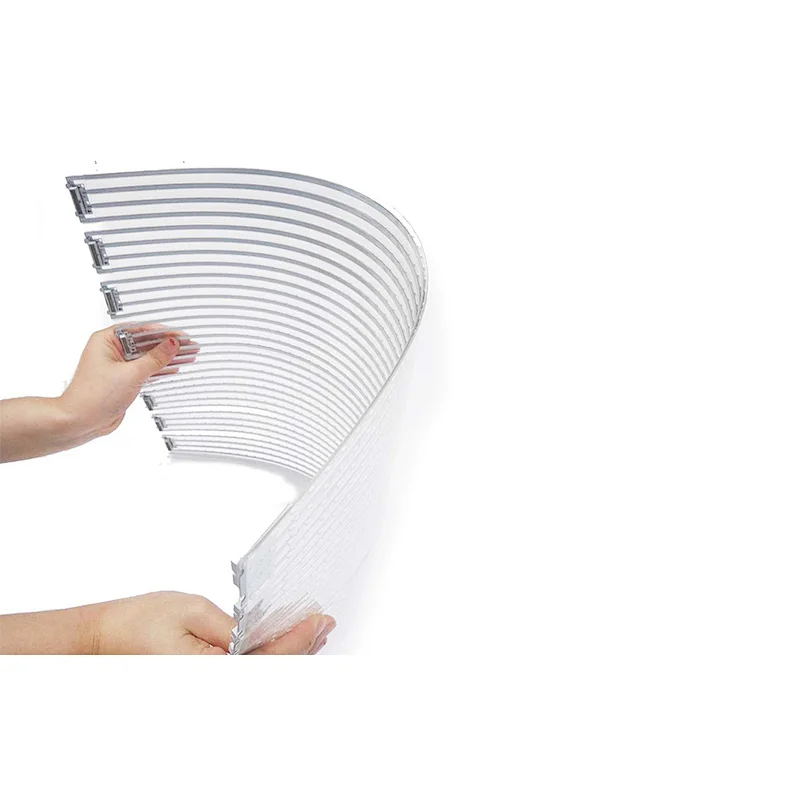

2.It can be pasted on the glass wall of any curvature to form a curved display screen.
3.The transparency is 85%. It does not affect the daily lighting.
4.It is ultra-light. Only 3KG/cabinet. No steel structure is required. It reduces transportation and installation costs.
5. A variety of installation methods can be pasted. Wall installation, suspension.
  • Place of Origin:China
  • Brand Name:JC
  • Model Number:JC-SMD-P5-10MM
  • Usage:Indoor
  • Tube Chip Color:Full Color
  • Display Function:Video
  • Pixels:Other
  • Screen Dimension:Customized
Application

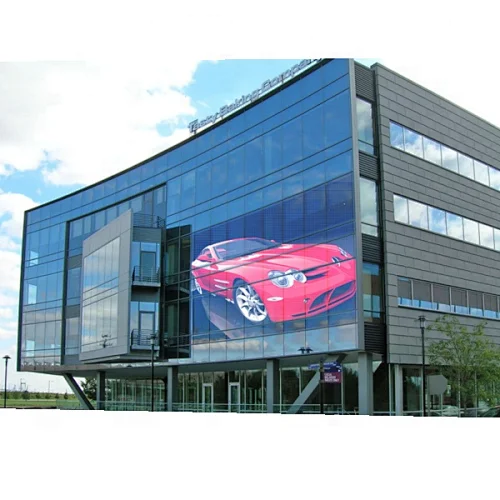

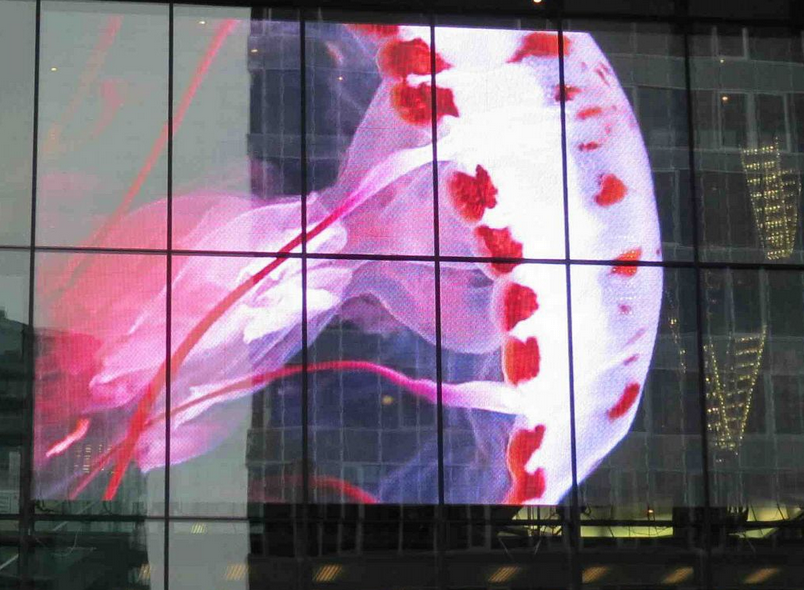

A:Glass building walls:city building,shopping  mall

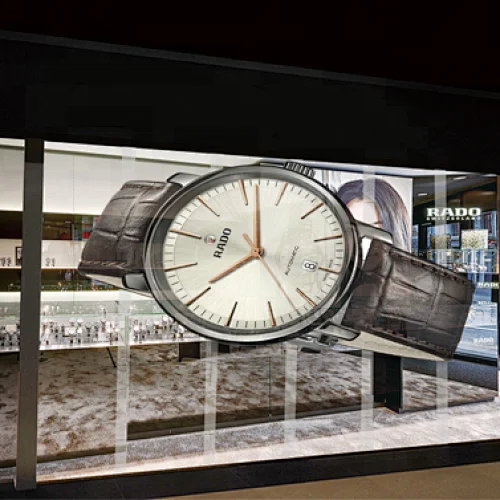

B:Glass window shop:Window shop display,4S auto-shop,Jewelry shop,chian-shop.No man supermarket,etc.
C:Telecom finance:Shop of Mobile,Unicom,Telecom,Banking,etc.
D:Transportation hub:High-speed rail station.airport,subway station,light rail,car shop,etc.
E:Glass guardrail:Airport guardrail, mall guardrail, high-speed rail guardrail,building interior guardrail.
