P10 Outdoor smd Front Service LED Display Sign Specification: Description | Technical parameter |

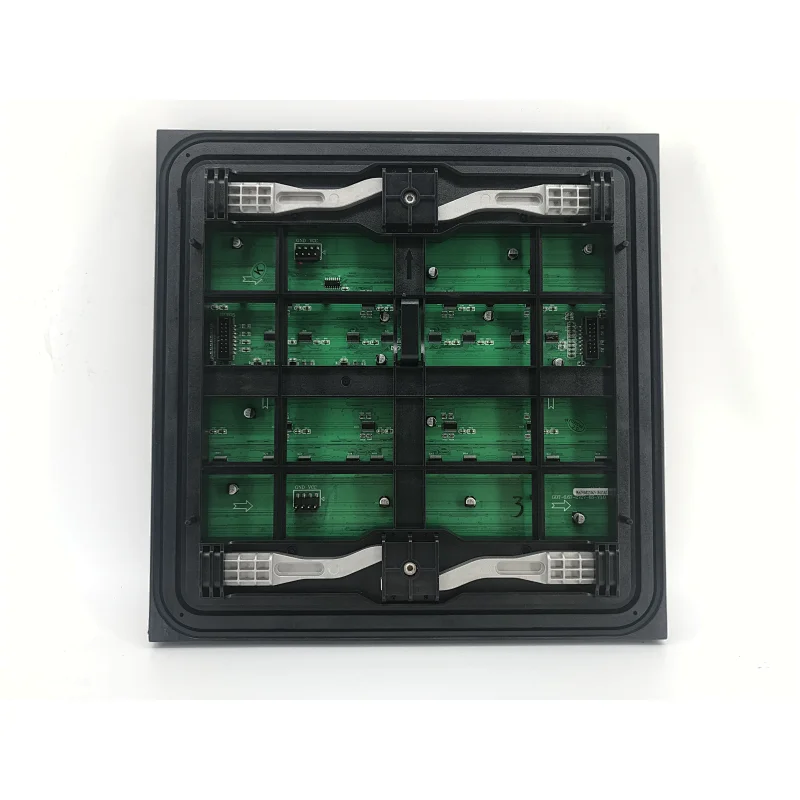

Unit module | Module size | 320*320mm |
Pixel pitch | 10mm |
Pixel density | 10000dots/sqm |
Pixel configuration | 1R1G1B |
Led specification | Φ3ellipse |
Pixel resolution | W:32dots*H:32dots |

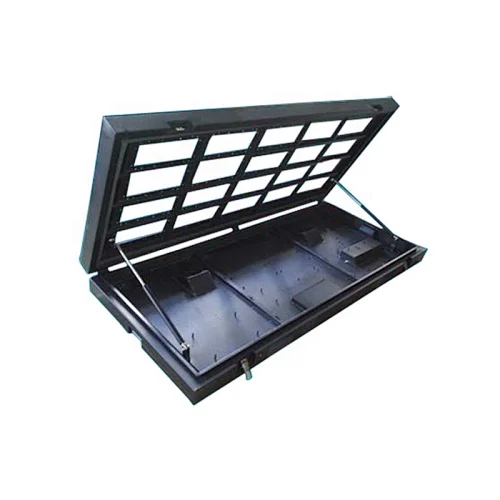

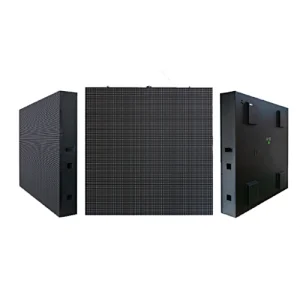

Cabinet | Cabinet size | 960mmx960mmx110mm |
Weight | 38kgs |
IP rate | IP65 |
Material | Steel cabinet |
Power | Input voltage | AC90-240V |
Brightness | ≥6500nits |
Power consumption | MAX 860W; AVE300W |
Power supply | 300W 5V 40A |

P10 Outdoor smd Front Service LED Display Sign Features:

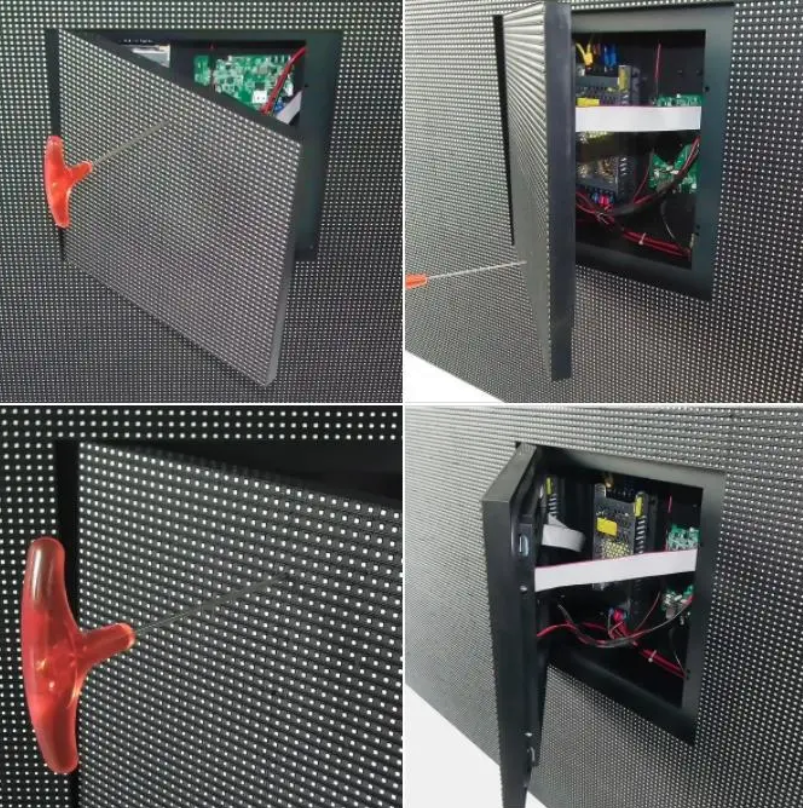

1. Dual-maintenance, from both the front side and the rear side. People usually use its front maintenance function.
2. Easy maintenance, easy to disassemble the modules with a hexagonal screwdriver.
3. No screws, easier to disassemble the modules and mount the modules on the cabinet.
4. 10mm pixel pitch is suitable for small banner screen.

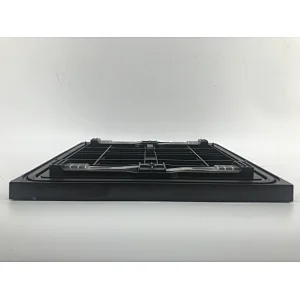

5. New plastic cover with new mold, smaller module gaps and better screen flatness.
