Huidu HD-R501E R501 series receiving card for full color led display synchronous control system

Model NO.
R501
Quantity:
  • Place of Origin:CN;GUA
  • Application:led display
  • Color:full color

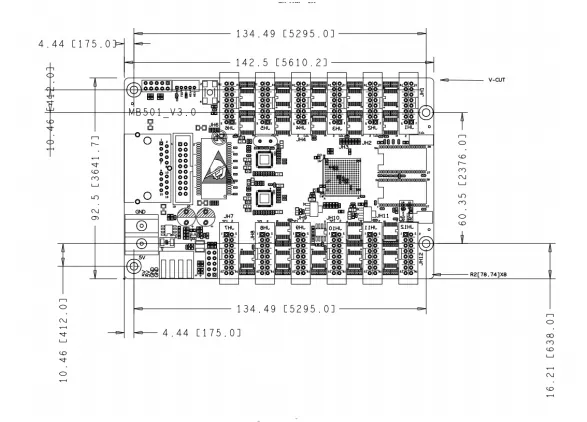

  • Panel Size:142.5mm*92.5mm
  • Pixel Pitch:unknown
  • Model Number:R501
  • Brand Name:Huidu
  • Application:led display
  • Product name:HD-R501
  • Certificate:CE ROHS FCC
  • Function:Receiving card

Quick detail:

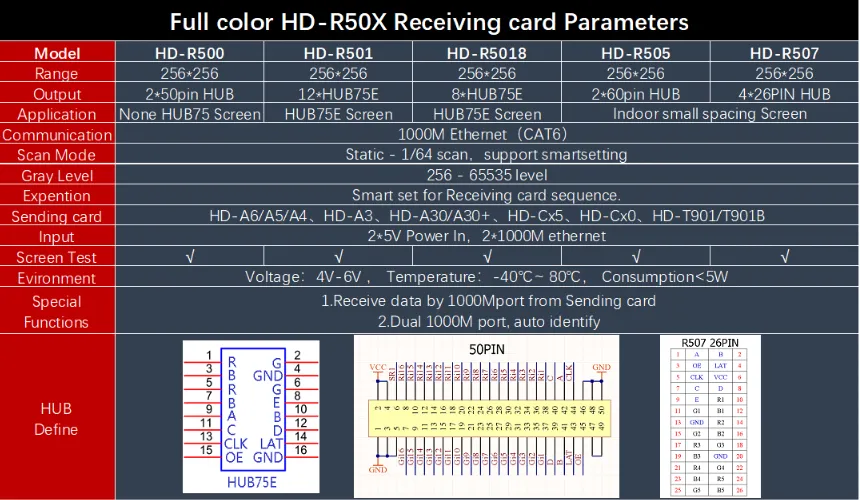

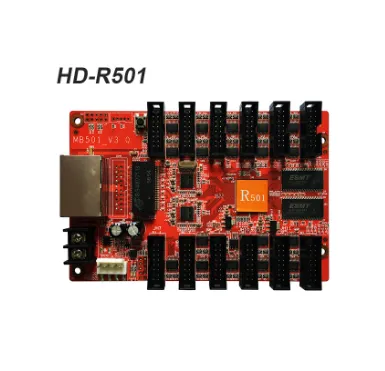

Product description:

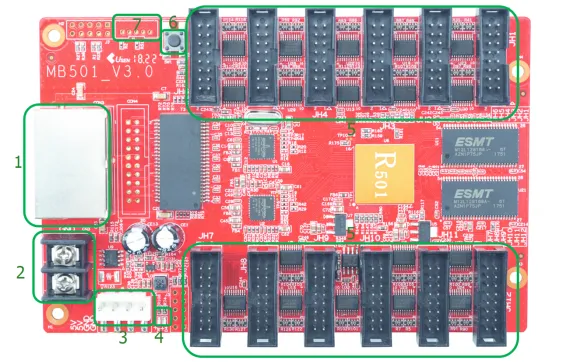

1 :Gigabit Ethernet port, used to connect the player box or another receiving card, the same two network ports are interchangeable; 2 :Power interface, can be accessed with 4.5V ~ 5.5V voltage;

3 :Power interface, can be accessed with 4.5V ~ 5.5V voltage;( , 2 3 connect one of them is ok.)

4 :Light D4 normal working state is blinking, indicating that the control card normally running; Light D6 normal working state is blinking faster, indicating that Gigabit has been identified, is receiving data.

5 :12 group of HUB75E, to connect with screen connector.

6 :Test button, after adjusting the screen, once click each time, screen will show followed by red, green, blue, white, slash test .(If the configuration parameters saved on the card and the screen matched, need unplug the network cable, then the test button will work)

7 :External indicator light, run light and data light.

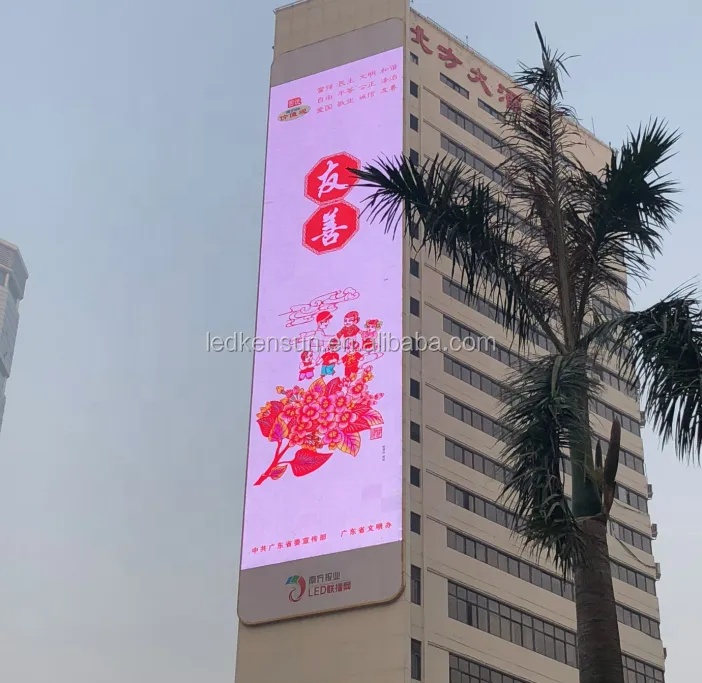

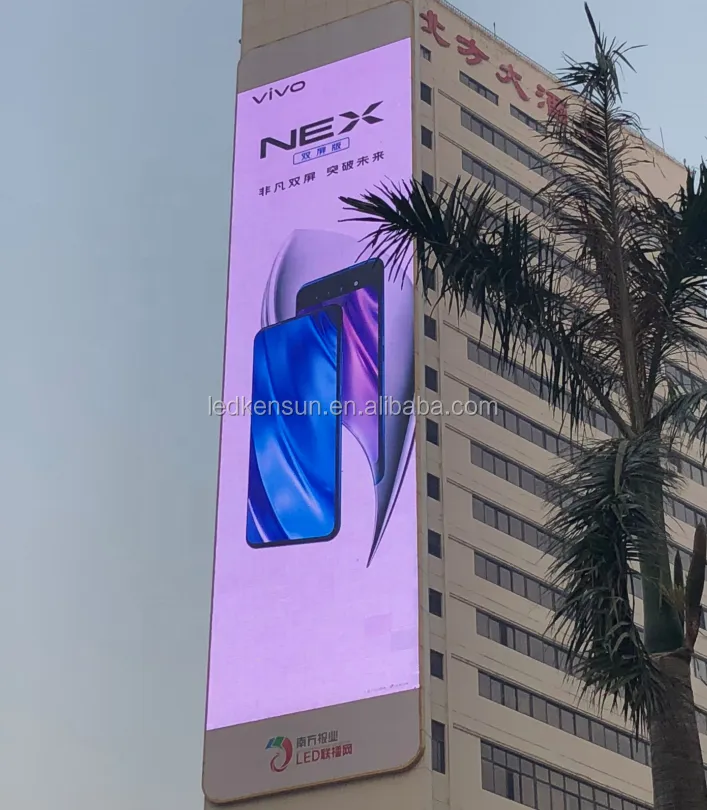

Project:
