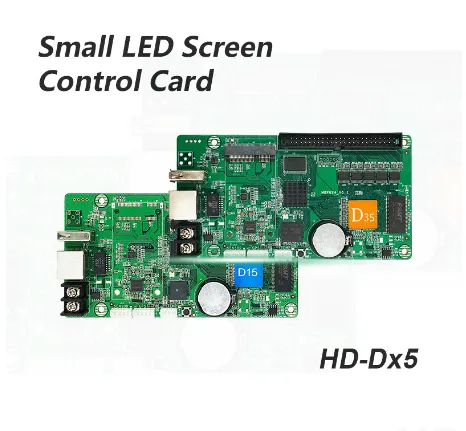

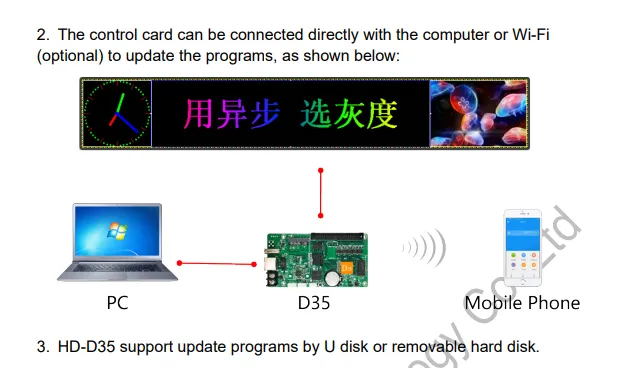

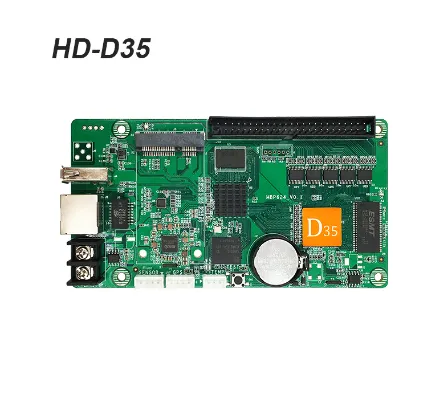

HD-D35 Full Color Asynchronous Controller System is a LED control system that supports mobile APP control, Web remote control and offline play HD Video. Supporting computer control software HDPlayer, mobile phone control software LedArt and HD technology clouds management platform. HD-D35 can play offline with on-board 4GB storage space which is for storing program files.
1. Support all kinds of door full-color module,
2. Control Range:1024*64,
3. Support 256~ 65536 gray level,
4. Support the word art, animation background, neon light effect,
5. U-disk unlimited expansion program, plug in broadcast,
6. No need set IP, HD-D35 could be identified by controller ID automatically,
7. Support 3G/4G/Wi-Fi/ and network cluster management remote management,
8. Support 720P video hard decode, 60Mhz frame rate output.

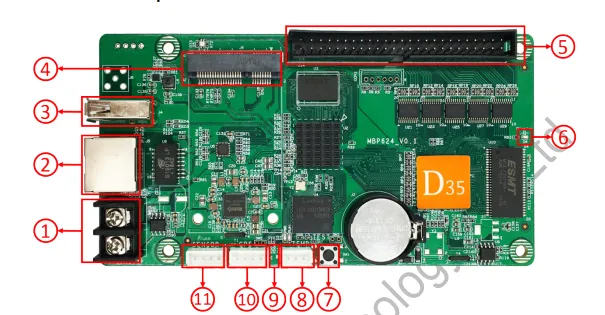

1. Power terminal, connect 5V DC power,
2. RJ45 network port, and the computer network port, router or switch connected to the normal working state is orange light is always on, green light flashes,
3. USB port, connected to USB device for update programs, e.g. U-disk, Mobile hard disk, etc,
4. MINI PCIE port: connect 3G/4G module or WIFI module (optional),the rear if for insert SIM card,
5. 50 PIN HUB: Compatible with a variety of HUB boards,
6. Display light (Display), normal working state is flashing,
7. Test button: for test the brightness and contrast of the display screen;
8. Temperature Sensor port: for connect to Temperature,
9. Power light and running light: D1 is running light, D2 is power light, normal working state: power is always on, run flashes,
10. GPS port:for connect to GPS module, use for time correction and fixed position,
11. Sensor Port:for connect external sensor.
