Model NO.
JC-FSI-PH3MM
Quantity:
  • Place of Origin:CN
  • Application:rental
  • Color:full color
  • Panel Size:192mm*192 mm
  • Pixel Pitch:3mm
  • Model Number:JC-FSI-PH3MM
  • Brand Name:JC
  • Pixels:Hot sale HD indoor full color rental led display
  • Screen Dimension:576mmx576mm
  • Chip Color:Full colour
  • Brightness:1000nit
  • IP rate:IP45
  • Weight:35KG/SQM
  • Configurations:1R1G1B
  • LED type:SMD2121
  • Density:111111 pixels/sqm
  • Gray scale per color:65536 levels





indoor full color hd super slim die casting P3 led rental led display / video wall / board



Quick Details:



1, Full black LED Chips;

2, Sum sery LED driver IC;

3, LED Source: SMD2121

4, LED Module Size: 192mm x 192mm;

5, LED Cabinet Size: 576mm x 576mm x 70cm;

6, Contrast Ratio: 4000:1;

Product Description



1, 4000:1 high contrast ratio ensure a vivid and real and natural color display;

2, Stable quality: extrusion aluminum LED display is of high quality for frequent movement from one site to next;

3, Ultra light weight: Utilizing extrusion aluminum LED cabinets;

4, Ultra slim: Rental LED display is designed at 65mm thickness;

5, Easy handling: With ultra light weight and fast lockers features, the LED cabinet can be easily assembled and dismantled by one single person;

6, Full black LED chips together with high refresh frequency,high grey grade features makes P3 indoor rental LED screens color is soft for people's eye, comfortable to watch.

Specification
LED MODULE PARAMETER
Pixel pitch (mm)3mm
Pixel configuration3 in 1
EncapsulationSMD2121
Colors matches6:3:1
Module resolution (pixels)64 x 64
Module pixel4096
Module size (mm)192 x 192
LED CABINET SPECIFICATION
Cabinet size (mm)576x 576 x 80
Cabinet resolution (pixels)192 x 192
Cabinet pixels (pixels)36864
Cabinet materialDie-casting Al-cabinet
Cabinet weight (kg)12 kg
LED DISPLAY SPECIFICATION
Pixel density(pixel/m2)111111
Brightness(cd/m2)≥1000 (adjustable)
Brightness adjusted100 grade by software or by Auto-optic induced
View angleHorizontal 140°; Vertical 140°
Best viewing distance (m)≥2m
Communication distance(m)<100meter by Internet Cable(without Relay; Multi mode fiber cable < 500m;
Single mode fiber cable < 20km
Display work method1/32 Scan
LED driving methodConstant driving current
Color contrast ratio4000:1
Gray Grade16bit
Display Color439, 804, 651, 110
Refresh Frequency (Hz)≥1000
Picture display methodIntellective control technology , test-itself technology , correct technology,
Synchronization Control
Input signalDVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor
converting )
System operatingWINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc.
Front/Rear IP LevelIP45
Working temperature(ºC)-20~+60
Stored temperature (ºC)-30~+80
Operation humidity(RH)0-95%
Display Lifetime(hours)10 years or more( natural environment)
100000 hours( ideal environment)
MaintenanceRear side
Working VoltageAC110 / AC220V±10% 47~63HZ
Out of controlled dot≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the
wave length are both >10% depart to the normal one)





Detailed Images




















Production Flow

Product Lines.jpg





Packaging & Shipping

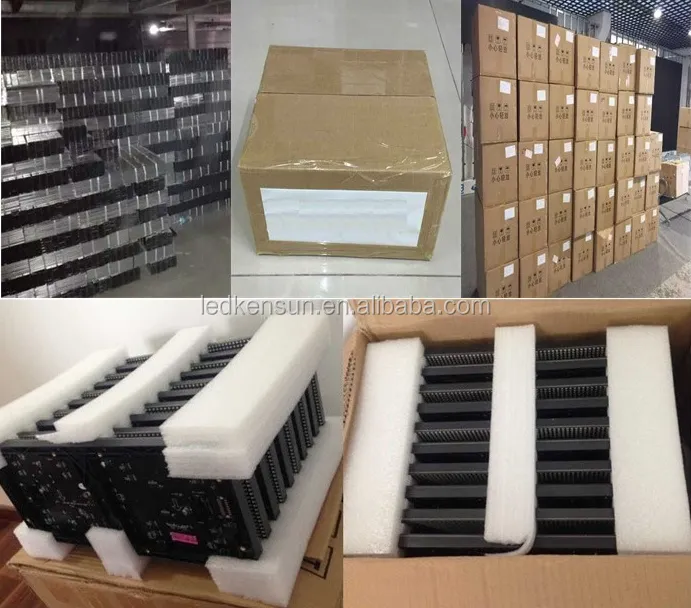

1. Firstly, we will use foam wrapped the modules and 40pcs module will be in one carton.

package 01

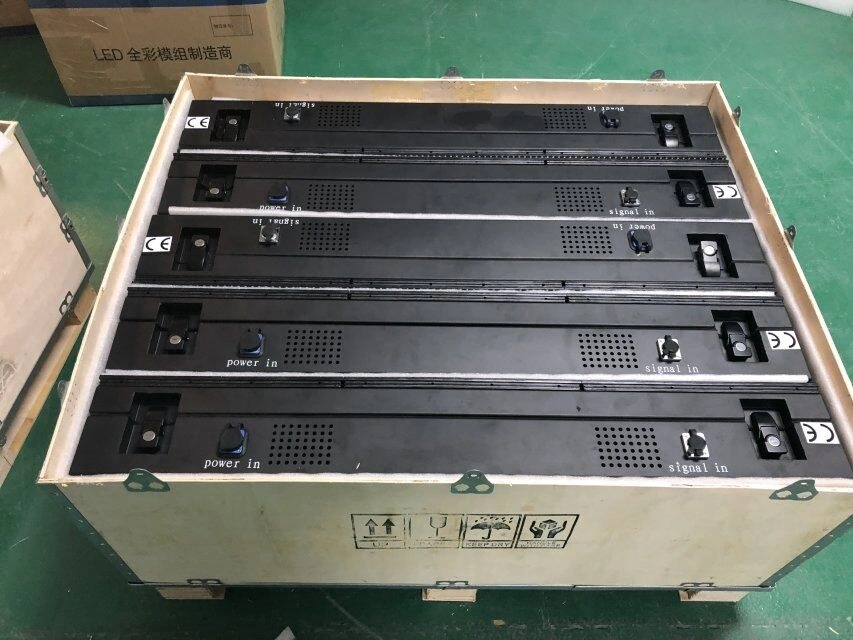

2. Secondly, we also provide wooden case for our clients for fixed installation would be fine.

package sample.jpg

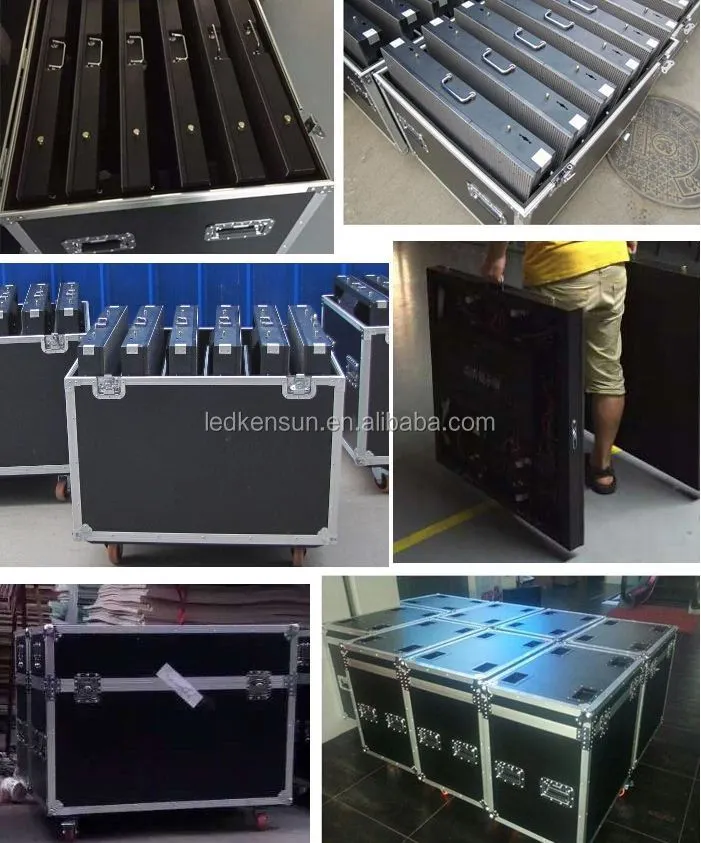

3. Thridly, we also could provide flight case for our clients, it uauslly used in rental moving events.

P3 LED cabinet - Flight Case Package



All package could be customized size according to your requirements.



Meanwhile, we sold our products more than 150 countries over 7 continents, and we have a long-term cooperation with UPS, DHL, Fedex etc, air shipping, sea shipping etc.






Trade Terms

1.Payment: T/T 30% as deposits before production, T/T 60% balance before delivery

2.Shipping freight are quoted under your requests

3.Shipping port: Shenzhen, Mainland China

4.MOQ:1sqm p7.62 one line english led message signboard

5.Delivery time: 10-15days after receive pre-payment
