New technology innovation 2020 P2.5 P3 P4 indoor flexible curved led display screen curtain magnetic led display module

Model NO.
JC-FSI-PH2.5MM
Quantity:
  • Place of Origin:CN
  • Application:advertising
  • Color:full color
  • Panel Size:240mm*120mm
  • Pixel Pitch:2.5mm
  • Model Number:JC-FSI-PH2.5MM
  • Brand Name:JC
  • Pixels:P2.5mm Stage rental screen round led display
  • Usage:Indoor
  • Brightness:1000nit
  • IP rate:IP43
  • Weight:35KG/SQM
  • Configurations:1R1G1B
  • LED type:SMD1515
  • Density:160000 pixels/sqm
  • Certificate:CE ROHS FCC
  • Module size:240mm*120mm

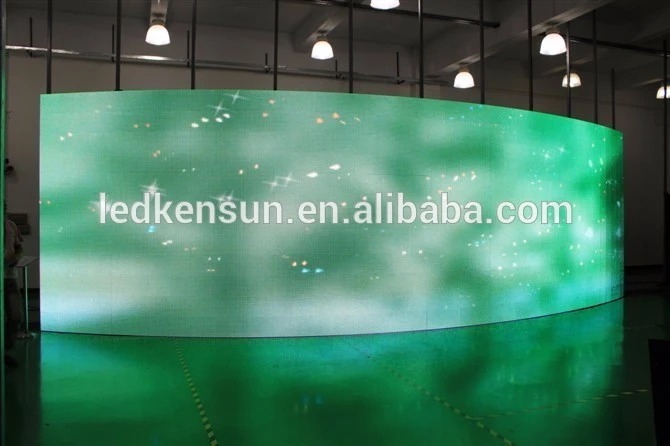

P2.5mm rental curved round led display

Quick Details



1.  P2.5 Stage rental led display module size:240mm*120mm

2. Brightness:1000cd/sqm

3. Pixel density:160000dots/sqm

4. Average Power:185w/sqm

5. IP rate: IP43

6.Design life:100000hours

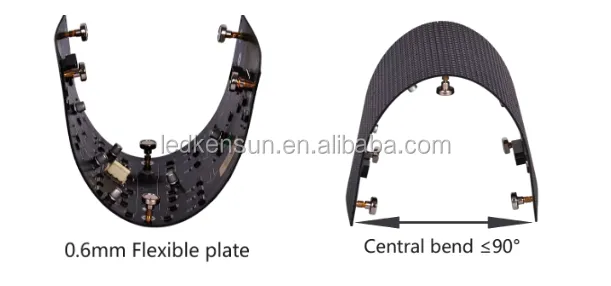

 Module detail:

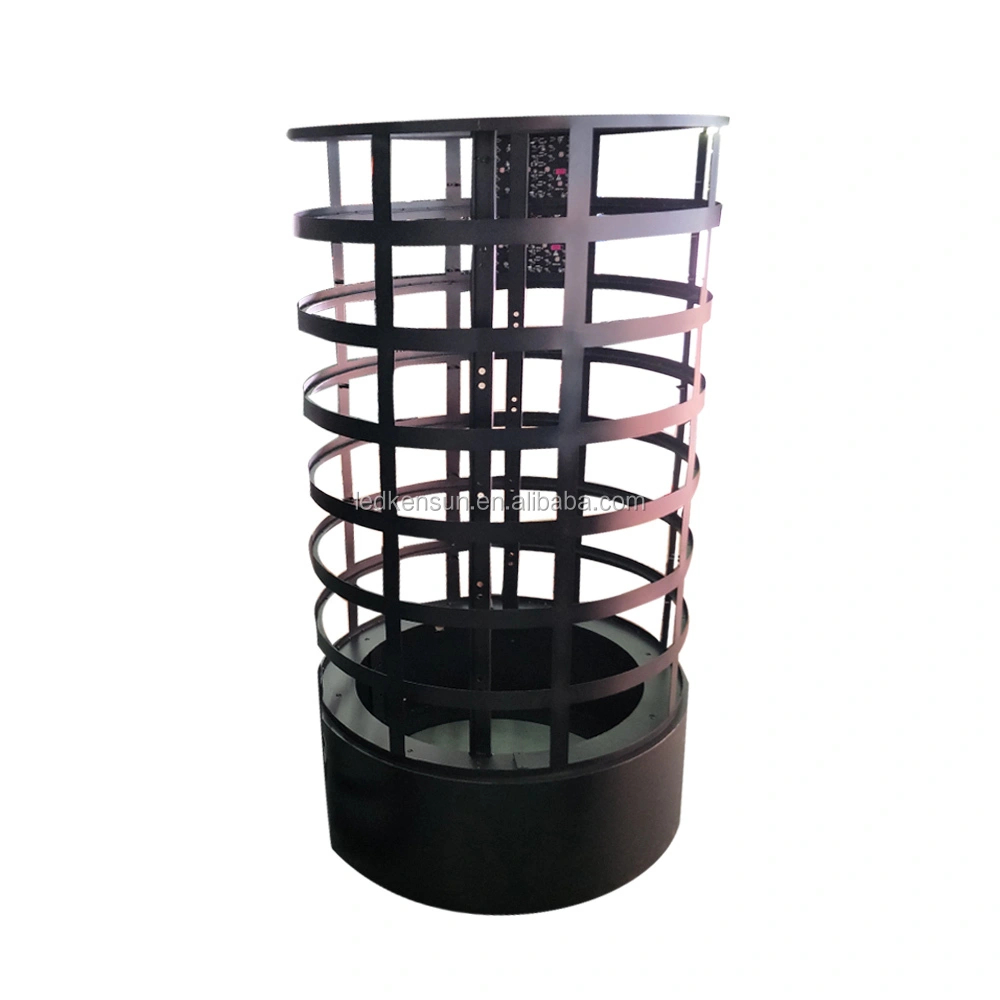

Cabinet detail:

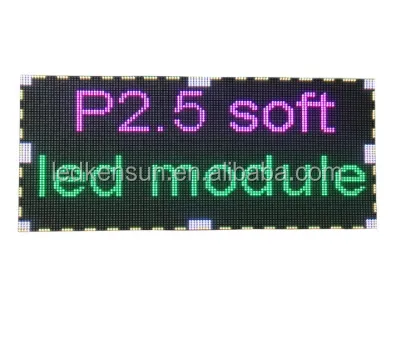

soft led module 9

Feature and Advantage



1.High brightness Contrast:4000:1, which is a very high level to ensure a vivid image of our LED display screen system

2. First-class LED chip: Supplied by Cree & other high strictly selected LED chip to ensure the long lift-time and high brightness of our LED display screen system

3.Clear vivid image quality even in direct, full-on sunlight to ensure you attracts more audience to get short ROIof  your LED display screen's investment.

4.Long-term Brightness:More 7000-nit brightness(for outdoor full color)(2000 nits brightness for indoor full color)capacity throughout product lifetime of the LED display screen.

5.Easy Installation & Using: easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED display screen system

6.Convenient Servicing: Front and rear cabinet access make the maintance work very convenient and low cost to help you concentrate more time and energy on your main marketing promotion business.



Our service



1.Your inquiry related to our products or price will be replied in 24hrs

2.OEM&ODM,any your customized lightings we can help you to design and put into product

3.Distributoership are offered for your unique design and some our current models

4.Protection of your sales area,ideas of design and all your private information

5.Top Quality+Reasonable Price+Responsible After Service=Successful & Win

6. Export countries :  Peru,  Mexico, Colombia, Turkey, US, UK, etc.



Trade Terms



1.Payment: T/T 35% as deposits before production, T/T 65% balance before delivery

2.Shipping freight are quoted under your requests

3.Shipping port: Shenzhen, Mainland China

4.MOQ:1sqm

5.Delivery time: 10-15days after receive pre-payment



LED Screen Parameter



Description

Technical parameter

Unit module

Module size

240*120mm

Pixel pitch

2.5mm

Pixel density

160000dots/sqm

Pixel configuration

1R1G1B

Led specification

smd1515

Pixel resolution

W96:dots*H:48dots

Cabinet

Dimension

480mm*480mm*100mm

Quantities of module

8pcs

Power supply

1pcs

Thermal discharge

Fan*2pcs

Total weight

12kg

Best viewing distance

3-150m

Temperature

Storage: -35°C~+85°C

Working: -35°C~+85°C

Thickness

12cm can adjustable

Remarks: cabinet size can changed, upon project need.

Power

Working voltage

AC220V/110V±10%

Average power consumption

300-400W

Max. Power consumption

≤1000W/sqm

Current

≤20mA(single LED)

Control system

CPU

Pentium4 or above

Operating system

WIN98/2000/NT/XP

Control method

Synchronization

Main technical parameter

Driving device

1/24  scanning

Drive type

Constant Current driver IC

Refresh frequency

≥400Hz

Grey scale/colors

256 levels of each color(R/G/B)/16.7M color

Brightness of white balance

More than 8000cd/sqm

Brightness adjustment

256 levels of each color(R/G/B)by software

Operating ambient humidity

10%--95%

Video signal

PAL/NTSC

Control system

DVI display card+full color controller card

MTBF

≥10,000hours

Life span

≥100,000hours

Flatness

Tolerance of interpixel ≤0.3mm

Tolerance of modules clearance≤0.6mm

Power switch

Automatic switch

Display mode

1024*768

Software

LED media player

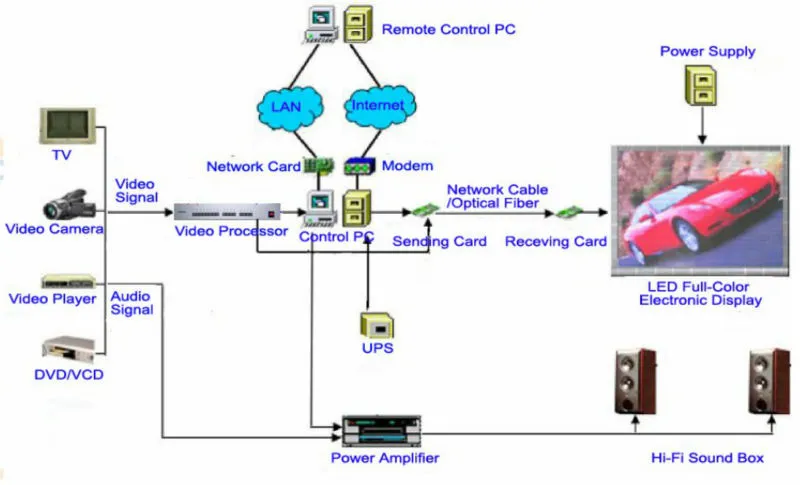

LED Control system diagram




LED display certificates



2015-12-12 4.19.42.png

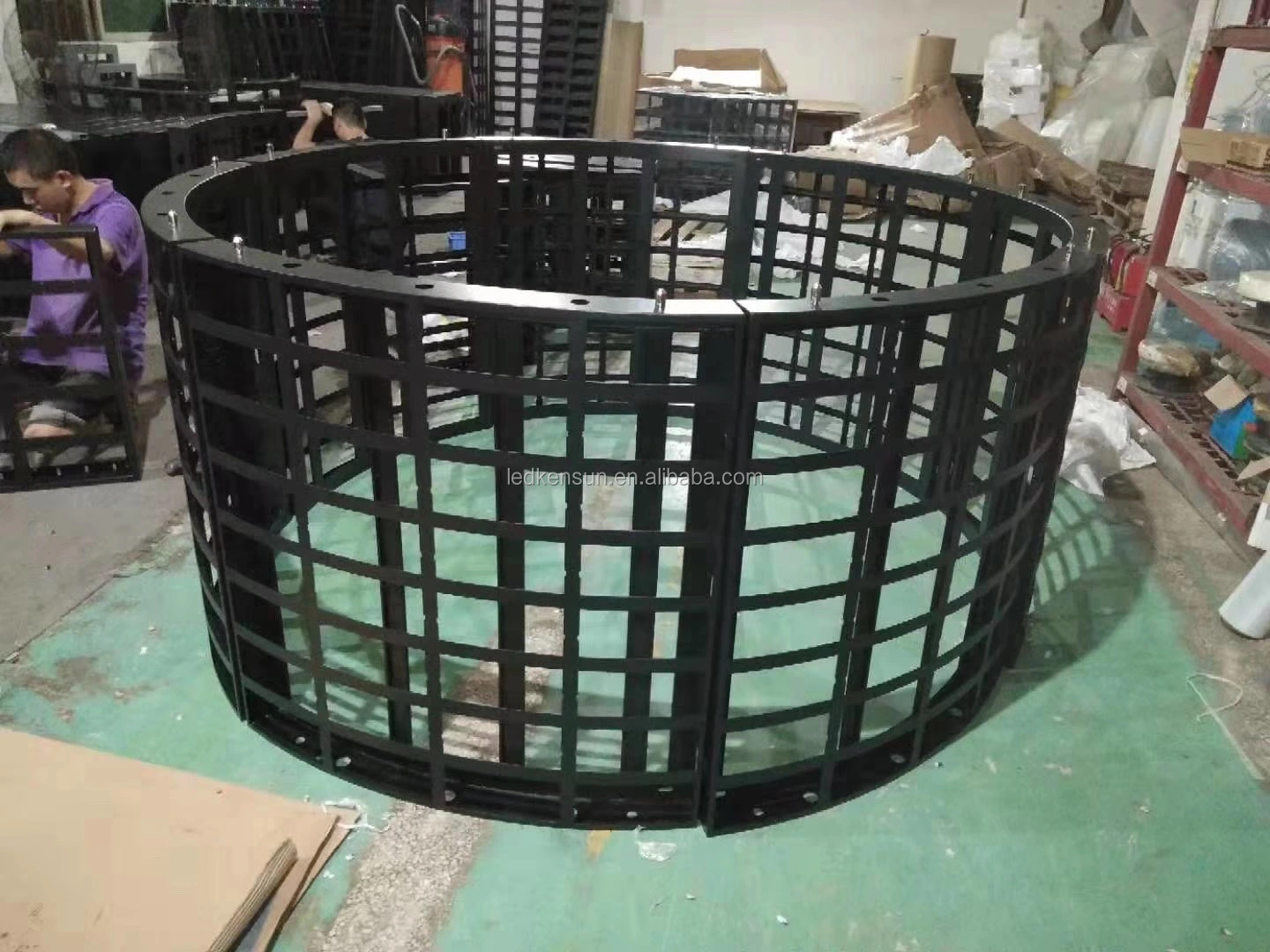

P2.5 full color indoor high resolution round led screen  working factory:

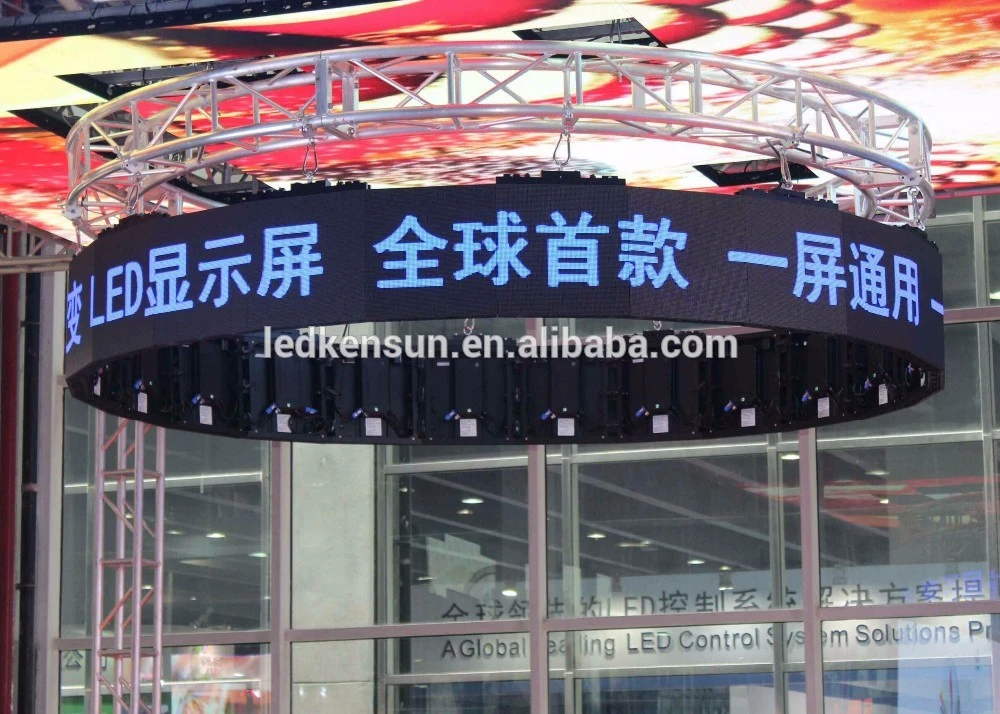

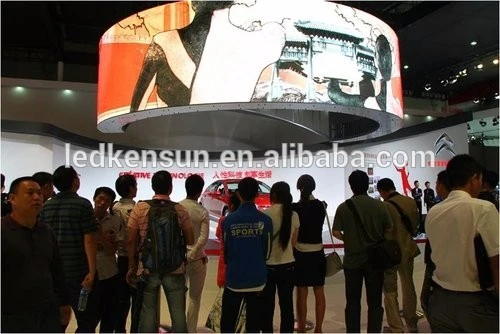

Round LED display application environment:









FAQ

1. How can I place an order?
Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. For designing or further discussion, it is better to contact us with Skype/email /phone, in case of any delays.

2. What kind of display we provide?
We have indoor/outdoor/led curtain/mobile LED /rental LED display /LED stage/LED Dance Floor/Irregular LED display for you choose.

3. What about the lead time for order?
Always: 3-20 days, as your order quantity, sometimes we have stock, can delivery within 5 days

4.How about the warranty ?
We have two years warranty.
