VDwall LVP609/ LVP609-2 4K resolution ultra HD video processor with 4 DVI outputs for small pixel led display
VDwall LVP609/ LVP609-2 4K resolution ultra HD video processor with 4 DVI outputs for small pixel led display
VDwall LVP609/ LVP609-2 4K resolution ultra HD video processor with 4 DVI outputs for small pixel led display
VDwall LVP609/ LVP609-2 4K resolution ultra HD video processor with 4 DVI outputs for small pixel led display
VDwall LVP609/ LVP609-2 4K resolution ultra HD video processor with 4 DVI outputs for small pixel led display
VDwall LVP609/ LVP609-2 4K resolution ultra HD video processor with 4 DVI outputs for small pixel led display
VDwall LVP609/ LVP609-2 4K resolution ultra HD video processor with 4 DVI outputs for small pixel led display
VDwall LVP609/ LVP609-2 4K resolution ultra HD video processor with 4 DVI outputs for small pixel led display
VDwall LVP609/ LVP609-2 4K resolution ultra HD video processor with 4 DVI outputs for small pixel led display
VDwall LVP609/ LVP609-2 4K resolution ultra HD video processor with 4 DVI outputs for small pixel led display
VDwall LVP609/ LVP609-2 4K resolution ultra HD video processor with 4 DVI outputs for small pixel led display
VDwall LVP609/ LVP609-2 4K resolution ultra HD video processor with 4 DVI outputs for small pixel led display
VDwall LVP609/ LVP609-2 4K resolution ultra HD video processor with 4 DVI outputs for small pixel led display

VDwall LVP609/ LVP609-2 4K resolution ultra HD video processor with 4 DVI outputs for small pixel led display

Model NO.
LVP609-2
Quantity:
  • Place of Origin:CN;GUA
  • Brand Name:VDWALL
  • Model Number:LVP609-2
  • Power:25W
  • Frequency Range (Hz):no
  • Dimension (L x W x H):no
  • Product Name:LVP609-2 led VIDEO PROCESSOR
  • Application:led display
  • Certificate:CE ROHS FCC
  • Weight:6.5 kg
  • Warranty:1 Year
  • Voltage:AC110~240V
  • Control mode:RS232/USB/LAN/WIFI/Infrared
  • MOQ:1 Piece

A: Main Feature:



1. Faroudja® Real Color® Real Color Image Processing,10+ Bit Faroudja® DCDIDe-interlacing Processing,Faroudja® TureLife™Augmented Video and Image

2. Advanced interlacing Processing Technology for mobile images,smear ghost and jag in the mobile images can be removed.

3. Fast processing for ultra 4K2K@60Hz HD images via hardware

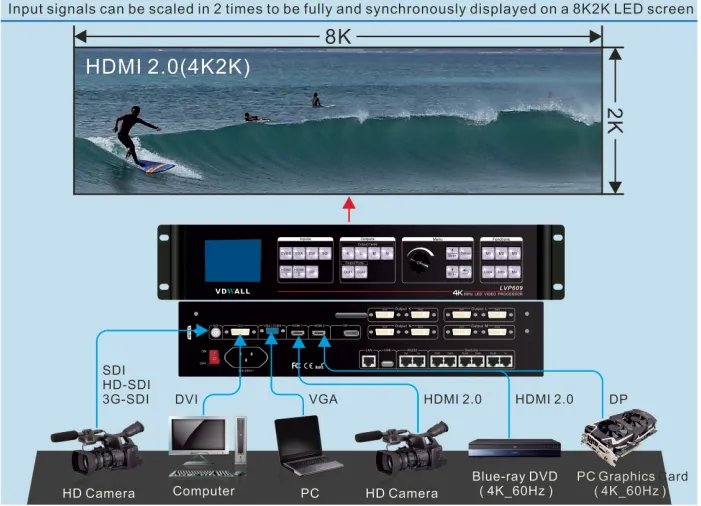

4. Real Pole-definition video processor. Single HDMI port can receive 4k2k@60Hz pole-definition signal. After sync processed in processor , It would output 4*1920x1080_60Hz windows showed on the 4K2K_60Hz screen pixel to pixel. Or any interception, stepless zoom in and zoom out for any LED screens with any resolution. There is no need for complicated software setup.

5. It supports fully spare, and it offers a safe and steady solution for high-reliability-backup

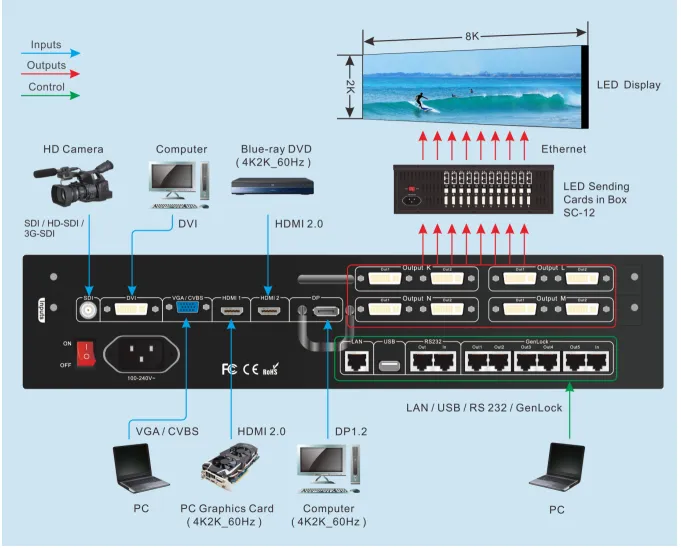

6. Outputs:Ultra HD+HD+SD,Analog+Digital,among which:HDMI2.0(4K2K@60Hz)x 2,DP x 1,CVBS x 1,

VGA x1, DVI x 1, SDI / HD-SDI x 1,Seamless Switching, Fade-in / Fade-out between any inputs.

7. Outputs:8*DVI HD outputs. Each output port can reach 1920*1080_60Hz

8. Sync monitoring 4K2K@60Hz windows on 1080p display

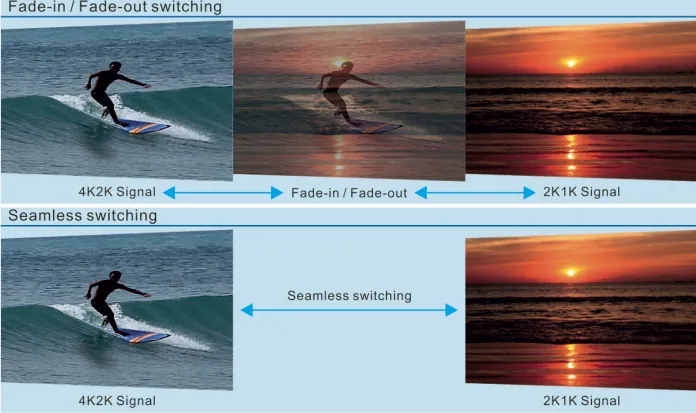

9. One key to any of the preset modes,and any mode of the seamless switching, Fade-in / Fade-out can be freely called

10 It is easy and convenient to set up by the front panel or RS232/USB/LAN interface.

 11.Compatible with all full-color synchronous control systems on the market








B: Application:

Large venue display application such as:Rental Performacne,TV broadcast center,Stage Enterainment&Theater,High-end Meetings&Exhibitions etc.





Packaging & Shipping

Packaging:

Usually, there are three tyeps of package design.

Firstly, we pack the LED display in the paper carton.



package 01



Secondly, we will pack the LED display in the flight case if  customer request for frequent movement.




Thirdly, the favorable package method is wooden case package because of its lower cost and instant usage.


Note: It also could mark the brand as clients requirement.

Shipping:

We could provide air shipping, sea shipping and international Express according to clients needs.
