Model NO.
HD-D35
Quantity:
  • Place of Origin:CN;GUA
  • Application:led display
  • Color:full color
  • Panel Size:142.01mm*73.99mm
  • Pixel Pitch:unknown
  • Model Number:HD-D35
  • Brand Name:huidu
  • Application:LED DISPLAY
  • Product name:Huidu-D35
  • Certificate:CE ROHS FCC
  • Control system:Asynchronous

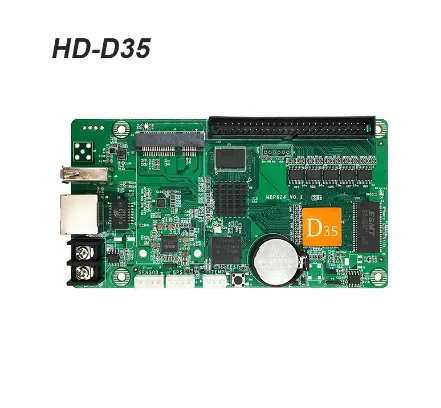

Product description:

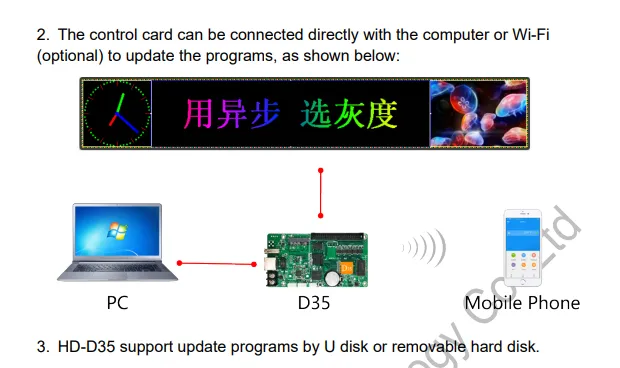

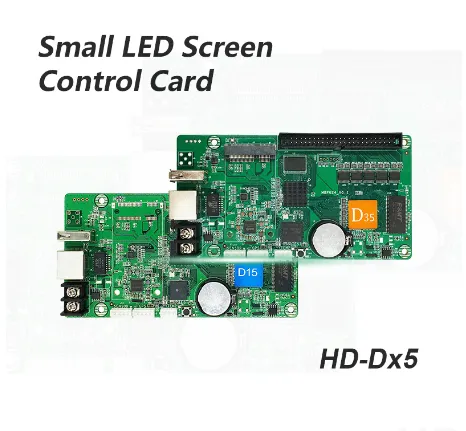

HD-D35 Full Color Asynchronous Controller System is a LED control system that supports mobile APP control, Web remote control and offline play HD Video. Supporting computer control software HDPlayer, mobile phone control software LedArt and HD technology clouds management platform. HD-D35 can play offline with on-board 4GB storage space which is for storing program files.

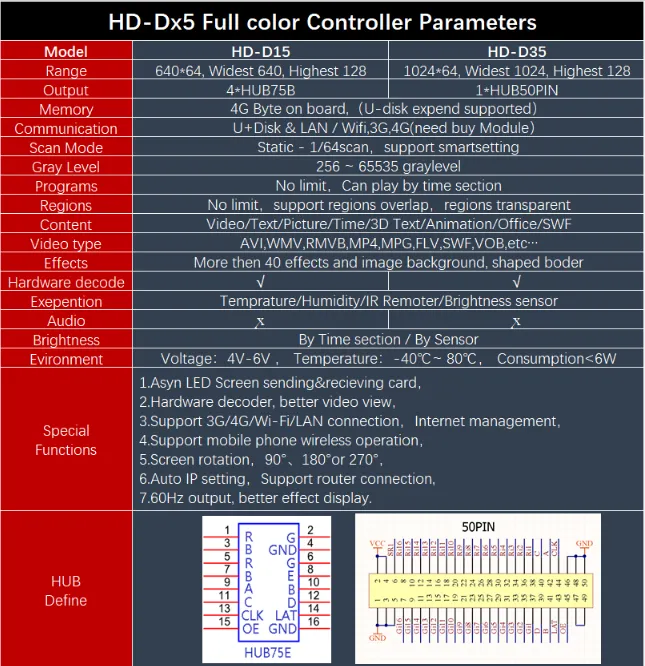

Specification:






Features:

1. Support all kinds of door full-color module,

2. Control Range:1024*64,

3. Support 256~ 65536 gray level,

4. Support the word art, animation background, neon light effect,

5. U-disk unlimited expansion program, plug in broadcast,

6. No need set IP, HD-D35 could be identified by controller ID automatically,

7. Support 3G/4G/Wi-Fi/ and network cluster management remote management,

8. Support 720P video hard decode, 60Mhz frame rate output.

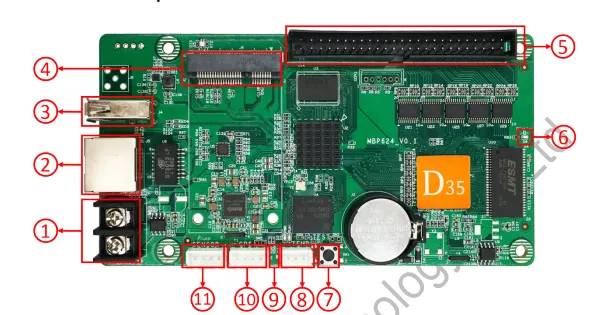

Interface Explanation:




1. Power terminal, connect 5V DC power,

2. RJ45 network port, and the computer network port, router or switch connected to the normal working state is orange light is always on, green light flashes,

3. USB port, connected to USB device for update programs, e.g. U-disk, Mobile hard disk, etc,

4. MINI PCIE port: connect 3G/4G module or WIFI module (optional),the rear if for insert SIM card,

5. 50 PIN HUB: Compatible with a variety of HUB boards,

6. Display light (Display), normal working state is flashing,

7. Test button: for test the brightness and contrast of the display screen;

8. Temperature Sensor port: for connect to Temperature,

9. Power light and running light: D1 is running light, D2 is power light, normal working state: power is always on, run flashes,

10. GPS port:for connect to GPS module, use for time correction and fixed position,

11. Sensor Port:for connect external sensor.



Project:



Company Information

JINGCAN led factory’smain products areconsist of rental led display, advertising led screen, football stadiumperimeter, stage background video wall, traffic guiding display, special-shapeddisplay like curve and round, led moving light, led Par light, led modules andlaser light, etc. The outstanding features of our led products areenvironmental-friendly, energy-saving and long life-span. All of our LEDproducts have approved by CCC, CE, ROHS, FCC, ISO9001 quality certificatesauthorities. Furthermore, our LED products were exported to more than 90countries till now such as Sweden, USA, Brazil, France, Japan, Thailand, Italy,Australia, Spain and etc. Those LED products were widely used in both indoorand outdoor places like hall, hotel, exhibition room, public square, symbols,building and TV stage background and etc.




JINGCAN LED FACTORY Main LED Display Product Lines - Automatical Machines


Qualification Honor:

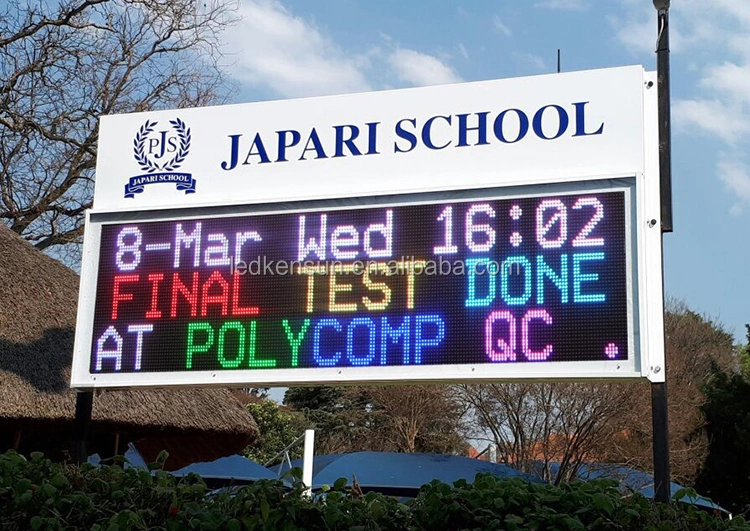

LED display Project around the world:
