Model NO.
JC-P10mm
Quantity:
  • Type:P10 outdoor led module
  • Life span:100000 Hours
  • Scan mode:1/2 scan
  • LED Module Dots:32x16
  • Configure:1RGB
  • Resolution:10000 dot/sqm
  • Brightness:5800 nits
  • Module size:320mm*160mm
  • Certificate:CE ROHS FCC
  • Cabinet size:960*960mm
  • Pixel Pitch:10mm
  • Place of Origin:Shenzhen, Guangdong,China (Mainland)
  • Brand Name:JC
  • Model Number:JC-P10mm
  • Application:Outdoor
  • Color:Full Colour
  • Panel Size:320x160mm

P10 Outdoor SMD 3in1 RGB Full Color LED Display Module

Product Description



Famous Brands Raw Material Selection

1)LED: well-known international brand, with wide viewing angle, high brightness, little attenuation, good heat dissipation, and vivid colors.

2) Driving IC: famous brands such as, Taiwan MBI, Japanese Toshiba, avoidable the defective phenomena, such as dark bright, virtual light and so on.

3) Power supply: industrial-strength brand. The power t maximum power reserve of 20% the space, the range of voltage fluctuation is less 5%, high stability.

4) Connector: Aerial grade brands ensure the stable transmission of power and signal.

5) PCB Board: adopt 4-layer design.

6) Easy installation:100 pieces of cabinets' installation can be finished in one hour by one person. The replacement of any cabinet can be done within 50 seconds.



Specifications



Items

Parameter

Pixel Picth

10mm

Configuration

1R1G1B

Module size

320*160mm

Resolution

10000dots/sqm

Ave. Consumption

<300 w/sqm

Max. Consumption

≤900 w/sqn

Brightness

More than 5800cd/sqm

Grey Scale

4096

View Distance

3-10 m

View Angle

Horizontal: 120°, Vertical: 90°

Power Supply

AC 110V/220V+-10%

Drive Mode

1/2 Scan

Refresh Rate

>1000 Hz/s

Control System

Sync/ Async

Tolerance between modules

≤1.5mm

Storage Temperature

- 35°C ~ + 85°C

Working Temperature

- 20°C ~ + 65°C

Signal Interface

DVI

MTBF

≥10,000 hours

Life span

≥100,000 hours

Operation Humidity

10% ~ 95%

Waterproof Grade

Front: IP65, Rear:54

Input source

DVI, S-video, RGB, VGA and etc

Operation System

Windows98, 2000, ME, VISTA, XP, Win7

Certifications

CE, FCC, ROHS,



Detailed Images

 P8 smd glue image



P10 outdoor SMD led module lighting effects




Back side of the led module

 P10 outdoor SMD 320x160mm (23).JPG



Application:


P8 outdoor (1).pngP8 outdoor (6).jpg

Packaging & Shipping

Packaging:

Usually, there are three tyeps of package design.

Firstly, we pack the LED display in the paper carton.



Secondly, we will pack the LED display in the flight case if  customer request for frequent movement.



Thirdly, the favorable package method is wooden case package because of its lower cost and instant usage.

packge

Note: It also could mark the brand as clients requirement.

Shipping:

We could provide air shipping, sea shipping and international Express according to clients needs.



JINGCAN LED CASE

case

Company Information

JINGCAN led factory’s main products areconsist of rental led display, advertising led screen, football stadiumperimeter, stage background video wall, traffic guiding display, special-shapeddisplay like curve and round, led moving light, led Par light, led modules andlaser light, etc. The outstanding features of our led products areenvironmental-friendly, energy-saving and long life-span. All of our LEDproducts have approved by CCC, CE, ROHS, FCC, ISO9001 quality certificatesauthorities. Furthermore, our LED products were exported to more than 90countries till now such as Sweden, USA, Brazil, France, Japan, Thailand, Italy,Australia, Spain and etc. Those LED products were widely used in both indoorand outdoor places like hall, hotel, exhibition room, public square, symbols,building and TV stage background and etc.

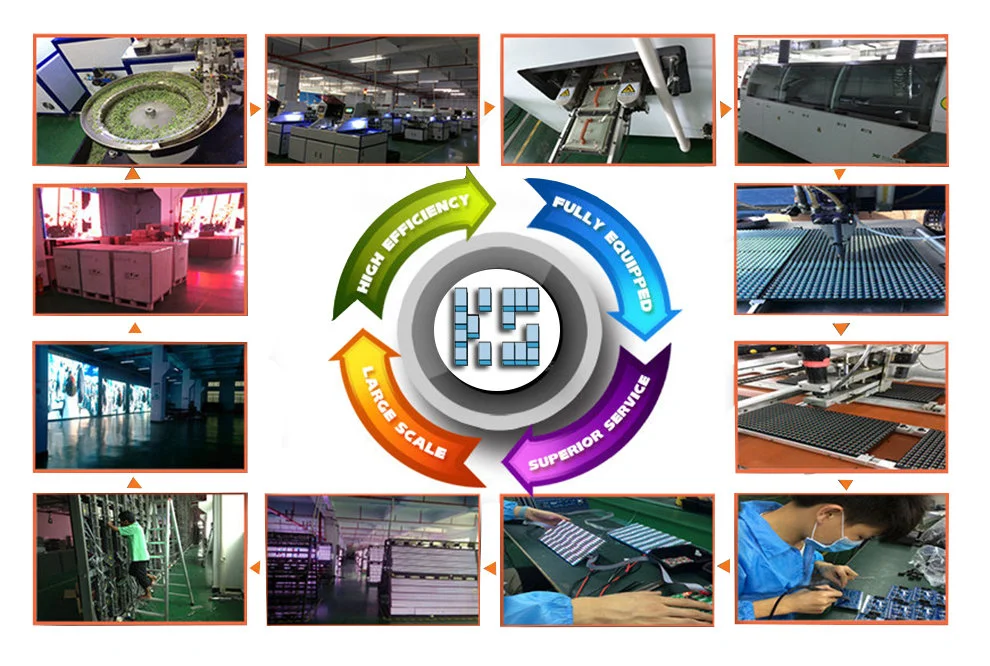

JINGCAN LED FACTORY Main LED Display Product Lines - Automatical Machines


Qualification Honor:


LED display Project around the world:
