Model NO.
JC-FSO-PH6MM
Quantity:
  • Type:P6 smd led display screen
  • Pixels:6mm
  • Usage:OUTDOOR
  • Chip Color:full color
  • Brightness:6000nit
  • Colors:281 trillion billion
  • Certificate:CE ROHS FCC
  • Cabinet size:576x576mm
  • Module size:192*192mm
  • Life span:100000 Hours
  • Place of Origin:CN;GUA
  • Application:advertising
  • Color:full color
  • Panel Size:192mm*192mm
  • Pixel Pitch:6mm
  • Model Number:JC-FSO-PH6MM
  • Brand Name:JC



P6 outdoor full color led display screen



Quick Details:



1. P6 SMD2727 Epistar LED type;

2. OPTO / SILAN;

3. Iron Fixed cabinet or rental Die-casting Al-cabinet;

4. Video processor equipped;

5. Flight case or wooden case package, easy transport.

Product Description



Stable performance,wide applicability, high brightness, superb performance/price ratio.

1.High brightness enables longer viewing distance and ensures the spectators far from the screen can still enjoy what is shown.

2.Superb performance/price ratio offers you both top notch quality and reasonable price, maximizing the value of your investment.

Pixel Pitch: 4mm, 5mm,6mm,8mm,10mm,16mm
Suitable:Outdoor fixed
Application:Branding,Advertis,Signage,etc
Cabinet: Steel or Aluminum

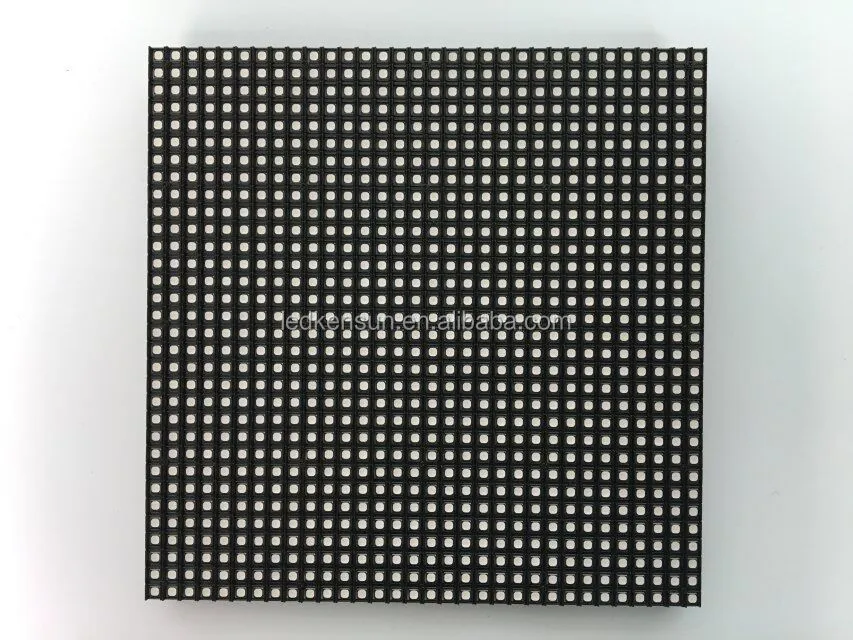

Module detail:

P6 SMD outdoor full color LED display module: 192mm*192mm

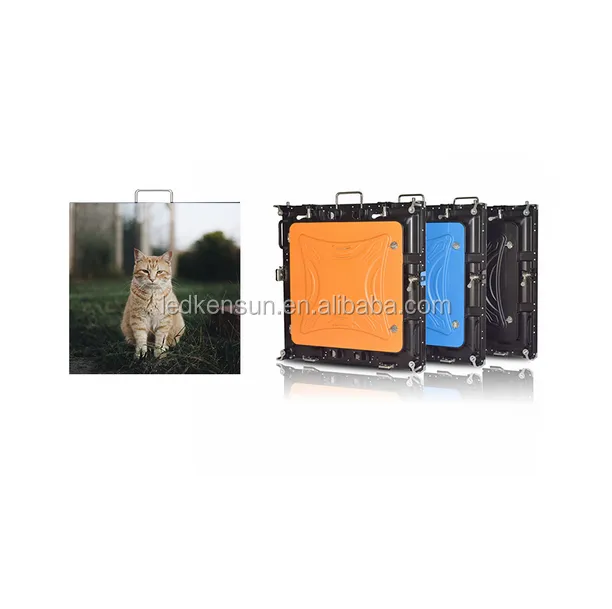

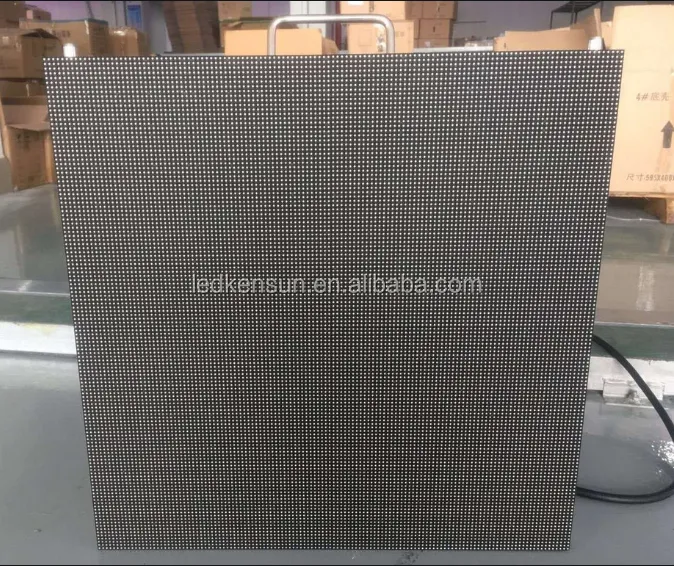

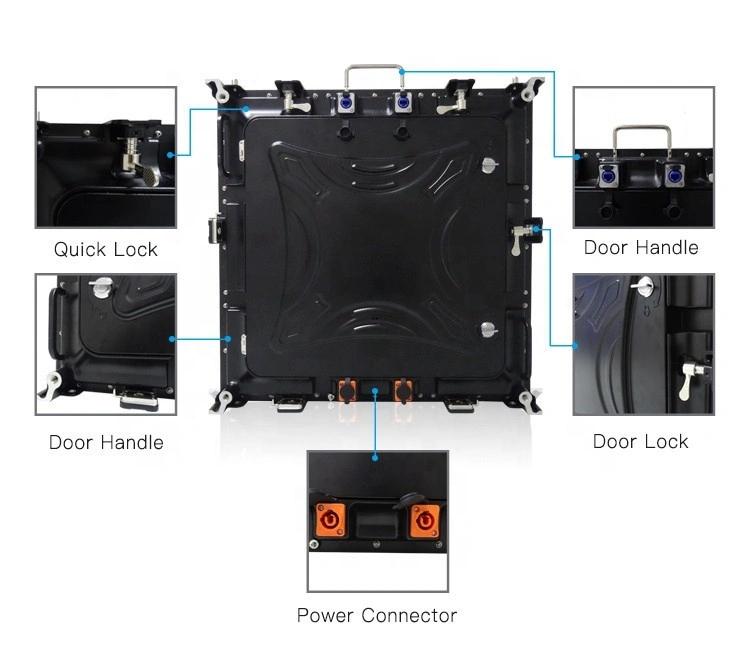

QQ20190711142320.jpgQQ20190711142329.jpgCabinet detail: Die-casting Al-cabinet usually used in rental and live events stage, it very light and could be portable, easy to install and disassembly from screen, P6 outdoor rental cabinet only 12KG/pcs, cabinet size 576mm*576mm, have better display  effect.

cabinet (4)

cabinet 576x576.jpg

Warranty:

1.We guarantee all our display, modules, spare parts (Silan Chip) for TWO years.

2.We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory.

3.After warranty , we also can offer you the parts for replacement at our bottom price.

4.After sales, if you have any problem about our product, you can inform us by Email, we will reply you at once when we get it and offer you a good solution to solve the problem.

5.We also could solve problems for you until it recovers well by remote control!



Delivery Time:

1.Delivery time: Accomplish manufacturing within 25 days after receiving the deposit.

2.Before delivery, we will test the display, and keep it light up for 72 hours, and check all the parts of the display to confirm it is Ok for delivery.



Installation:

1.We can assist the training and technical support for the customer in the factory, if the customer requires so.

2.We could send our engineer to guide the installation for you. But the relevant cost should be paid by your esteemed company.

3.Our technicians will offer CAD Drawing to show how to install the LED Display rightly and fast, of course, if you need.


Specification



Resolution

32(H)×32(V)

Pixel Pitch

6mm

LED Configuration

1R1G1B -SMD

Pixel Density

27777 pixels/ m²

Module Size

192×192mm

Cabinet Size

576×576mm

Driving IC

MBI2053

Driving Method

1/8 Scan, Constant Current

Weight

35KG/sq.m.

Mechanical Ratings

Hanging Weight Support

2T

Surface Flatness

Gap<0.5mm

Optical Ratings

Brightness

6000CD

View Angle

120°/110°

Gray Scale

8bits input, correction with 14bits

Display COLOR

16.7M

Brightness Adjustment

0~100% 10 level

Power Supply

Operation Power

90~260V 50~60Hz

Max. Power Consumption

1000W/ m²

Average Power Consumption

320W/ m²

Control System

Control Mode

Synchronous display with control PC by DVI

Frame Update Frequency

60~85Hz

Screen Refresh Frequency

300~1000Hz

Gamma Correction

-5.0~+5.0

Support Input

Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI

Control Distance

Ethernet cable<120m or Fiber Optic<10Km

Support VGA Mode

1024×768, 1280×1024, 1600×1200, 1920×1280

Brightness Correction

Pixel, Module, Cabinet

Environmental

Operating Temperature

-20°~+60°

Operating Humidity

10~95% RH

Operating Life

100,000hours

MTBF

10,000hours

Protection Level

IP65

Out of Control Rate

<0.01%





Application

The range of application such as hotel advertizing, stage renting, television, shopping malls, big markets, outdoor stadiums, concerts, fairground, sightseeing districts, Outdoor advertising media, enterprise engineering, cultural tourism, image promotion, commercial real estate, etc...

QQ20200102104334.pngQQ20200102104622.pngP6-led-LED-screen.jpg20164151633551389712.jpg

Company Information

Shenzhen Jingcan Opto-Tech Co., Ltdis the professional supplier of LED display solutions, which has been specialized in R&D, manufacturing and marketing of LED Display Screens. Located in our own industrial park, Eachinled covers a district of more than 10, 000 m², of four floors in one block. We could ensure production capacity of more than 5, 000 square meters per month for the LED displays, thanks to our well equipped automatic production lines, and skilled workers.



Our R&D group is made of more than 10% of total employees and most of them are senior technicians, with more than 10 years’ experiences in the LED field. They are involved in all their efforts, from design of projects, to finished products’ performances, in which way, we could provide the most suitable solutions and customized products according to customers’ requests. We have continuously focused on developments of new led display products, with more and more investment, and technical efforts; With excellent, qualified products, and outstanding services, Eachinled has been highly praised by clients of domestic and overseas.

Production Flow

Product Lines.jpg



Packaging & Shipping

1. Firstly, we will use foam wrapped the modules and 40pcs module will be in one carton.



2. Secondly, we also provide wooden case for our clients for fixed installation would be fine.

package sample.jpg



3. Thridly, we also could provide flight case for our clients, it uauslly used in rental moving events.

P3 LED cabinet - Flight Case Package



All package could be customized size according to your requirements.



Meanwhile, we sold our products more than 150 countries over 7 continents, and we have a long-term cooperation with UPS, DHL, Fedex etc, air shipping, sea shipping etc.
