Model NO.
JC-GS12inches
Quantity:
  • Application:Gas Station
  • Product name:12'' 8888 gas price led display
  • Color:single color
  • Brightness:6000nits
  • Certificate:CE ROHS FCC
  • Cabinet size:980*380*60mm
  • Power Supply:Meanwell
  • Power:55W
  • IP rate:IP65
  • Viewing angle:110
  • Place of Origin:CN;GUA
  • Application:gas price
  • Color:single color
  • Panel Size:980*380*60mm
  • Pixel Pitch:10mm
  • Model Number:JC-GS12inches
  • Brand Name:KS
Product Description



Control up to eight displays with one remote;
Link additional displays with ease;
Light Sensor with automatic dimming;
Low energy consumption;

SERIES PARAMETERS
Item
Technical Parameters
Color:
Red, Yellow, Green, Blue, White
Digit Height:
8", 12'', 16'', 18'', 20'', 24''
Digit Design:
7 segments modules are sealed with glue,reach IP65 waterproof grade,with
dust shade that make leds work normally all the time.
Brightness Control:
Auto dimming by brightness sensor
Display Dimming:
Over 8 levels of automatic intensity adjustment
Viewing Angle:
Horizontal:60°-120°,Vertical: 60°-120° or customized
Service Access:
Front or rear open
Master/slave:
Single sided or double sided, master/slaves available
Cabinet Material:
Iron cabinet or aluminum alloy frame
Waterproof Level:
IP53 with aluminum alloy frame, IP65 with iron cabinet
Led Driving Mode:
Constant current
Power Input:
110/220V AC,50-60HZ
PC Communication:
RS232/485;LAN(TCP/IP) with cables or wireless,customer can choose
Communication Distance:
Max.15 meters for RS232, 1200 meters for RS485
Remote Control Type:
RF remote control (Normal 6 buttons or LCD remote controller)
Continuous Working Time:
Unlimited
Lifetime of Leds:
>100,000 hours
Installation Method:
Hanging,mounting or per custom design
Working Temperature:
-40℃~75℃
Display Format:
8.88, 8.888,8.888, 8.88 9/10, 88.88, 88.888 etc.



Price format:88.88
Sign Color: Green,Red,White,Blue,Yellow

Digital Height: 8", 10", 12", 16", 24"
Digit Height:12''
Digit Dismension:170*310mm
Working Temp:-40°C~+ 50°C
Dimension:980*380*60mm
Waterproof:IP 65 (Iron Cabinet)
Power:55W
Brightness:6000 nits
Viewing Angle:110°

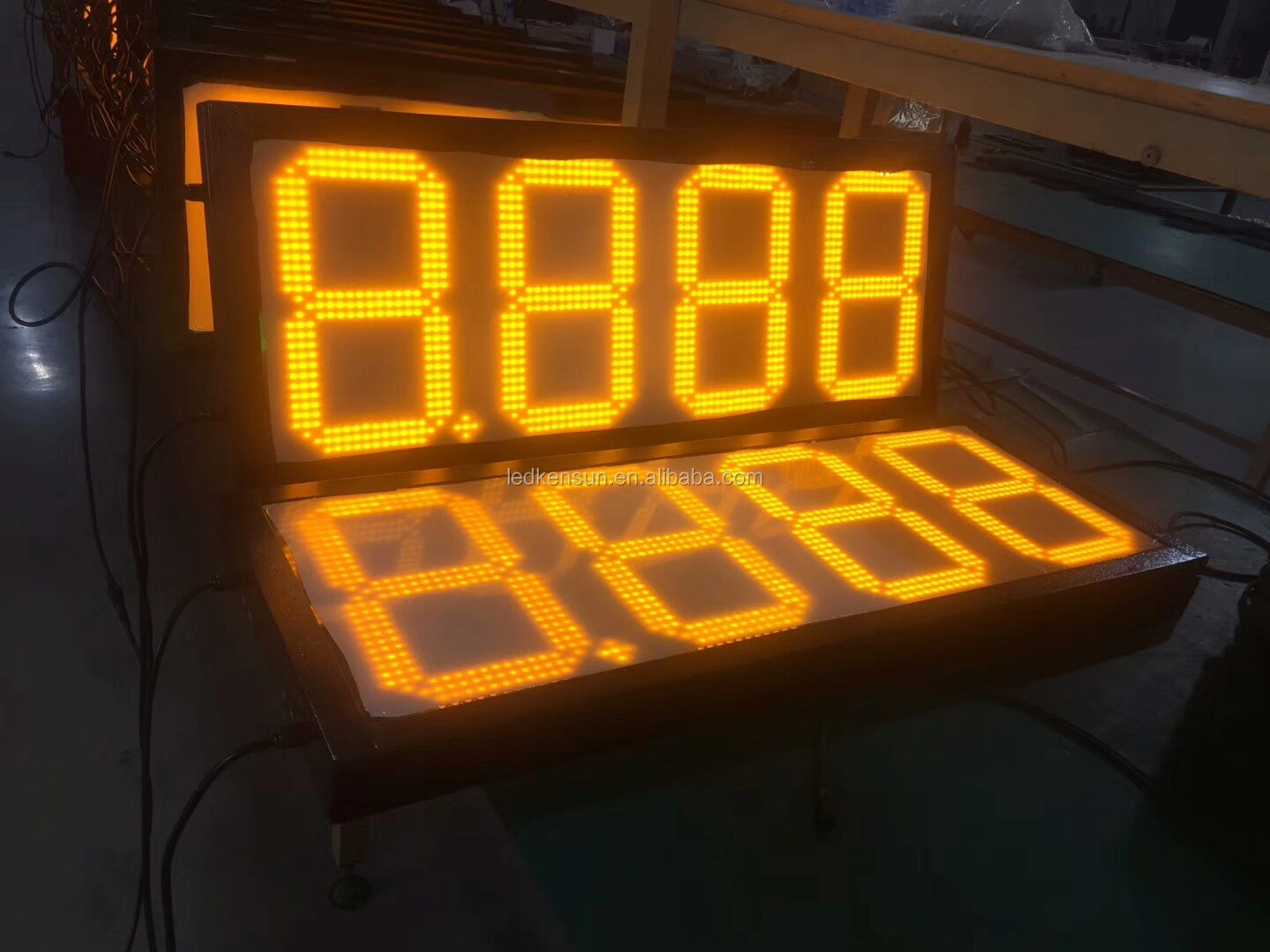

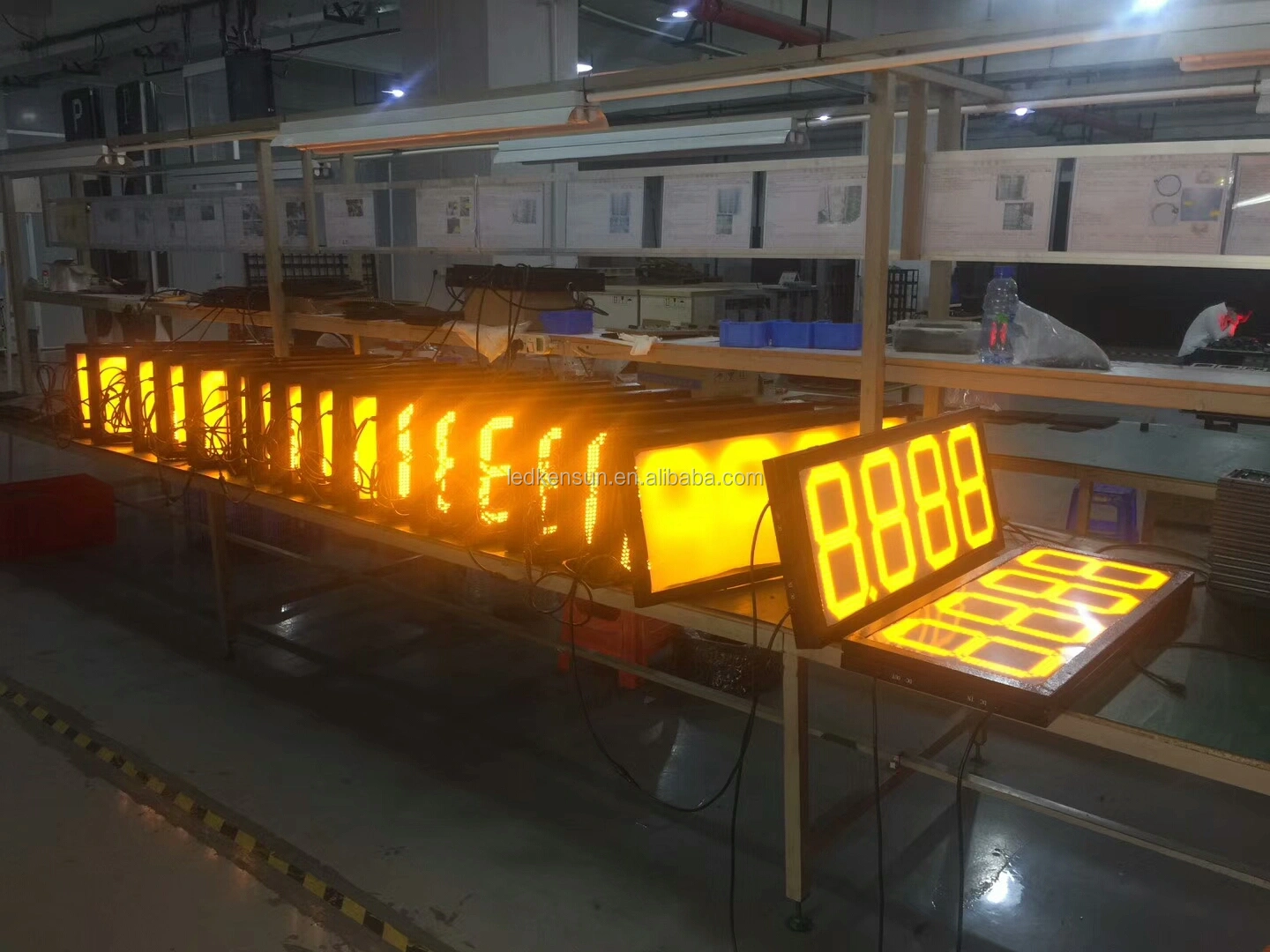

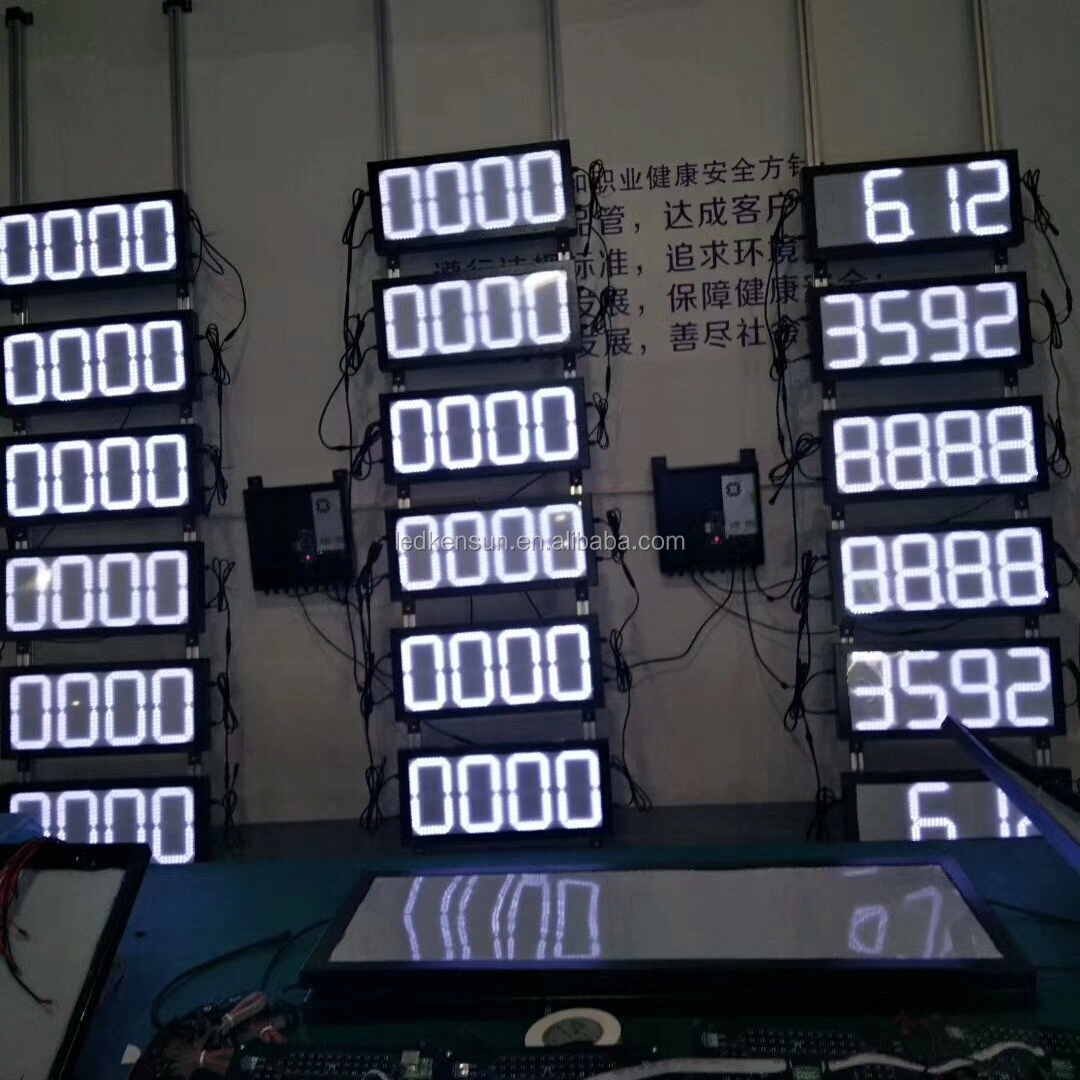

Gas station LED display Board:

mmexport1574998297753.jpg%TEP}9C1QR22]8Y]WCG%IE4.pngmmexport1574998301486.jpgmmexport1574998471849.jpg

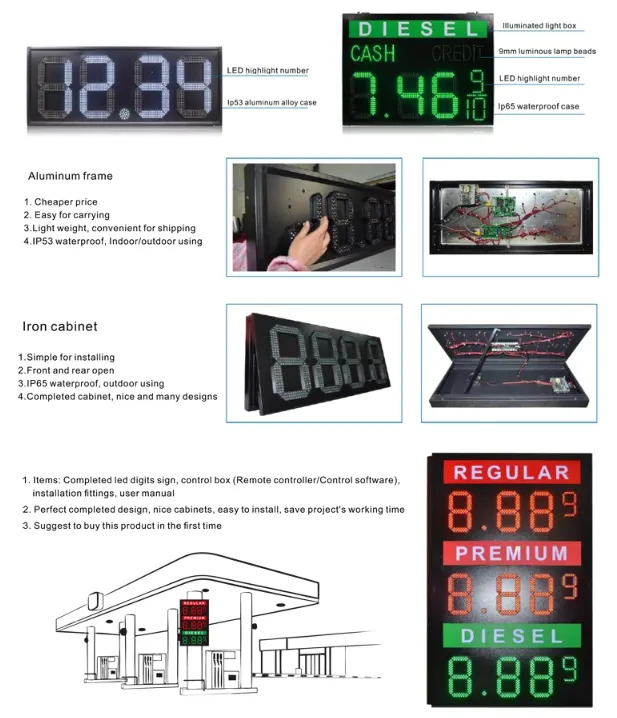

Detail Images:






Packaging & Shipping

1. Firstly, we will use foam wrapped the modules and 40pcs module will be in one carton



2. Secondly, we also provide wooden case for our clients for fixed installation would be fine.

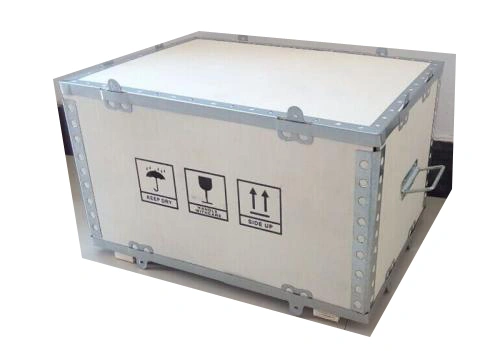

wooden case

All package could be customized size according to your requirements.



Meanwhile, we sold our products more than 150 countries over 7 continents, and we have a long-term cooperation with UPS, DHL, Fedex etc, air shipping, sea shipping etc.




Our Services

1.Your inquiry related to our products or price will be replied in 24hrs

2.OEM&ODM,any your customized lightings we can help you to design and put into product

3.Distributoership are offered for your unique design and some our current models

4.Protection of your sales area,ideas of design and all your private information

5.Top Quality+Reasonable Price+Responsible After Service=Successful & Win

6. Export countries :  Peru,  Mexico, Colombia, Turkey, US, UK, etc.





Trade Terms

1.Payment: T/T 30% as deposits before production, T/T 60% balance before delivery

2.Shipping freight are quoted under your requests

3.Shipping port: Shenzhen, Mainland China

4.MOQ:1sqm p7.62 one line english led message signboard

5.Delivery time: 10-15days after receive pre-payment
