Model NO.
JC-FSO-PH2.5MM
Quantity:
  • Type:P2.5 indoor flexible display panel
  • Tube Chip Color:FULL COLOR
  • Brightness:1000nit
  • IP rate:IP45
  • Configurations:1R1G1B
  • Density:160000 pixels/sqm
  • Colors:281 trillion billion
  • Certificate:CE ROHS FCC
  • Module size:240*120mm
  • Life span:100000hours
  • Place of Origin:CN;GUA
  • Application:rental
  • Color:full color
  • Panel Size:240mm*120mm
  • Pixel Pitch:2.5mm
  • Model Number:JC-FSO-PH2.5MM
  • Brand Name:JC

P2.5 indoor rental curved arc LED display screen



Product Description

LED flexible display is a kind of latest ultra-thin flexible LED display system, including LED display unit and signal processing unit and power supply unit connected to it through circuit board. And a variety of unique shapes, under the color change can give people a dynamic beauty.

Product Freatures:








Feature and Advantage

1. The flexible LED module is an innovative design of high-end technology, which saves costs and is widely applicable to irregular shapes such as circles and columns. Can make any surface, suitable for artistic modeling, personalized stage design, exhibition hall, indoor conference room, etc.
2. Flexible LED module adopts modular design and magnetic design, which is more reliable, stable and convenient for front desk maintenance. High grayscale, high refresh rate, no image delay, ghosting.

3. Flexible LED module is one of the innovative ultra-thin products. It completely breaks through traditional heavy cabinets and can be used in any complex installation environment.

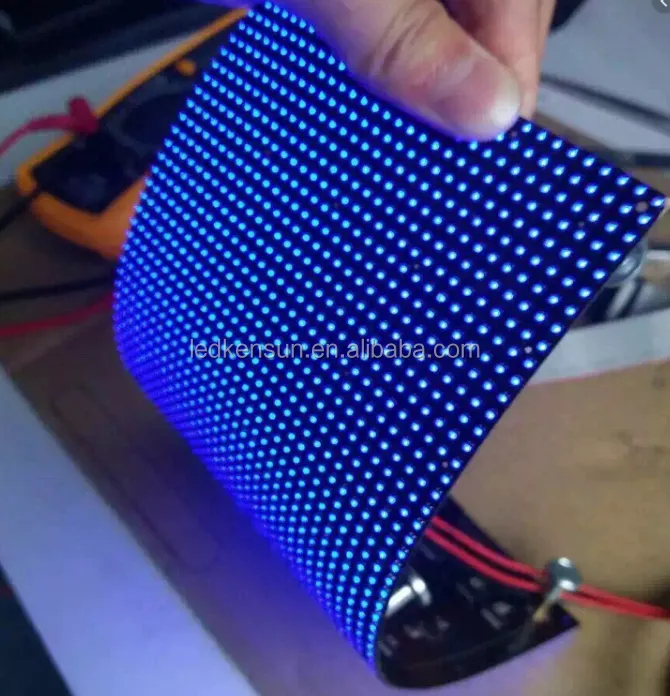

The flexibility of the flexible LED module allows bending in any way. It can create a curved, cylindrical, wavy 360 ° circle or any other shape, and designers can imagine flexible LED modules that are more customizable and creative than traditional projects.

With good flexibility, it can be bent and fun in the form of fast power and data connectors for your custom solutions. By connecting modules in a fixed frame or cabinet with flexible modules, it is easy to reach different shapes. LED display.

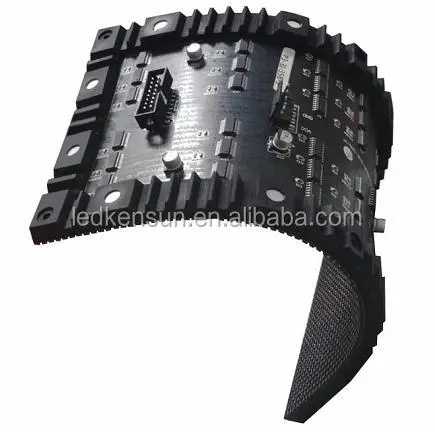

 flexible-led moduleP2-5-soft-module-flexibleQQ20200103090826.png

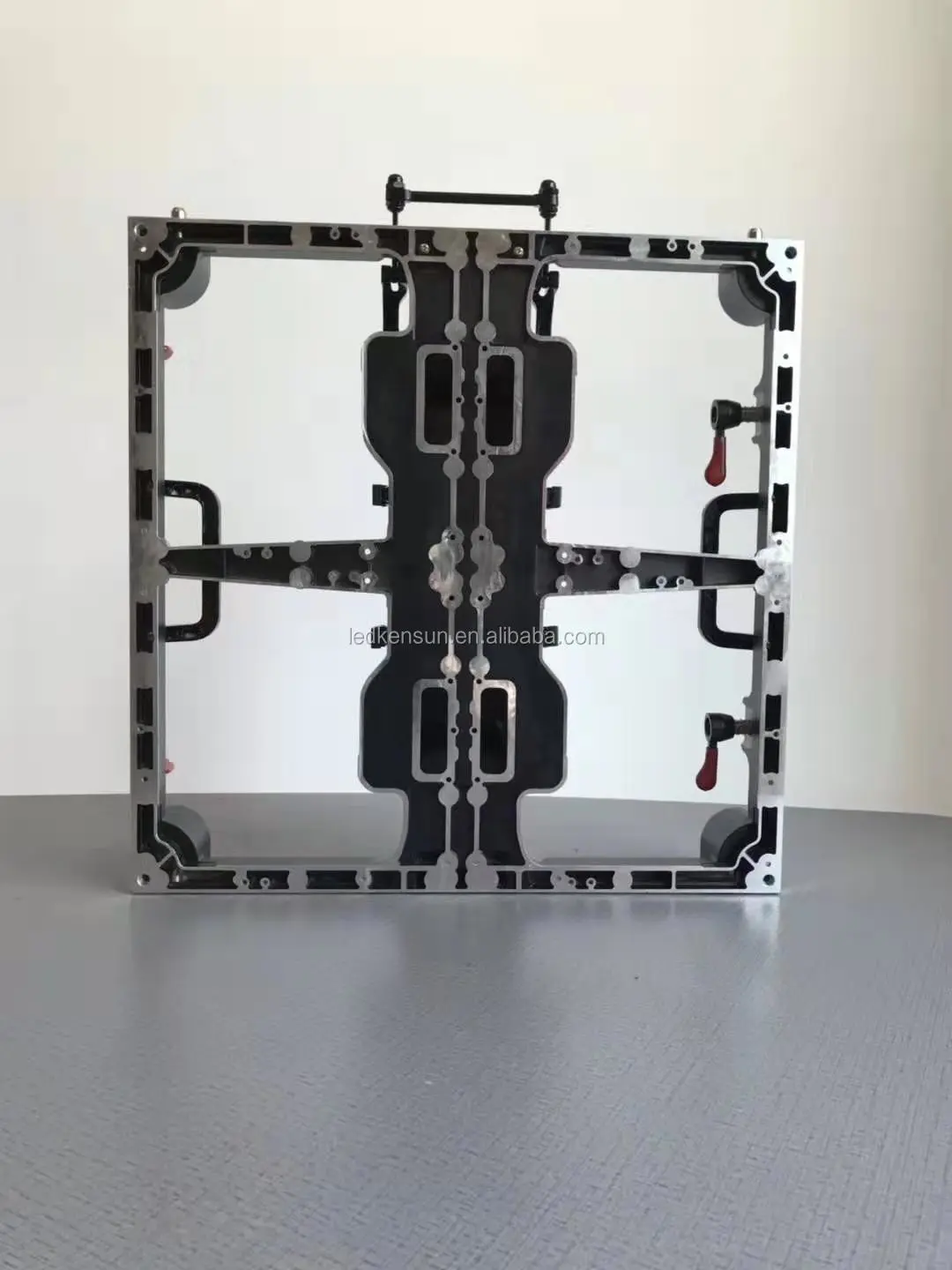

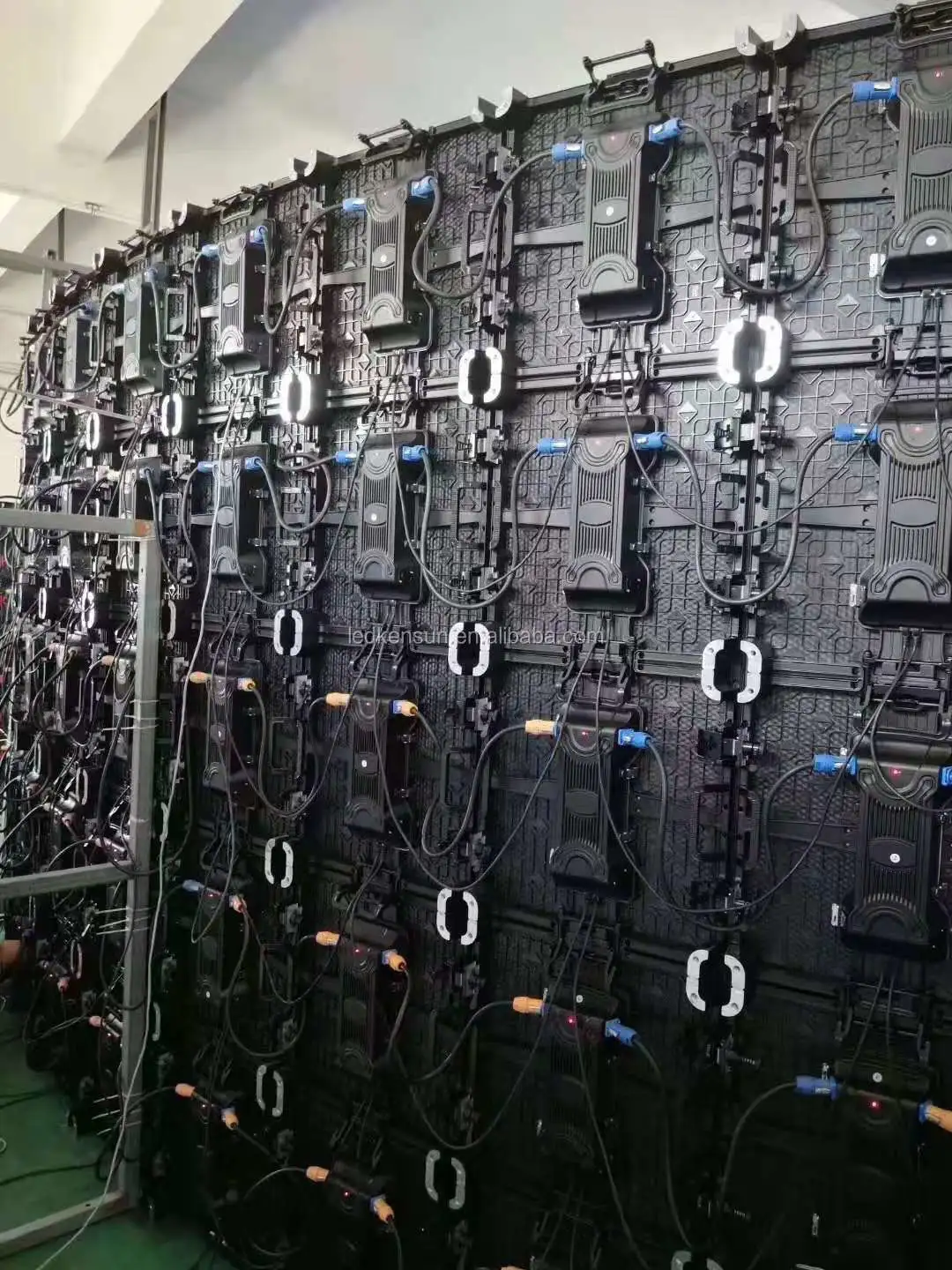

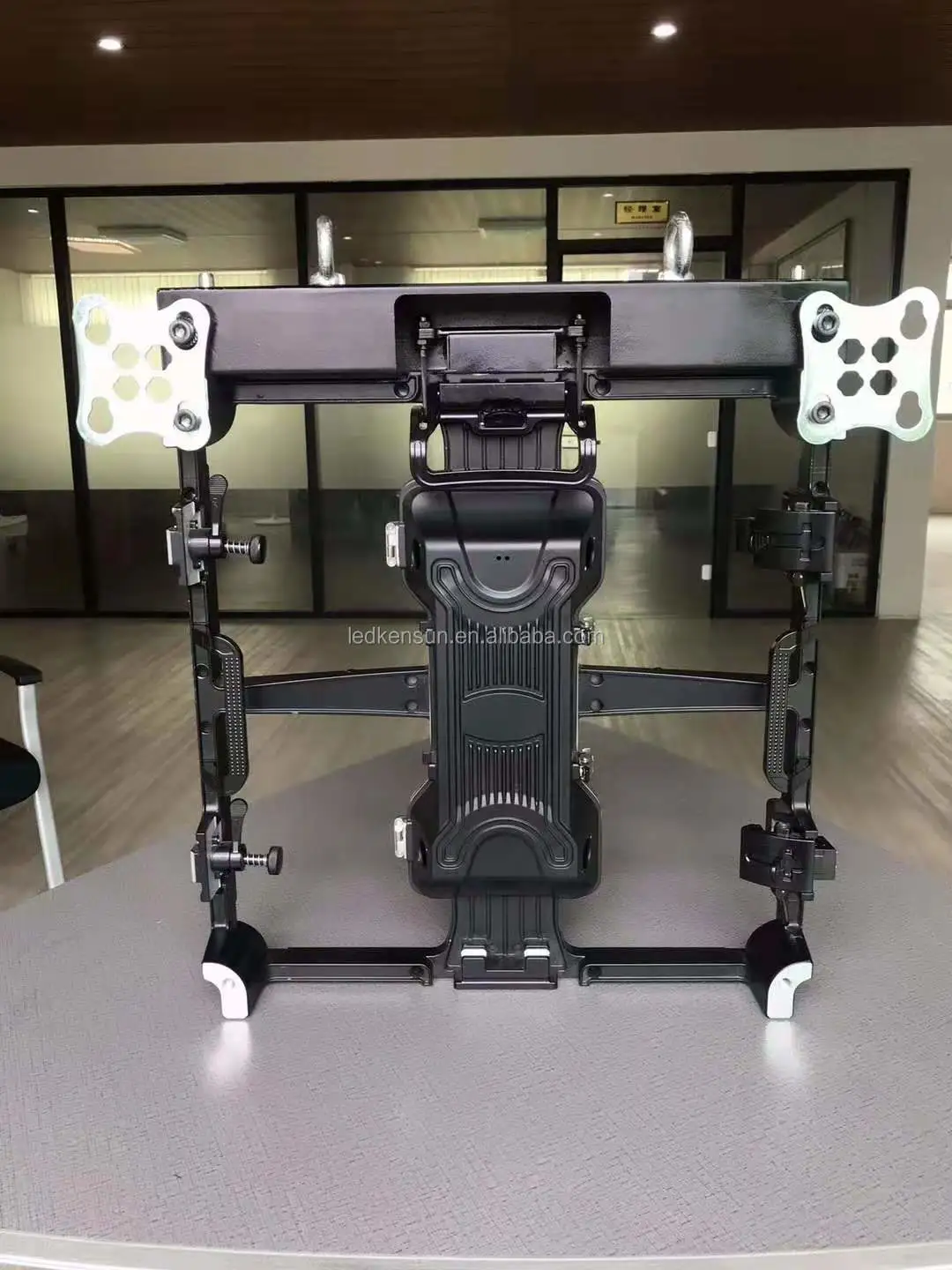

Cabinet detail:

High precision, seamless connection.

The super light shell is made of die-cast aluminum with stronger strength.Display light-weight LED display cabinet with perfect design and easy installation.



Fast&Seamless assembly by hand without tools.

You hardly need any specialized tools or skills to install it. Everything is inbuilt, and it can be installed within a few minutes using simple screw-driver.

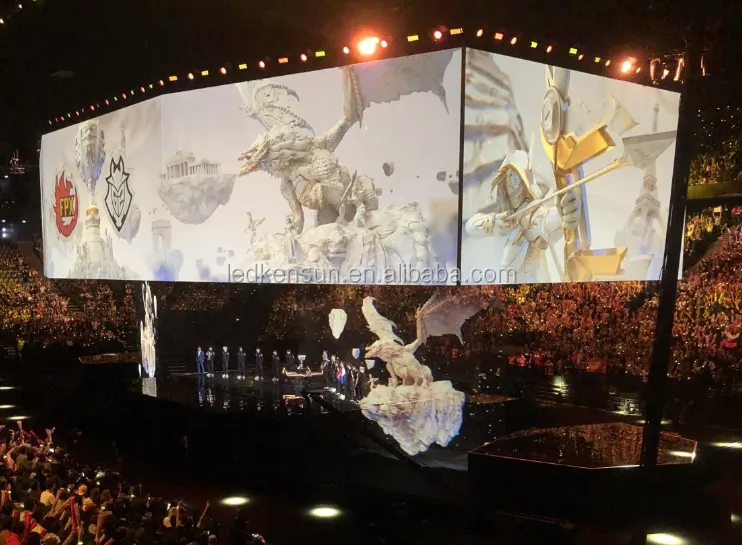

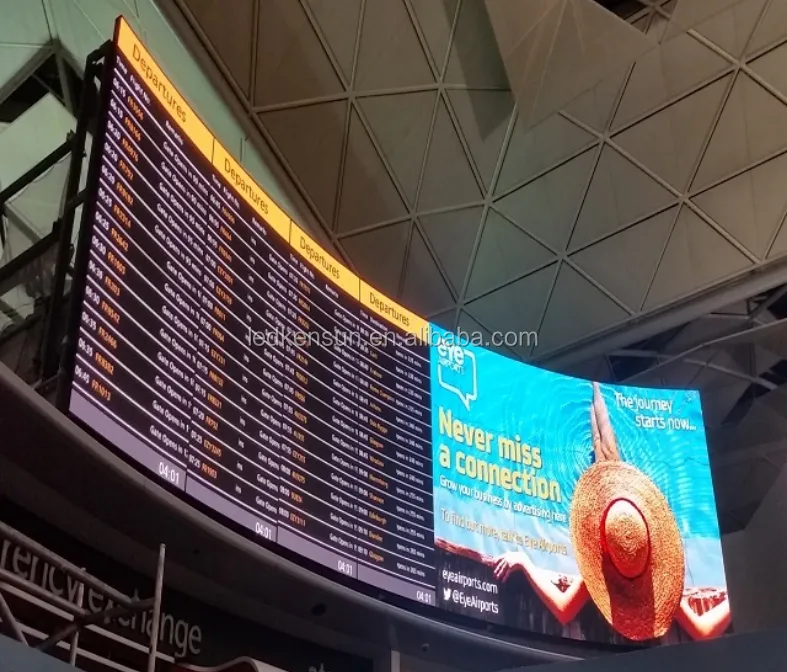

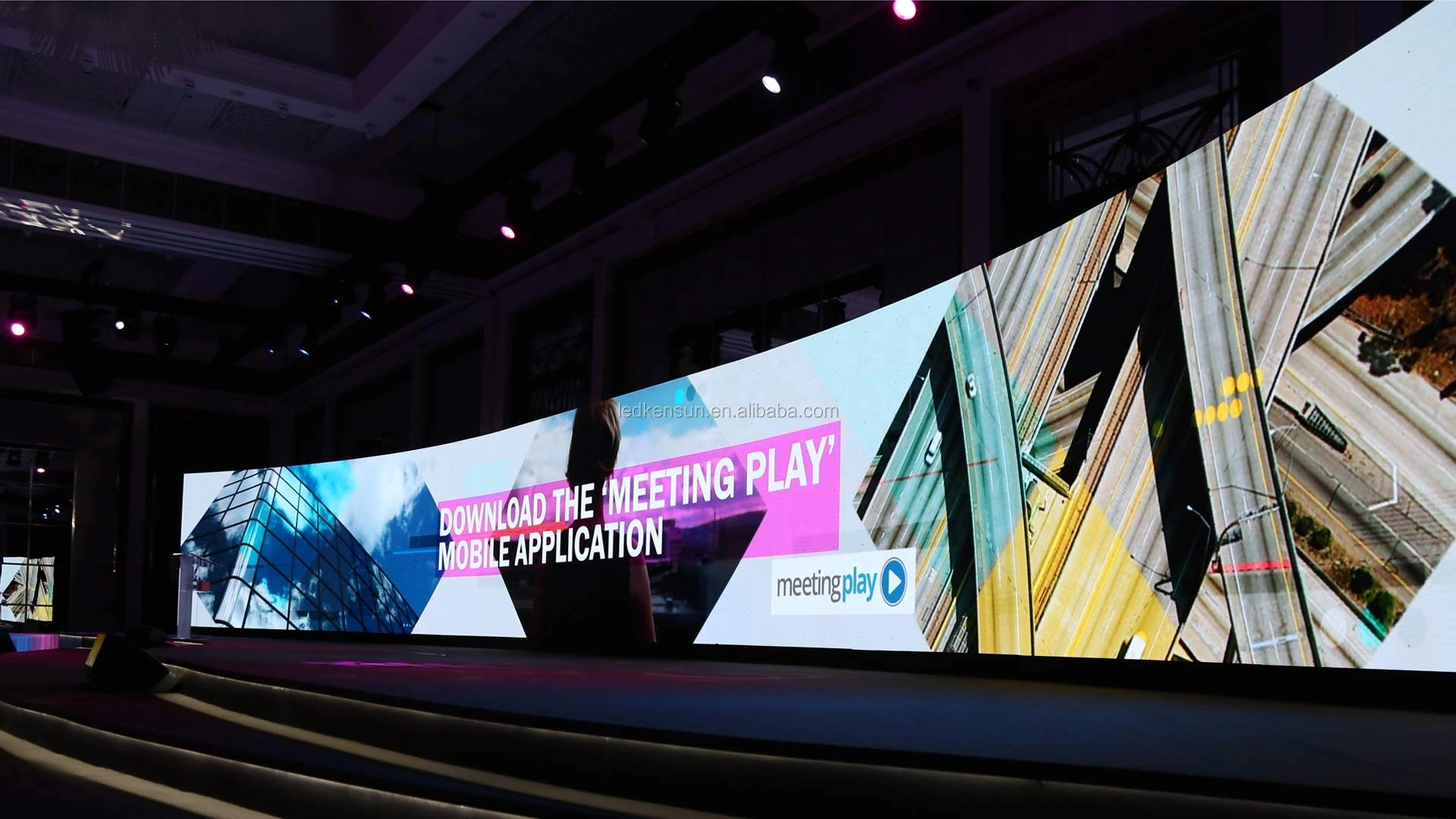

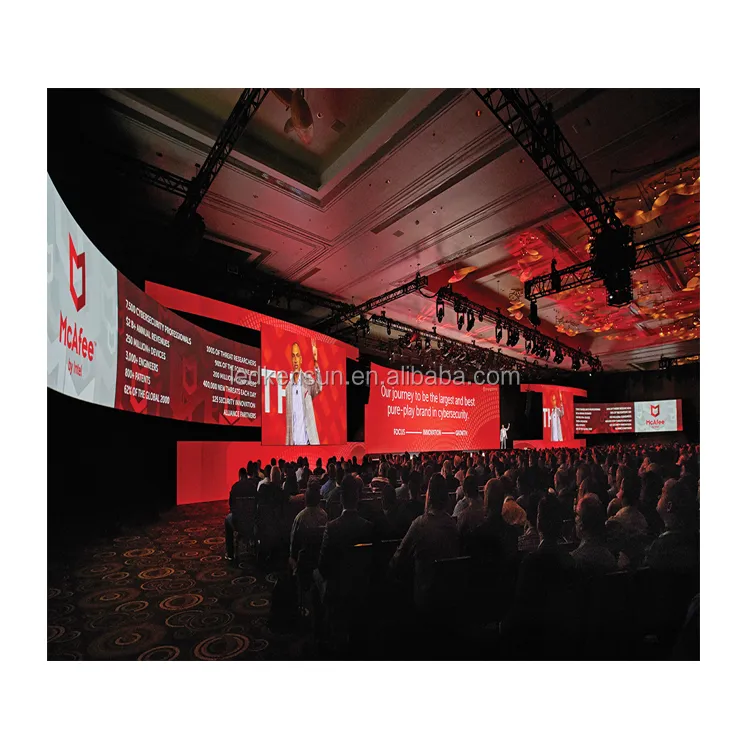

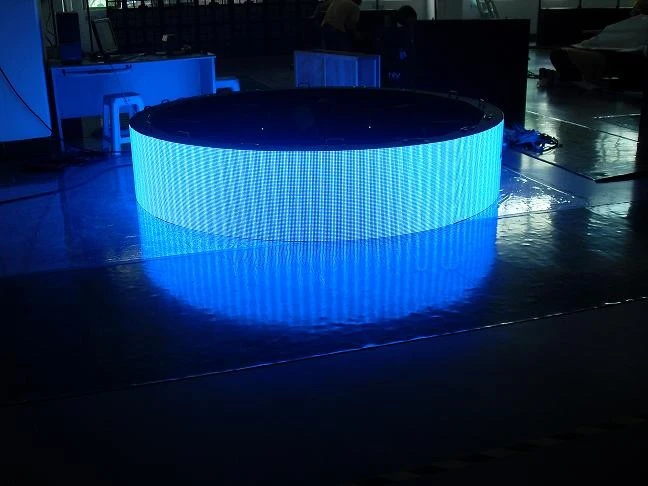

Application:

1 (2).pngLED-S-p2-6.jpg234520191107174138.pngQQ20191226091932.png



Our service

1.Your inquiry related to our products or price will be replied in 24hrs

2.OEM&ODM,any your customized lightings we can help you to design and put into product

3.Distributoership are offered for your unique design and some our current models

4.Protection of your sales area,ideas of design and all your private information

5.Top Quality+Reasonable Price+Responsible After Service=Successful & Win

6. Export countries :  Peru,  Mexico, Colombia, Turkey, US, UK, etc.



Trade Terms



1.Payment: T/T 35% as deposits before production, T/T 65% balance before delivery

2.Shipping freight are quoted under your requests

3.Shipping port: Shenzhen, Mainland China

4.MOQ:1sqm p4 one line english led message signboard

5.Delivery time: 10-15days after receive pre-payment



LED Screen Parameter



Technical DataModelPH2.5
Pixel Pitch2.5mm
Physical Density(pixels/m²)160000
LED Shape & SizeSMD 3 in 1
LED Arrangement1R1G1B
Module Size(mm)

240×120

Module Resolution96*48
Drive ModeDynamic 1/24 Duty Constant Current
Brightness≥1000cd/m²
Contrast(cd/m²)≥1000:1
View Angle, 50% Brightness140°/120°
Minimum View Distance2m
Grey Scale10bits/1024levels
Color Capacity1.07billion
Maximum Power Consumption860W/m²
Ave.Power Consumption280W/m²
Operation Power SourceAC90-260V 50-60HZ
Frame Frequency60-85HZ
Refresh Rate1920-3840HZ
Brightness Adjustment0-100% 8 levels automatic
Gamma Correction-5.0-5.0
Correction Scale Level16bits
Color Temperature5000-9300K
Brightness CorrectionPixels, Module, Cabinet Correction
Input Source SupportComposite, S-Video,Component,VGA,DVI,HDMI,SDI, HD_SDI
Control DistanceUTP CAT5E:100m;Multi-mode Fiber:50m;Single-mode Fiber:10km
Operating Temperature-40°C - 65°C
Operating Humidity10-90%RH
Operating Life Span100,000Hours
MTBF5000 Hours
Protection RatingsIP45
Out of Control Rate0.01%
