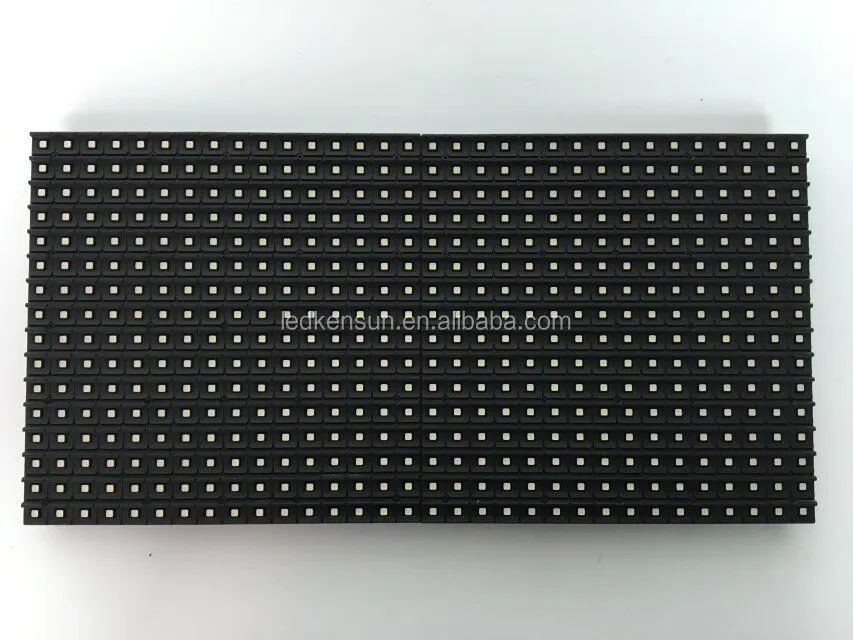

Ready to ship P10 SMD full color led display video advertising led display module 320mm*160mm 1/2 scan
Ready to ship P10 SMD full color led display video advertising led display module 320mm*160mm 1/2 scan
Ready to ship P10 SMD full color led display video advertising led display module 320mm*160mm 1/2 scan
Ready to ship P10 SMD full color led display video advertising led display module 320mm*160mm 1/2 scan
Ready to ship P10 SMD full color led display video advertising led display module 320mm*160mm 1/2 scan
Ready to ship P10 SMD full color led display video advertising led display module 320mm*160mm 1/2 scan
Ready to ship P10 SMD full color led display video advertising led display module 320mm*160mm 1/2 scan
Ready to ship P10 SMD full color led display video advertising led display module 320mm*160mm 1/2 scan
Ready to ship P10 SMD full color led display video advertising led display module 320mm*160mm 1/2 scan
Ready to ship P10 SMD full color led display video advertising led display module 320mm*160mm 1/2 scan
Ready to ship P10 SMD full color led display video advertising led display module 320mm*160mm 1/2 scan

Ready to ship P10 SMD full color led display video advertising led display module 320mm*160mm 1/2 scan

Model NO.
JC-FSO-PH10MM
Quantity:
  • Place of Origin:CN;GUA
  • Application:advertising
  • Color:full color
  • Panel Size:320mm*160mm
  • Pixel Pitch:10mm
  • Model Number:JC-FSO-PH10MM
  • Brand Name:JC
  • Type:P10 led display module
  • Display Function:Video
  • Screen Dimension:Customized Size
  • Pixels:10mm
  • Usage:OUTDOOR
  • Chip Color:full color
  • Brightness:5800nit
  • Gray scale per color:65536 levels
  • Colors:281 trillion billion
  • Certificate:CE ROHS FCC



 P10 SMD full color led display video advertising led display module 320mm*160mm 1/2 scan



Quick Details:



1. SMD3535 LED type;

2. OPTO / SILAN;

3. Die cast aluminum cabinet;

4. Video processor equipped;

5. Flight case package, easy transport.

Product Description



Stable performance,wide applicability, high brightness, superb performance/price ratio.

1.High brightness enables longer viewing distance and ensures the spectators far from the screen can still enjoy what is shown.

2.Superb performance/price ratio offers you both top notch quality and reasonable price, maximizing the value of your investment.

Pixel Pitch: 8mm,10mm,16mm
Suitable:Outdoor fixed
Application:Branding,Advertis,Signage,etc
Cabinet: Steel or Aluminum

 QQ20190726110143.jpgQQ20190726110151.jpgP10 2.png

Warranty:

1.We guarantee all our display, modules, spare parts (Silan Chip) for TWO years.

2.We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory.

3.After warranty , we also can offer you the parts for replacement at our bottom price.

4.After sales, if you have any problem about our product, you can inform us by Email, we will reply you at once when we get it and offer you a good solution to solve the problem.

5.We also could solve problems for you until it recovers well by remote control!



Delivery Time:

1.Delivery time: Accomplish manufacturing within 25 days after receiving the deposit.

2.Before delivery, we will test the display, and keep it light up for 72 hours, and check all the parts of the display to confirm it is Ok for delivery.



Installation:

1.We can assist the training and technical support for the customer in the factory, if the customer requires so.

2.We could send our engineer to guide the installation for you. But the relevant cost should be paid by your esteemed company.

3.Our technicians will offer CAD Drawing to show how to install the LED Display rightly and fast, of course, if you need.


Specification



Resolution

32(H)×16(V)

Pixel Pitch

10mm

LED Configuration

1R1G1B -SMD

Pixel Density

10,000 pixels/ m²

Module Size

320×160mm

Cabinet Size

960×960mm, 1280×1280mm,  etc.

Driving IC

MBI5024

Driving Method

1/2 Scan, Constant Current

Weight

45KG/sq.m.

Mechanical Ratings

Hanging Weight Support

2T

Surface Flatness

Gap<0.5mm

Optical Ratings

Brightness

5800CD

View Angle

120°/120°

Gray Scale

8bits input, correction with 14bits

Display COLOR

16.7M

Brightness Adjustment

0~100% 10 level

Power Supply

Operation Power

90~260V 50~60Hz

Max. Power Consumption

1000W/ m²

Average Power Consumption

320W/ m²

Control System

Control Mode

Synchronous display with control PC by DVI

Frame Update Frequency

60~85Hz

Screen Refresh Frequency

300~1000Hz

Gamma Correction

-5.0~+5.0

Support Input

Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI

Control Distance

Ethernet cable<120m or Fiber Optic<10Km

Support VGA Mode

1024×768, 1280×1024, 1600×1200, 1920×1280

Brightness Correction

Pixel, Module, Cabinet

Environmental

Operating Temperature

-20°~+60°

Operating Humidity

10~95% RH

Operating Life

100,000hours

MTBF

10,000hours

Protection Level

IP65

Out of Control Rate

<0.01%

































































































































































































































































































Detailed Images






led outdoor 02.jpg



Back cabinet.jpg




Production Flow

Product Lines.jpg
