Model NO.
JC-FMO-PH10MM
Quantity:
  • Place of Origin:CN;GUA
  • Application:advertising
  • Color:full color
  • Panel Size:320mm*160mm
  • Pixel Pitch:10mm
  • Model Number:JC-FMO-PH10MM
  • Brand Name:JC
  • Type:p10smd outdoor full color led display module
  • Pixels:10mm
  • Brightness:5800nit
  • Configurations:1R1G1B
  • Density:10000 pixels/sqm
  • Gray scale per color:65536 levels
  • Certificate:CE ROHS FCC
  • Life span:10000hours
  • Module size:320*160 Mm
  • Refresh rate:1920Hz

 p10 outdoor full color led display module





Quick Details



1. P10 outdoor full color led display modulesize:320mm*160mm

2. Brightness:5800cd/sqm

3. Pixel density:10000dots/sqm

4. Average Power:300w/sqm

5. IP rate: IP65

6. Design life:100000hours





Product Description

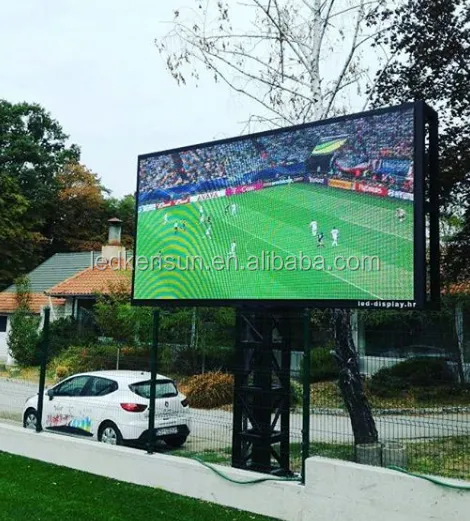

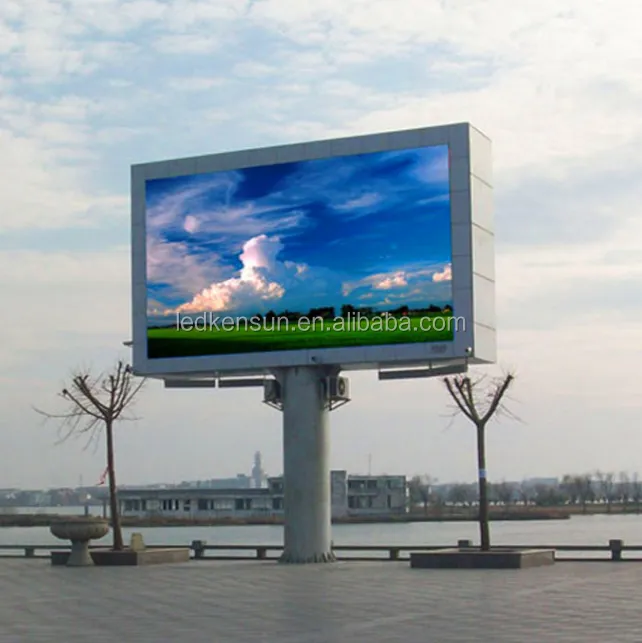

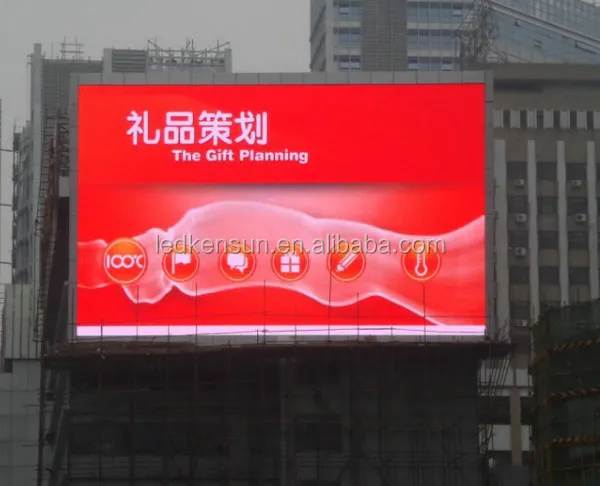

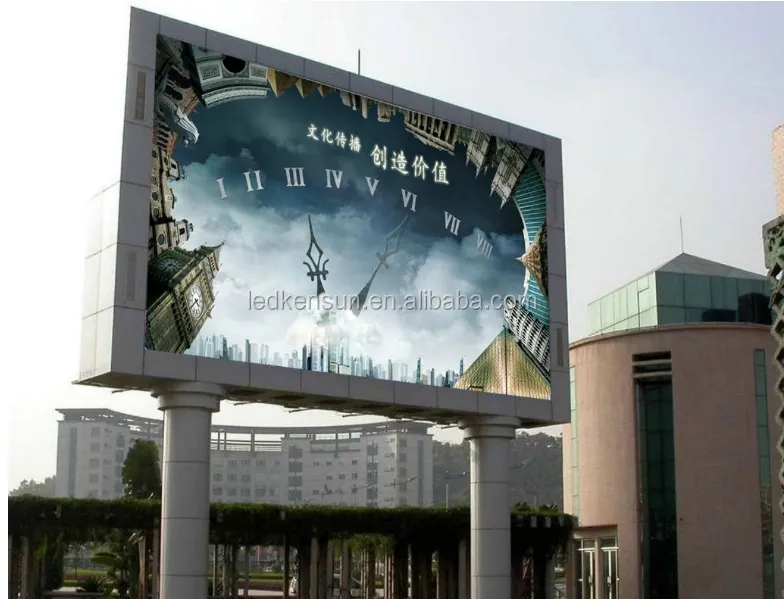

Why choose Outdoor LED display screen?

1. Strong visual impact
The large-sized, dynamic, and audio-visual integrated LED advertising can motivate the audience's senses in an all-round way, effectively convey information and guide consumption.

2. Wide coverage
Outdoor LED displays are generally installed in areas where people are concentrated, such as shopping malls. Through high-frequency communication with user groups, it stimulates consumers' strong desire to buy and improves brand awareness.

3. Long release period
Outdoor LED advertising can be played around the clock. It is easier for the audience to see, it can better guide the potential customer crowd, and enable the merchant to achieve better publicity with less cost.

4. Low audience dislike rate
Outdoor LED advertising can broadcast programs to more audiences in a real and timely manner through live broadcast technology. Including special topics, columns, variety shows, animations, radio dramas, TV series, etc., the content is rich, avoiding the contact obstacles caused by the conscious and active avoidance of advertising audience.

5.Energy saving and environmental protection
The light-emitting element of the LED display is LED. Because the power of a single LED is very low, generally 0.04 ~ 0.08W, the power is several times lower, but the effect is much better. The LED display is made of environmentally friendly materials and is recyclable. It will not cause pollution and damage to the environment due to heavy use.

6. Posting information is simple and convenient
Connect to a computer through a data cable connection or wireless communication, and set up in the computer to publish advertising content, conveniently and quickly.

Product Freatures:234520190902101540.png

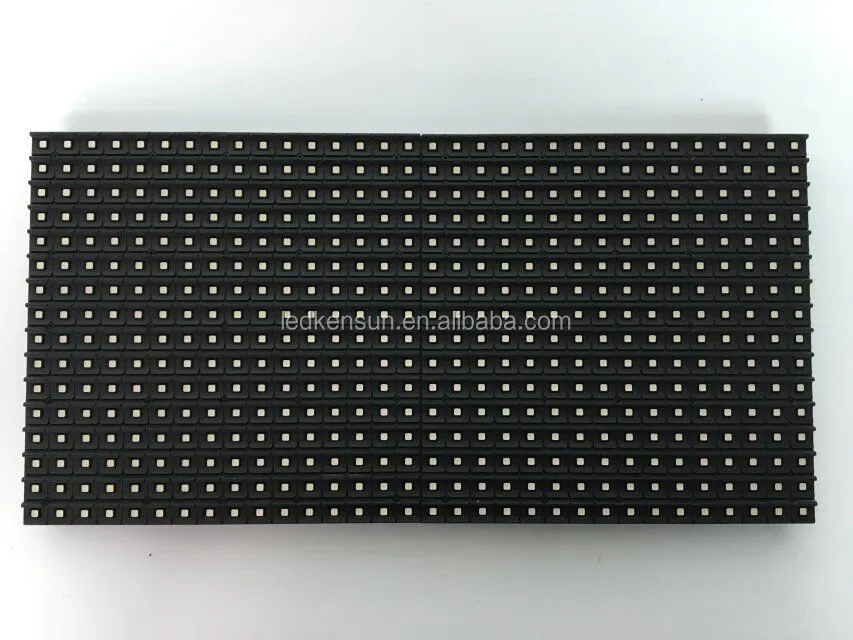

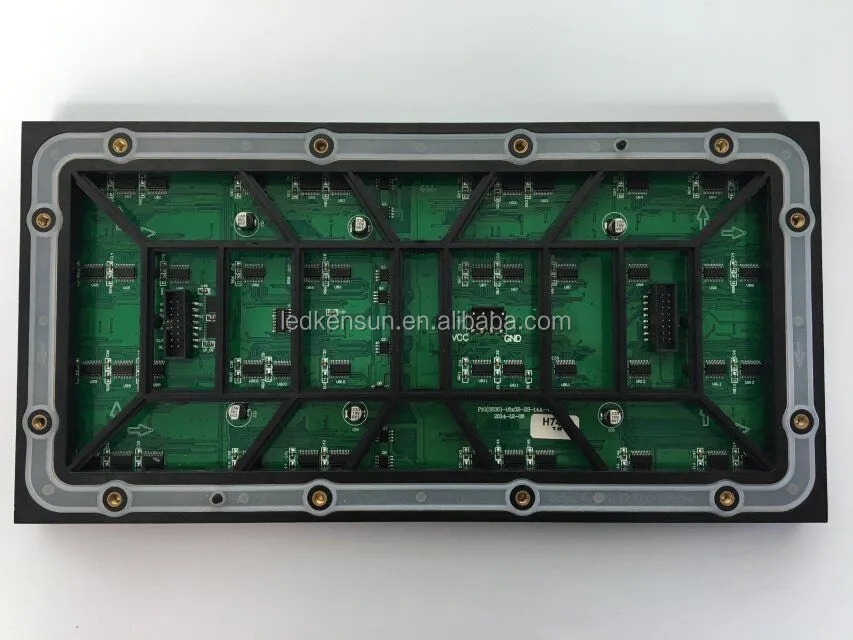

Module detail:









LED Display Module Parameter



Description

Technical parameter

Unit module

Module size

320*160mm

Pixel pitch

10mm

Pixel density

10,000dots/m2

Pixel configuration

1R1G1B

Led specification

Φ3ellipse

Pixel resolution

W:16dots*H:16dots

Cabinet

Dimension

960mm*960mm*120mm

Quantities of module

18pcs

Power supply

3pcs

Thermal discharge

Fan*2pcs

Total weight

42kg

Best viewing distance

10-100m

Temperature

Storage: -35°C~+85°C

Working: -35°C~+85°C

Thickness

15cm can adjustable

Remarks: cabinet size can changed, upon project need.

Power

Working voltage

AC220V/110V±10%

Average power consumption

300-400W

Max. Power consumption

≤1000W/sqm

Current

≤20mA(single LED)

Control system

CPU

Pentium4 or above

Operating system

WIN98/2000/NT/XP

Control method

Synchronization

Main technical parameter

Driving device

1/4scanning

Drive type

Constant Current driver IC

Refresh frequency

≥1920Hz

Grey scale/colors

256 levels of each color(R/G/B)/16.7M color

Brightness of white balance

More than 8000cd/sqm

Brightness adjustment

256 levels of each color(R/G/B)by software

Operating ambient humidity

10%--95%

Video signal

PAL/NTSC

Control system

DVI display card+full color controller card

MTBF

≥10,000hours

Life span

≥100,000hours

Flatness

Tolerance of interpixel ≤0.3mm

Tolerance of modules clearance≤0.6mm

Power switch

Automatic switch

Display mode

1024*768

Software

LED media player





Packaging & Shipping

Packaging:

Usually, there are three tyeps of package design.

Firstly, we pack the LED display in the paper carton.



Secondly, we will pack the LED display in the flight case if  customer request for frequent movement.



Thirdly, the favorable package method is wooden case package because of its lower cost and instant usage.

packge

Note: It also could mark the brand as clients requirement.

Shipping:

We could provide air shipping, sea shipping and international Express according to clients needs.



FAQ

1. How can I place an order?
Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. For designing or further discussion, it is better to contact us with Skype/email /phone, in case of any delays.

2. What kind of display we provide?
We have indoor/outdoor/led curtain/mobile LED /rental LED display /LED stage/LED Dance Floor/Irregular LED display for you choose.

3. What about the lead time for order?
Always: 3-20 days, as your order quantity, sometimes we have stock, can delivery within 5 days

4.How about the warranty ?
We have two years warranty.
