- Place of Origin:CN;GUA
- Application:rental
- Color:full color
- Panel Size:192mm*192mm
- Pixel Pitch:3mm
- Model Number:JC-FSI-PH3MM(rental)
- Brand Name:JC
- Pixels:SMD P3 full color led display
- Screen Dimension:576mmx576mm
- Tube Chip Color:FULL COLOR
- Brightness:1000nit
- IP rate:IP45
- Weight:35KG/SQM
- Configurations:1R1G1B
- Density:111111 pixels/sqm
- Gray scale per color:65536 levels
- Certificate:CE ROHS FCC

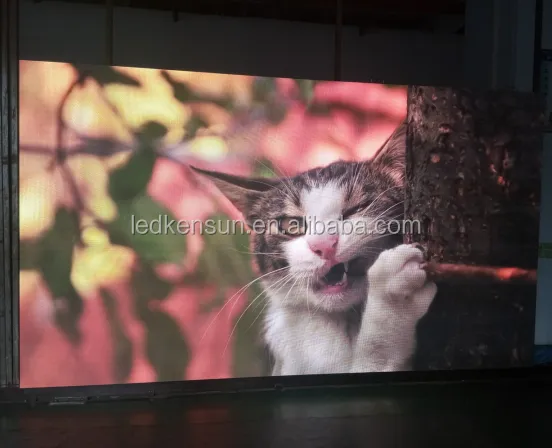

China HD Magnet Front Service P3 rental led display
We offer a 1-3 year warranty service according different order, and to provide free technical guidance. We have a professional service team; they are always online waiting to serve you. During the warranty period, all damaged parts could be replaced free of charge
Description | Technical parameter | |
LED Module | Module size | 192*192mm |
Pixel pitch | 3mm | |
Pixel density | 111111 dots/m2 | |
Pixel configuration | 1R1G1B | |
Led specification | SMD2121 | |
Pixel resolution | W:64dots*H:64dots | |
Power System | Working voltage | DC9-36V |
Average power consumption | 400W/m2 | |
Max. Power consumption | ≤800W/m2 | |
Current | ≤20mA(single LED) | |
Control system | CPU | Pentium4 or above |
Operating system | WIN98/2000/NT/XP | |
Control method | Synchronization | |
Main technical parameter | Driving device | 1/32 scan |
Drive type | Constant Current driver IC | |
Refresh frequency | ≥1920Hz | |
Grey scale/colors | 256 levels of each color(R/G/B)/16.7M color | |
Brightness white balance | More than 1000 cd/m2 | |
Brightness adjustment | 256 levels of each color(R/G/B)by software | |
Operating ambient humidity | 10%--95% | |
Video signal | PAL/NTSC | |
Control system | DVI display card+full color controller card | |
MTBF | ≥10,000hours | |
Life span | ≥100,000hours | |
Flatness | Tolerance of interpixel ≤0.3mm | |
Tolerance of modules clearance≤0.6mm | ||
Power switch | Automatic switch | |
Display mode | 960*320 | |
Communication distance | Unshielded twisted pair net line transmission distance 100m, max transmission distance 200m. Multi-mode Optic fiber transmission distance 500m;Single-mode optic fiber transmission distance 10KM | |
Software | Linsn LED Control System and LED Studio | |
1. Wide application field&short ROI time:Commercial advertising LED display, Stadium perimeter LED display,Mobile trailer LED panel for mobile media,shopping mall LED panel for logo showing,bank&stock exchange LED panel for rates showing,train&bus station,air port,telecommunication LED panel system for information showing and instruction.
2. High Contrast:7000:1,which is a very high level to ensure a vivid image of our LED display screen system.
3. First-class LED chip: Supplied by Ni-chia of Japan to ensure the long lifetime and high brightness of our LED screen system.
4.Clear vivid image quality even in direct, full-on sunlight to ensure you attracts more audience to get short ROI of your LED screen’s investment.
5.Long-term Brightness:7500-nit brightness( for outdoor full color) (1200-2700 nits brightness for indoor full color)capacity throughout product lifetime of the LED display.
Product Freatures:
Module detail:
Cabinet detail:
Application:
JINGCAN led factory’s main products areconsist of rental led display, advertising led screen, football stadiumperimeter, stage background video wall, traffic guiding display, special-shapeddisplay like curve and round, led moving light, led Par light, led modules andlaser light, etc. The outstanding features of our led products areenvironmental-friendly, energy-saving and long life-span. All of our LEDproducts have approved by CCC, CE, ROHS, FCC, ISO9001 quality certificatesauthorities. Furthermore, our LED products were exported to more than 90countries till now such as Sweden, USA, Brazil, France, Japan, Thailand, Italy,Australia, Spain and etc. Those LED products were widely used in both indoorand outdoor places like hall, hotel, exhibition room, public square, symbols,building and TV stage background and etc.
JINGCAN LED FACTORY Main LED Display Product Lines - Automatical Machines
Qualification Honor:
LED display Project around the world:
Usually, there are three tyeps of package design.
Firstly, we pack the LED display in the paper carton.
Secondly, we will pack the LED display in the flight case if customer request for frequent movement.
Thirdly, the favorable package method is wooden case package because of its lower cost and instant usage.
1. The unit price depends on the quantity, we can offer you at a competitive price.
2. Your inquiry related to our products or prices will be replied in 24hrs.
3. Well-trained and experienced staffs to answer all your enquires in fluent English.
4. Distributorship are offered for your unique design and some our current models.
5. Protection of your sales area, ideas of design and all your private information.
Before we offer you best quotation, we'd like to confirm some details if you don't mind:
1. What's the size of screen, cabinet you prefer?
2. What's the best viewing distance with your project?
3. What's the color of cabinet you need? Any logo on back of cabinet?
4. When do you need to get goods? Is this urgent?
5. Any special requests? Such as video processor,hanging bar,flight case for package? Please advise it as well.
