IP65 Waterproof Iron Cabinet 640x640 mm Outdoor Building Wall Fixed 6500nits Brightness P5 LED Outdoor Cabinet

Model NO.
JC-ADV-PH5MM
Price:
USD 300.00-512.00
Minimum order quantity:
1
Supply Ability:
10000 / Month
Country of Origin:
Shenzhen
Quantity:
  • Place of Origin:CN;GUA
  • Usage:Outdoor
  • Tube Chip Color:FULL COLOR
  • Display Function:Video
  • Pixels:5mm
  • Brand Name:JC
  • Model Number:JC-ADV-PH5MM
  • Screen Dimension:Customized
  • Chip Color:full color
  • Brightness:6500nit
  • Panel material:Iron cabinet
  • IP rate:IP68
  • Gray scale per color:65536 levels
  • Colors:281 trillion billion
  • Type:Outdoor electronic advertising led display screen

IP65 Waterproof  Iron Cabinet 640x640 mm Outdoor Building Wall Fixed 6500nits Brightness P5 LED Outdoor Cabinet




Feature and Advantage

1.P3 indoor LED screen display

2.  LED display has High brightness Contrast:4000:1, which is a very high level to ensure a vivid image of our LED display screen system

3.   LED display use First-class LED chip: Supplied by Cree & other high strictly selected LED chip to ensure the long lift-time and high brightness of our LED display screen system

4.  LED display has Clear vivid image quality even in direct, full-on sunlight to ensure you attracts more audience to get short ROIof  your LED display screen's investment.

4LED display has CE certification and .Long-term Brightness:More 7000-nit brightness(for outdoor full color)(2000 nits brightness for indoor full color)capacity throughout product lifetime of the LED display screen.

5.Easy Installation & Using: easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED display screen system

6.Convenient Servicing: Front and rear cabinet access make the maintance work very convenient and low cost to help you concentrate more time and energy on your main marketing promotion business.



Our service



1.Your inquiry related to our products or price will be replied in 24hrs

2.OEM&ODM,any your customized lightings we can help you to design and put into product

3.Distributoership are offered for your unique design and some our current models

4.Protection of your sales area,ideas of design and all your private information

5.Top Quality+Reasonable Price+Responsible After Service=Successful & Win

6. Export countries :  Peru,  Mexico, Colombia, Turkey, US, UK, etc.



Trade Terms



1.Payment: T/T 35% as deposits before production, T/T 65% balance before delivery

2.Shipping freight are quoted under your requests

3.Shipping port: Shenzhen, Mainland China

4.MOQ:1sqm p4 one line english led message signboard

5.Delivery time: 10-15days after receive pre-payment



LED Screen Parameter



Technical DataModelPH5
Pixel Pitch5mm
Physical Density(pixels/m²)40000dots
LED Shape & SizeSMD 2727
LED Arrangement1R1G1B
Module Size(mm)160×160
Module Resolution32*32
Drive ModeDynamic 1/8 Duty Constant Current
Brightness≥6500cd/m²
Contrast(cd/m²)≥2000:1
View Angle, 50% Brightness140°/140°
Minimum View Distance5m
Grey Scale10bits/1024levels
Color Capacity1.07billion
Maximum Power Consumption700W/m²
Ave.Power Consumption280W/m²
Operation Power SourceAC90-260V 50-60HZ
Frame Frequency60-85HZ
Refresh Rate240-1000HZ
Brightness Adjustment0-100% 8 levels automatic
Gamma Correction-5.0-5.0
Correction Scale Level16bits
Color Temperature5000-9300K
Brightness CorrectionPixels, Module, Cabinet Correction
Input Source SupportComposite, S-Video,Component,VGA,DVI,HDMI,SDI, HD_SDI
Control DistanceUTP CAT5E:100m;Multi-mode Fiber:50m;Single-mode Fiber:10km
Operating Temperature-40°C - 65°C
Operating Humidity10-90%RH
Operating Life Span100,000Hours
MTBF5000 Hours
Protection RatingsIP65
Out of Control Rate0.01%



Company Information

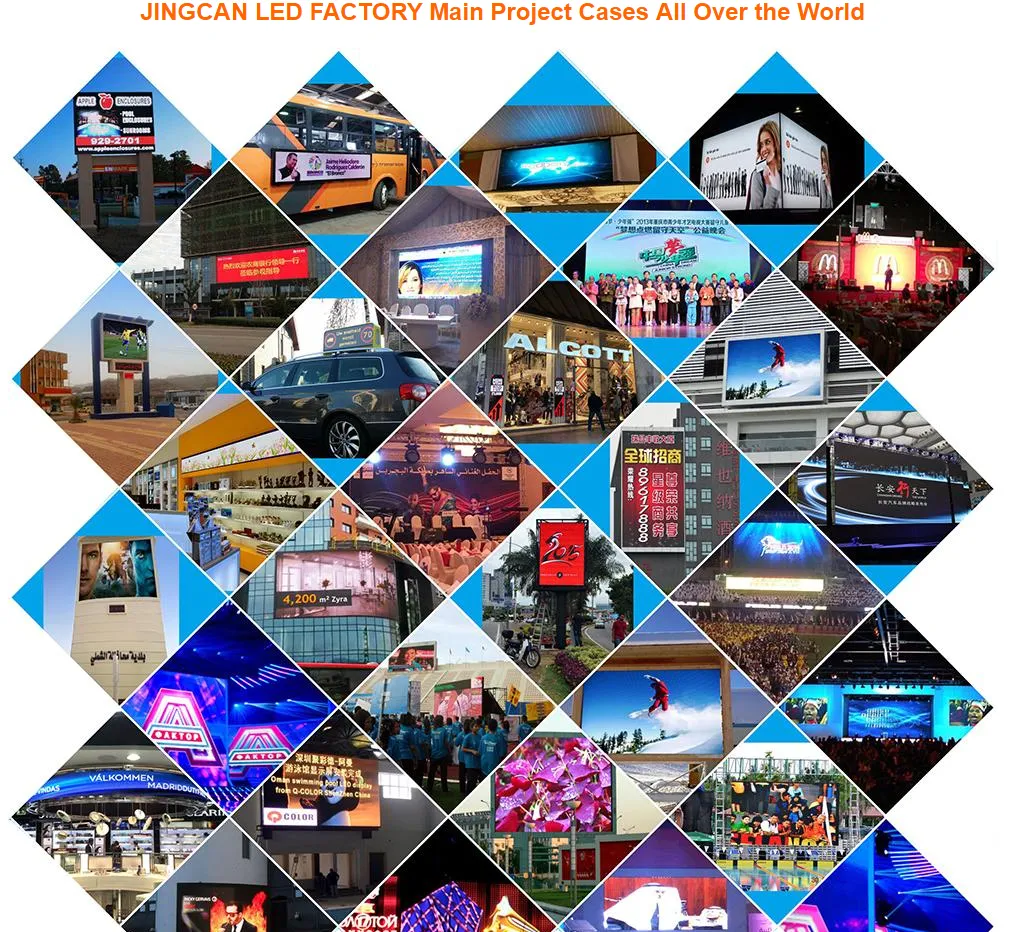

JINGCAN OPTO-TEC CO.,LTD was established in 2013, we are a professional LED media/video display exporter and manufacturer. Our company is located in Shenzhen,the focus of high end LED display technology professionals in China. Top management with  LED display experience over 80% . So far, our LED display is widely used in advertising media,sports venues and road traffic, stock exchange,financial information shows the information publicity and dislay of port terminals and airport terminals, and business propaganda in shopping and shopping centers.Exported to Germany,UK,USA, South Korea,North Korea,Thailand,Italy,Russia,Malaysia and other countries and regions. At any time, we are the best one of your reliable choice.
