500*500 Outdoor P5.95 Led Cast Cabinet Display Digital Billboards
500*500 Outdoor P5.95 Led Cast Cabinet Display Digital Billboards
500*500 Outdoor P5.95 Led Cast Cabinet Display Digital Billboards
500*500 Outdoor P5.95 Led Cast Cabinet Display Digital Billboards
500*500 Outdoor P5.95 Led Cast Cabinet Display Digital Billboards
500*500 Outdoor P5.95 Led Cast Cabinet Display Digital Billboards
500*500 Outdoor P5.95 Led Cast Cabinet Display Digital Billboards
500*500 Outdoor P5.95 Led Cast Cabinet Display Digital Billboards
500*500 Outdoor P5.95 Led Cast Cabinet Display Digital Billboards
500*500 Outdoor P5.95 Led Cast Cabinet Display Digital Billboards
500*500 Outdoor P5.95 Led Cast Cabinet Display Digital Billboards
500*500 Outdoor P5.95 Led Cast Cabinet Display Digital Billboards
500*500 Outdoor P5.95 Led Cast Cabinet Display Digital Billboards

500*500 Outdoor P5.95 Led Cast Cabinet Display Digital Billboards

Model NO.
JC-FSO-PH5.95MM
Quantity:
  • Tube Chip Color:FULL COLOR
  • Display Function:Video;Images
  • Chip Color:RGB
  • Brightness:5500nits
  • Panel material:Die cast al- cabinet
  • IP rate:IP65
  • Weight:8KG/cabinet
  • Application:Fixed,Rental ,stage background
  • Density:28224 pixels/sqm
  • Place of Origin:CN;GUA
  • Application:Outdoor
  • Color:RGB
  • Panel Size:250mm*250mm
  • Pixel Pitch:5.95
  • Model Number:JC-FSO-PH5.95MM
  • Brand Name:JC
Product Overview

What is Led Display

It is a kind of LED display screen with rich colors. It is composed of three primary colors (red, green and blue) display unit board. The 256 gray levels of red, green and blue constitute 16777216 colors. The electronic screen can display dynamic images with rich colors, high saturation, high resolution and high display frequency.
FEATURES AT A GLANCE
Full color LED display screen has clear picture, uniform color and high brightness.Good effect, higher reliability and stability.Display mode diversification: support multiple display modes.Easy to operate: using general video playing software makes the system operation very convenient.

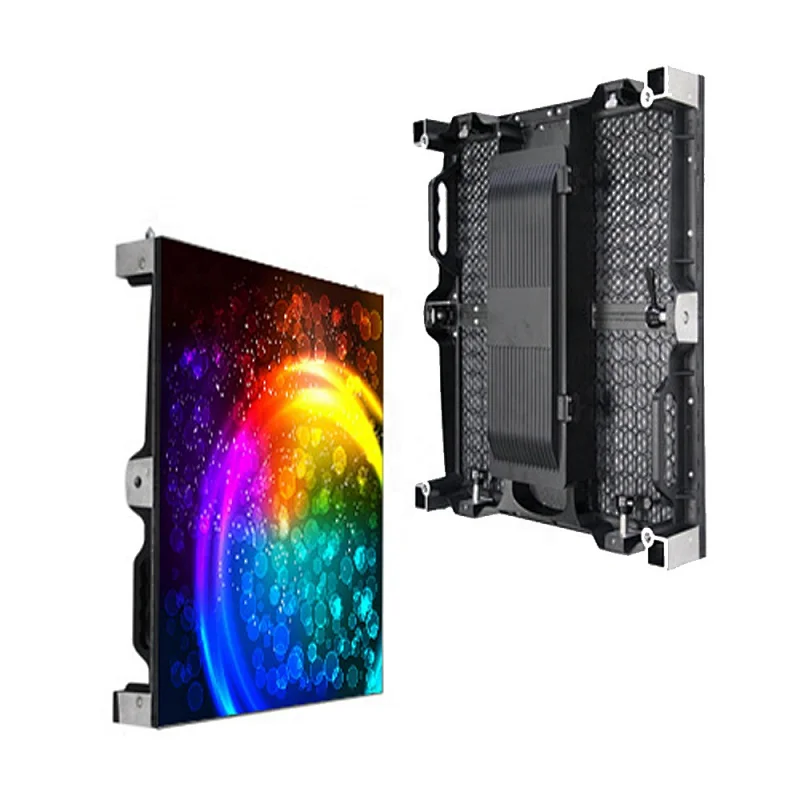

Back side
Front side
Side
PRODUCT SPECIFICATIONS
Item
Item
Item
Pixel pitch
5.95mm
Cabinet size
500mmWx500mmHx80mmD
LED configuration
SMD2727
Quantity of module
4pcs
Module size
250mmWx250mmHx25mmD
Power supply
5V 60A 300W
Pixel
1764dots
Pixel per cabinet
84x84
Pixel resolution
42x42
Weight
8.5kgs
Port type
HUB75
Best viewing distance
>5.95m
Brightness
5500nits
Best viewing angle
160 degrees(H)x140 degrees(V)
Pixel configuration
1R1G1B
Pixel configuration
storage:-35℃-+85℃ [-31℉-+185℉]
Drive type
constant drive
Working Temperature
-20℃-+60℃ [-4℉-+140℉]
Scan Mode
1/13 scan
Operation humidity
20%-90%

Power consumption
Max 900W
Density(sq.m)
28224dots
AVE 300W
Protection classification
IP65
PRODUCT CONFIGURATION
Rong 60A/40A power supply
Receiver card
Power/Signal Cable
SALES AND SERVICE NETWORK
Successful Project
Project in Australia
Project in Germany
Project in Thailand
SIMILAR PRODUCTS

1.
Q: Are you a factory or trading company?

A: We are a OEM/ODM factory.

2.
Q: What payment methods your company accept?

A: We accept most ofthe payment methods,but mainly accept T/T, L/C, Western Union, Paypal and MoneyGram.

3.
Q: How long is the warranty time for your products?

A: Our officially promised warranty time is 1-3years after delivery at best.

4.
Q: I haven't done business with you guys before,how can i trust your company?

A: Our company has been in Alibaba. com for almost 6 years, which is longer than most of our fellow suppliers,we've been golden suppliers

5.
Q: what's the shipment terms and delivery time of your company?

A: Well, they depends on the quantity of your order. As you know, we need time to manufacture the machines. but mostly, the shipment time is 3-8 working days after delivery. For Delivery way, for Sample and Bulk order < 100KG, we will kindly suggest Express and Air freight, when Air freight and Sea shipping for Bulk order >100KG. As for detailed cost, it depends on your final order.

6.Q: Do you give any discount ?

A: I'll surely try my best to help you get those by the best price and good service at the same time.

7.Q: I would like to ask you if it's possible to have my logo ·····on the product.

A: We hope you know that our company perfectly support customized logo service. But, we also hope you know that it's an extraservice, so a little ··bit extra service fee is needed.
