Model NO.
P16 DIP
Price:
USD 17.00-18.00
Minimum order quantity:
1
Quantity:
  • Application:Outdoor
  • Color:Full Colour
  • Panel Size:256x256mm
  • Pixel Pitch:16mm
  • Place of Origin:Shenzhen, Guangdong,China (Mainland)
  • Model Number:P16 DIP
  • Brand Name:JC

P16 outdoor hd full color led display modules



Quick Details

1. p16 outdoor hd full color led display size:256mm*256mm

2. Brightness:4500cd/sqm

3. Pixel density:3906dots/sqm

4. Average Power:300w/sqm

5. IP rate: IP65  waterproof

6. Design life:100000hours

7. Scan Mode: 1/4 Scan

Introduction



Energy saving led display is famous for low consumption. This is the trend for future advertising. Compared with traditional printed advertising, energy saving led display is outstanding for lower unit cost, environment friendly and vivid presentation.
Especially new IC card, MBI 5035 can save 50% power supply with longer lifespan and excellent cooling. There is a great money reduction for large size led display advertising.
With the realization of green environment, People pay more and more attention to ways of reducing power consumption.



Feature and Advantage



1.High brightness Contrast:4000:1, which is a very high level to ensure a vivid image of our LED display screen system

2. First-class LED chip: Supplied by Cree & other high strictly selected LED chip to ensure the long lift-time and high brightness of our LED display screen system

3.Clear vivid image quality even in direct, full-on sunlight to ensure you attracts more audience to get short ROIof  your LED display screen's investment.

4.Long-term Brightness:More 7000-nit brightness(for outdoor full color)(2000 nits brightness for indoor full color)capacity throughout product lifetime of the LED display screen.

5.Easy Installation & Using: easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED display screen system

6.Convenient Servicing: Front and rear cabinet access make the maintance work very convenient and low cost to help you concentrate more time and energy on your main marketing promotion business.



Our service



1.Your inquiry related to our products or price will be replied in 24hrs

2.OEM&ODM,any your customized lightings we can help you to design and put into product

3.Distributoership are offered for your unique design and some our current models

4.Protection of your sales area,ideas of design and all your private information

5.Top Quality+Reasonable Price+Responsible After Service=Successful & Win

6. Export countries :  Peru,  Mexico, Colombia, Turkey, US, UK, etc.



Trade Terms



1.Payment: T/T 30% as deposits before production, T/T 70% balance before delivery

2.Shipping freight are quoted under your requests

3.Shipping port: Shenzhen, Mainland China

4.MOQ:1sqm

5.Delivery time: 15days after receive pre-payment



LED Screen Parameter



Description

Technical parameter

Unit module

Module size

256*256mm

Pixel pitch

16mm

Pixel density

3906dots/sqm

Pixel configuration

1R1G1B

Led specification

Φ3ellipse

Pixel resolution

W:16dots*H:16dots

Cabinet

Dimension

1024mm*1024mm*150mm

Quantities of module

16pcs

Power supply

4pcs

Thermal discharge

Fan*4pcs

Total weight

65kg

Best viewing distance

10-100m

Temperature

Storage: -35°C~+85°C

Working: -35°C~+85°C

Thickness

15cm can adjustable

Remarks: cabinet size can changed, upon project need.

Power

Working voltage

AC220V/110V±10%

Average power consumption

≤300W

Max. Power consumption

≤1000W/sqm

Current

≤20mA(single LED)

Control system

CPU

Pentium4 or above

Operating system

WIN98/2000/NT/XP

Control method

Synchronization

Main technical parameter

Driving device

1/4 scan constant current

Drive type

Constant Current driver IC

Refresh frequency

≥400Hz

Grey scale/colors

256 levels of each color(R/G/B)/16.7M color

Brightness of white balance

More than 7500cd/sqm

Brightness adjustment

256 levels of each color(R/G/B)by software

Operating ambient humidity

10%--95%

Video signal

PAL/NTSC

Control system

DVI display card+full color controller card

MTBF

≥10,000hours

Life span

≥100,000hours

Flatness

Tolerance of interpixel ≤0.3mm

Tolerance of modules clearance≤0.6mm

Power switch

Automatic switch

Display mode

1024*768

Software

LED media player

Detailed Images

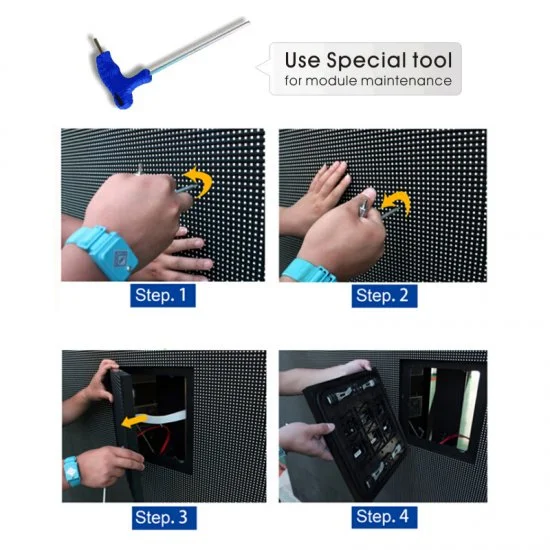

Module service: Front service

P16mm SMD Front Maintenance Outdoor LED Display Module 2

Cabinet size: 1024mm*1024mm, could be customized according to module size.

simple cabinet1960x960 cabinet



P16 outdoor led display application:

P16(4)P16 01

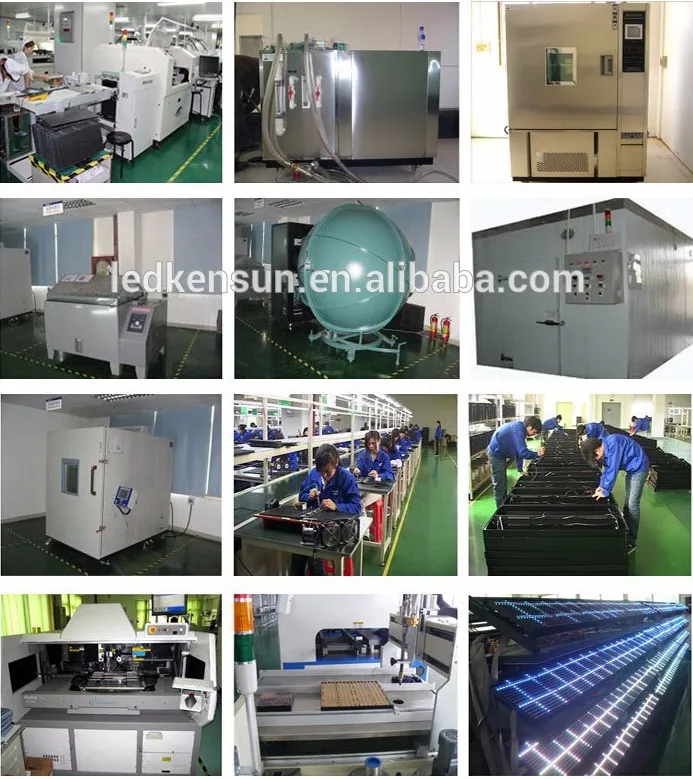

Company Information

JINGCAN OPTO-TEC CO.,LTD was established in 2013, we are a professional LED media/video display exporter and manufacturer. Our company is located in Shenzhen,the focus of high end LED display technology professionals in China. Top management with  LED display experience over 80% . So far, our LED display is widely used in advertising media,sports venues and road traffic, stock exchange,financial information shows the information publicity and dislay of port terminals and airport terminals, and business propaganda in shopping and shopping centers.Exported to Germany,UK,USA, South Korea,North Korea,Thailand,Italy,Russia,Malaysia and other countries and regions. At any time, we are the best one of your reliable choice.

 Project



 company information





Packaging & Shipping

Packaging:

Usually, there are three tyeps of package design.

Firstly, we pack the LED display in the paper carton.



package 01



Secondly, we will pack the LED display in the flight case if  customer request for frequent movement.




Thirdly, the favorable package method is wooden case package because of its lower cost and instant usage.


Note: It also could mark the brand as clients requirement.

Shipping:

We could provide air shipping, sea shipping and international Express according to clients needs.


FAQ

1. How can I place an order?
Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. For designing or further discussion, it is better to contact us with Skype/email /phone, in case of any delays.

2. What kind of display we provide?
We have indoor/outdoor/led curtain/mobile LED /rental LED display /LED stage/LED Dance Floor/Irregular LED display for you choose.

3. What about the lead time for order?
Always: 3-20 days, as your order quantity, sometimes we have stock, can delivery within 5 days

4.How about the warranty ?
We have two years warranty.
