Model NO.
JC-FSO-PH3.91MM
Quantity:
  • Place of Origin:CN;GUA
  • Application:advertising
  • Color:full color
  • Panel Size:250mm*250mm
  • Pixel Pitch:3.91mm
  • Model Number:JC-FSO-PH3.91MM
  • Brand Name:JC
  • Product name:P3.91 outdoor LED display module
  • Certificate:CE ROHS FCC
  • Brightness:3500cd/sqm
  • Warranty:1-3 Years
  • Module size:250*250mm
  • Life span:100000hours
  • Refresh rate:1920Hz-3840Hz
  • Viewing angle:140/140 Degree
  • Scan mode:1/13 scan
  • Module resolution:64*64 Dot

P3.91 Outdoor LED advertising display module



Feature and Advantage



(1) High resolution:

Through the high-brightness wick, it perfectly displays colorful and clear pictures;


(2) Wide field of vision:

It can display a wide viewing angle of 160 ° horizontally and vertically, and it is consistent with each light-emitting wick;


(3) Surface is flat:

Use customized kit mask to keep the contrast height and flatness of the display screen consistent, good flatness and smooth feel;


(4) Seamless stitching:

Through precise design, the splicing between the module and the module is kept within 0.1mm, which makes the plane more perfect, and also completes various splicing more effectively;


(5) Super long life:

Our company uses high-quality wicks to ensure the service life of the wicks and optimize aspects of performance in the design of the PCB, so that the product life is longer;



(6) Good stability:

Regardless of transportation or installation, the stability and safety of the product are guaranteed in various ways. Bring better products and services to customers;



Our service





1.Your inquiry related to our products or price will be replied in 24hrs

2.OEM&ODM,any your customized lightings we can help you to design and put into product

3.Distributoership are offered for your unique design and some our current models

4.Protection of your sales area,ideas of design and all your private information

5.Top Quality+Reasonable Price+Responsible After Service=Successful & Win

6. Export countries :  Peru,  Mexico, Colombia, Turkey, US, UK, etc.





LED Screen Parameter



Technical DataModelPH3.91
Pixel Pitch3.91mm
Physical Density(pixels/m²)65536
LED Shape & SizeSMD 3 in 1
LED Arrangement1R1G1B
Module Size(mm)250×250
Module Resolution64*64
Drive ModeDynamic 1/16 Duty Constant Current
Brightness≥3500cd/m²
Contrast(cd/m²)≥1000:1
View Angle, 50% Brightness140°/140°
Minimum View Distance3m
Grey Scale10bits/1024levels
Color Capacity1.07billion
Maximum Power Consumption1000W/m²
Ave.Power Consumption300W/m²
Operation Power SourceAC90-260V 50-60HZ
Frame Frequency60-85HZ
Refresh Rate240-1000HZ
Brightness Adjustment0-100% 8 levels automatic
Gamma Correction-5.0-5.0
Correction Scale Level16bits
Color Temperature5000-9300K
Brightness CorrectionPixels, Module, Cabinet Correction
Input Source SupportComposite, S-Video,Component,VGA,DVI,HDMI,SDI, HD_SDI
Control DistanceUTP CAT5E:100m;Multi-mode Fiber:50m;Single-mode Fiber:10km
Operating Temperature-40°C - 65°C
Operating Humidity10-90%RH
Operating Life Span100,000Hours
MTBF5000 Hours
Protection RatingsIP65
Out of Control Rate0.01%

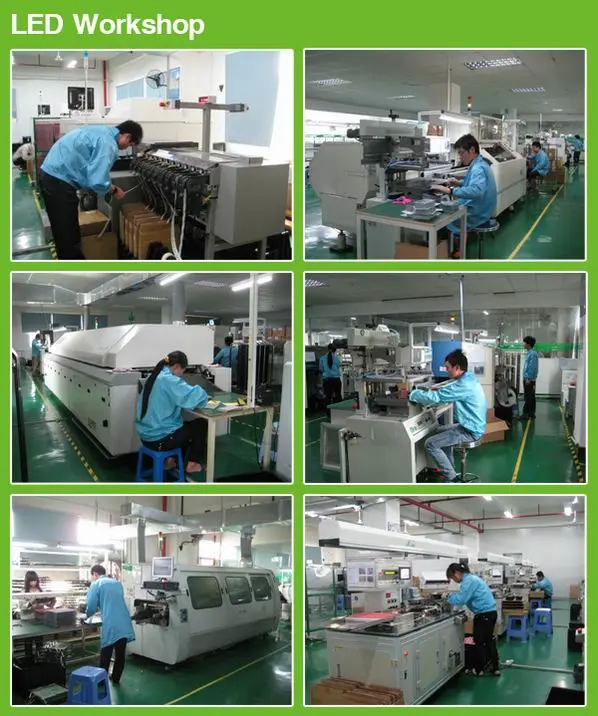

Work Shop:



 P12-Full-Color-Outdoor-LED-Display-320mm-320mm-LED-Display-

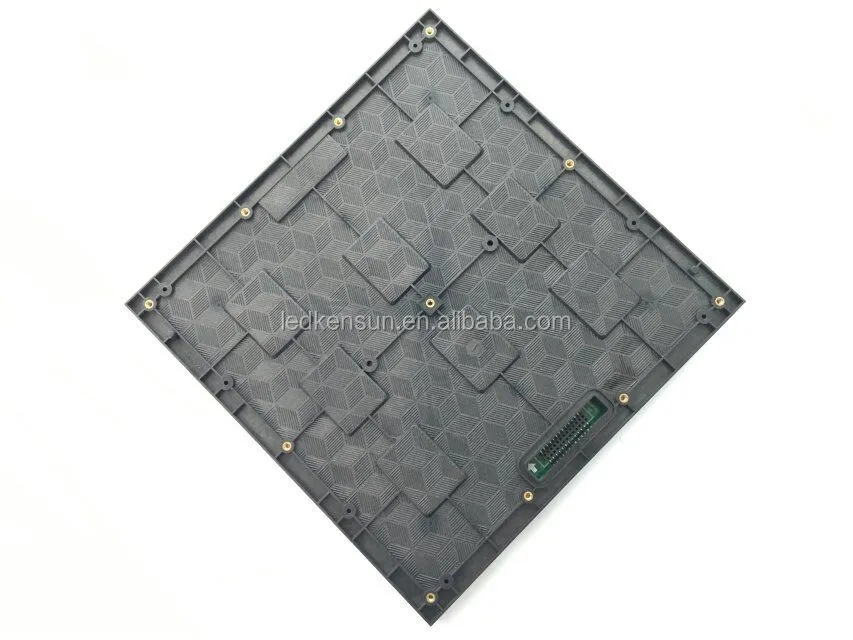

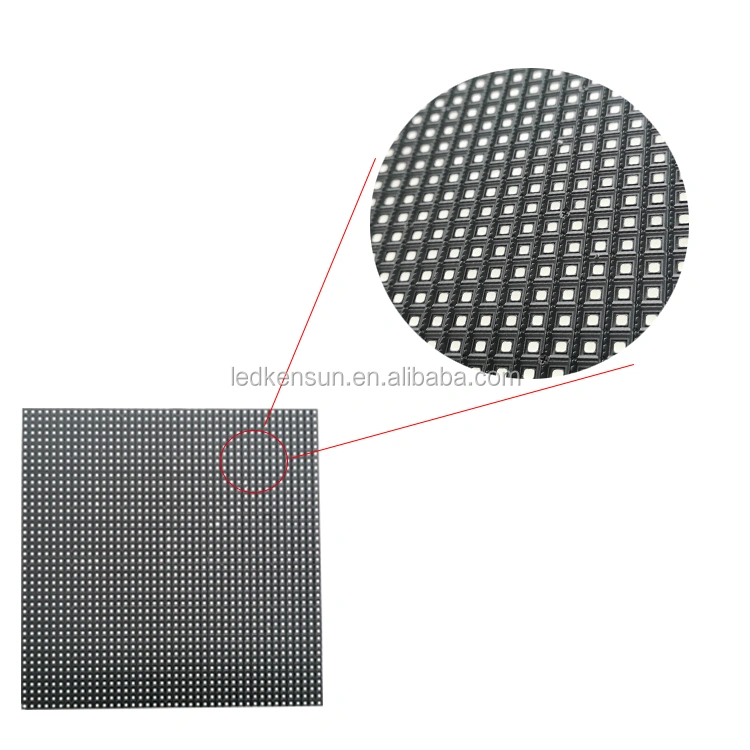

P5.95 module detail: 250mm*250mm size

p5-95 smd outdoor.jpg



P3.91 250x250P3.91250x250

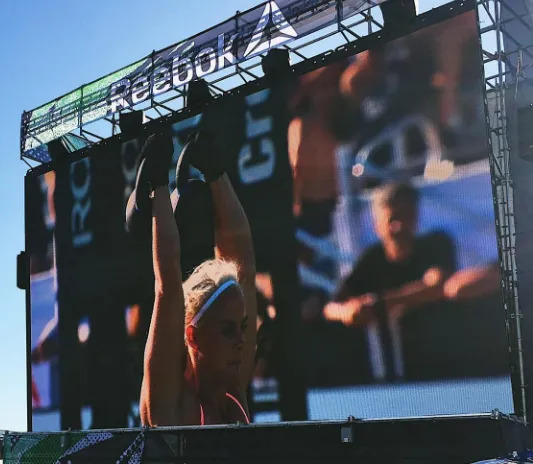

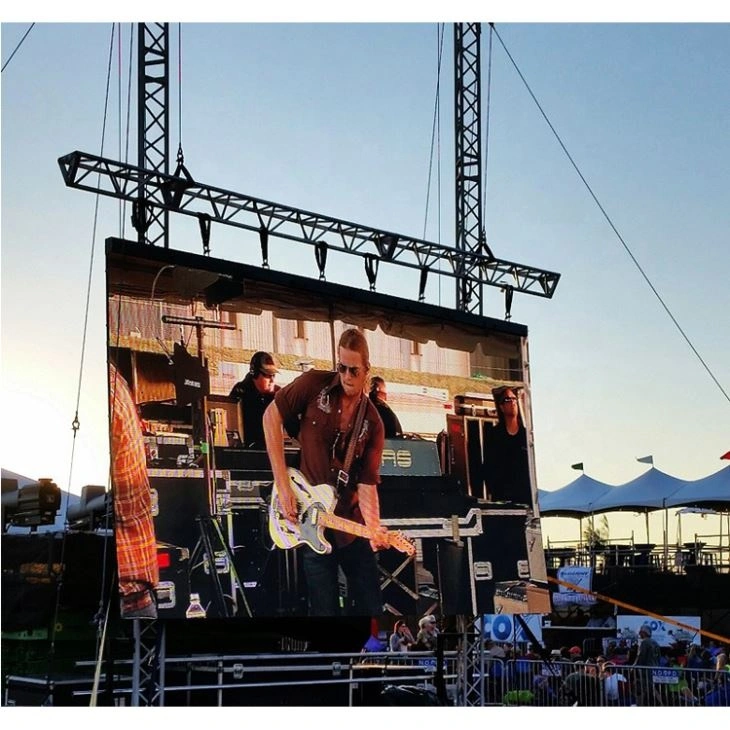

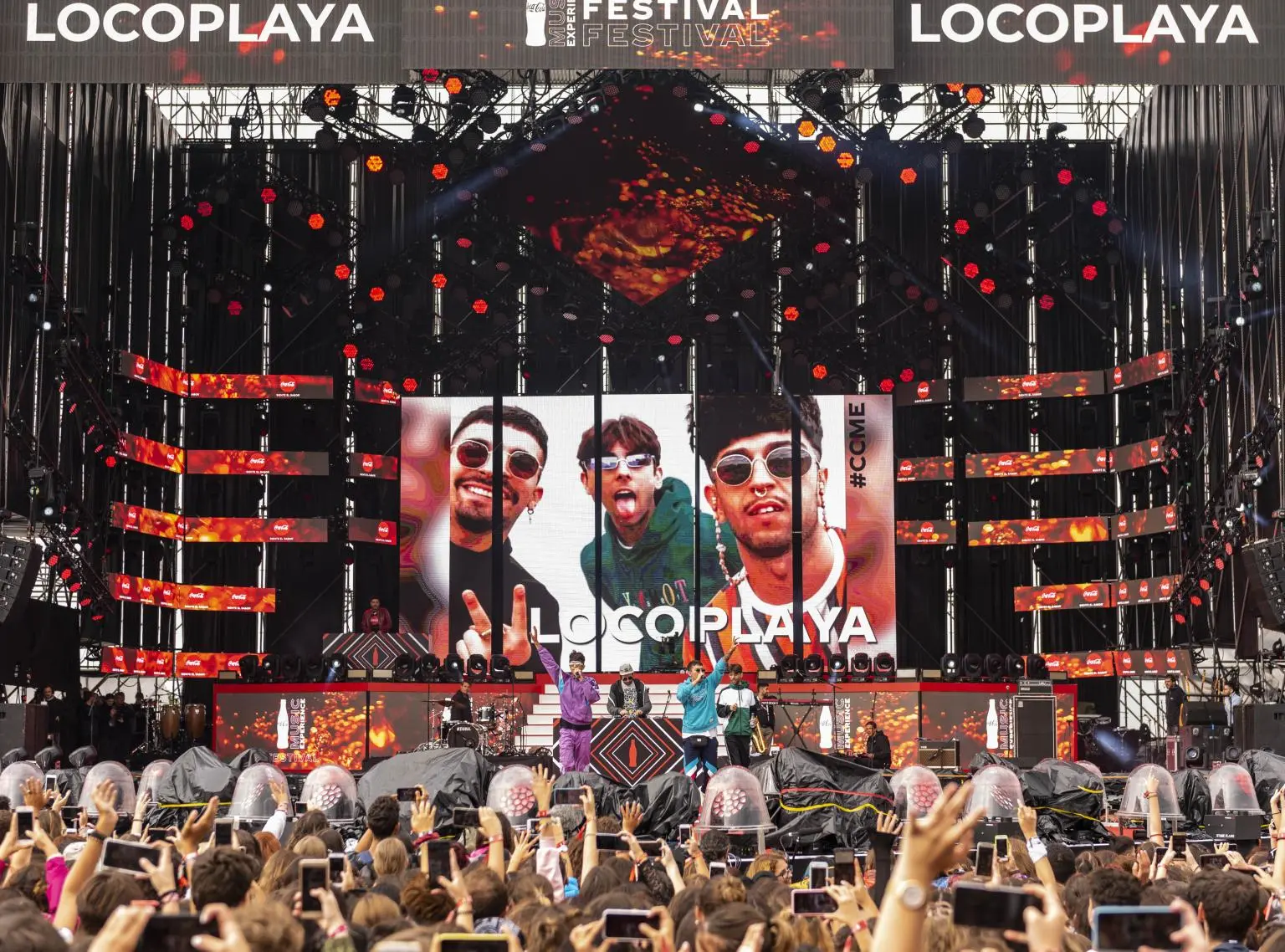

Application:




 outdoor-full-color P5.95.jpg



Company Information

Shenzhen Jingcan Opto-Tech Co., Ltdis the professional supplier of LED display solutions, which has been specialized in R&D, manufacturing and marketing of LED Display Screens. Located in our own industrial park, Eachinled covers a district of more than 10, 000 m², of four floors in one block. We could ensure production capacity of more than 5, 000 square meters per month for the LED displays, thanks to our well equipped automatic production lines, and skilled workers.



Our R&D group is made of more than 10% of total employees and most of them are senior technicians, with more than 10 years’ experiences in the LED field. They are involved in all their efforts, from design of projects, to finished products’ performances, in which way, we could provide the most suitable solutions and customized products according to customers’ requests. We have continuously focused on developments of new led display products, with more and more investment, and technical efforts; With excellent, qualified products, and outstanding services, Eachinled has been highly praised by clients of domestic and overseas.

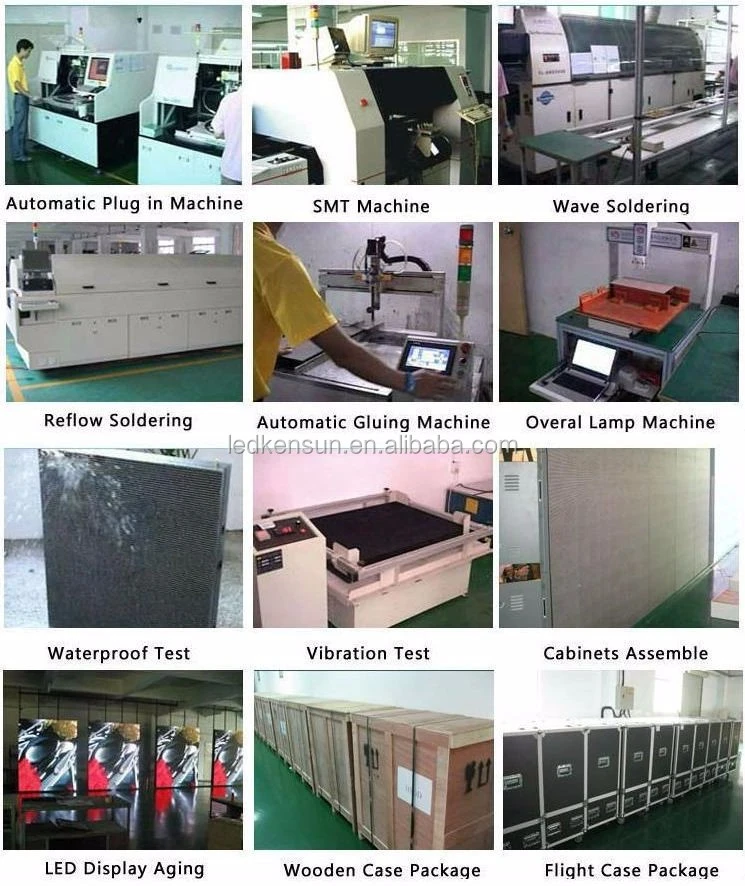

JINGCAN LED FACTORY WORKING STUDIO 02





Packaging & Shipping

Packaging:

Usually, there are three tyeps of package design.

Firstly, we pack the LED display in the paper carton.



Secondly, we will pack the LED display in the flight case if  customer request for frequent movement.



Thirdly, the favorable package method is wooden case package because of its lower cost and instant usage.

packge

Note: It also could mark the brand as clients requirement.

Shipping:

We could provide air shipping, sea shipping and international Express according to clients needs.



FAQ

Q1. What is DIP & SMD ?

A: DIP-- It means put the bases of DIP packaging lights through PCB, and fill the pin in lamp holders by welding.
SMD-- It means put SMT packing lapms weld on PCB.

Q2. DIP and SMD outdoor LED Display , which is better?

A:Compared with DIP Display, SMD display have the advantage of light weight, wide visual angle, good color fidelity, and better color uniformity.For production, SMD is easy to use automatic machine to produce . Save the labor cost and able to large-scale production. In the future , SMD display will have more competitive price. But DIP Display also have the advantage. The waterproof function , the brightness, moisture-proof and UV protection function. Performance of DIP display is better.

Q3. Have you any certification for LED display?

A: Yes, we have CE, ROHS,FCC etc.

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by sea or air. By sea is need to about 30-40 days. By Air is need to abour 5-7days.

Q5. How about the guarantee of led display?

A: We guarantee all of our module and spare parts two years.

Q6. Is it ok to print my logo on led display product?

A: Yes. Please inform us formally before our production .

Q7: What is the payment methods?

A: T/T , usually 30% prepayment before production, 70% balance to be paid before delivering,it also change according to total quantity

Q8: What's the min. order quantity?

A: LED Screen 1 sqm / LED module 1 pcs.
