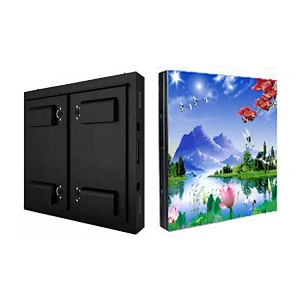

p4 outdoor led display fixed ads cabinet stage 1024x1024mm led screen
p4 outdoor led display fixed ads cabinet stage 1024x1024mm led screen
p4 outdoor led display fixed ads cabinet stage 1024x1024mm led screen
p4 outdoor led display fixed ads cabinet stage 1024x1024mm led screen
p4 outdoor led display fixed ads cabinet stage 1024x1024mm led screen
p4 outdoor led display fixed ads cabinet stage 1024x1024mm led screen
p4 outdoor led display fixed ads cabinet stage 1024x1024mm led screen
p4 outdoor led display fixed ads cabinet stage 1024x1024mm led screen
p4 outdoor led display fixed ads cabinet stage 1024x1024mm led screen
p4 outdoor led display fixed ads cabinet stage 1024x1024mm led screen
p4 outdoor led display fixed ads cabinet stage 1024x1024mm led screen

p4 outdoor led display fixed ads cabinet stage 1024x1024mm led screen

Model NO.
JC-FSO-PH4MM
Quantity:
  • Place of Origin:CN;GUA
  • Usage:Outdoor
  • Tube Chip Color:FULL COLOR
  • Display Function:Video
  • Pixels:4mm
  • Brand Name:JC
  • Model Number:JC-FSO-PH4MM
  • Screen Dimension:512X512MM
  • Chip Color:Full colour
  • IP rate:IP65
  • Brightness:6500nit
  • Panel material:Die cast al-cabinet
  • LED type:SMD1921
  • Weight:9KG/PCS
  • Configurations:1R1G1B
  • Gray scale per color:65536 levels



p4 outdoor led display rental cabinet stage background led screen



Specification



Pixel Pitch

4mm

Module Size

256mm ×128mm

Module Resolution(Pixel)

64dots ×32dots

Pixel Density

62,500 dots

LED Type

SMD 3 in 1

Pixel Configuration

1R1G1B

Wavelength (R.G.B)

R:625±2nm G:525±2nm B:470±2nm

Drive Mode

Dynamic 1/16 Duty Constant Current

Cabinet Size

512 ×512 ×80mm

Cabinet Resolution

128dots ×128dots

Brightness

≥ 6,500cd

Contrast

≥2000:1

Viewing Angle

140°(Horizontal )/140°(Vertical )

Minimum Viewing Distance

4m

Grey Scale

10bits/1024levels

Color Capability

16,777,216

Color Temperature

5000-9300K

Average Power consumption

400W

Working Voltage

AC 220V/110V s±15% 50-60 HZ

Frame Frequency

60-85HZ

Refresh Frequency

1920-3840HZ

Brightness Correction

Pixel, Module, Cabinet Correction

Operating Temperature

Static:-40°C~+85°C Working:-20°C~+60°C

Operating Humidity

10-90% RH

LED Lifespan

100,000 hours

MTBF

≥50,000 hours

Computer Operation System

Win 98/ Win XP/ Win 2000

Video Signal Input

RF,S-Video,RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite

Video Signal Output

RF, S-Video, GB, RGBHV, YUV, YC etc.

Graphics Card

DVI Graphics Card

Control Distance

UTP CAT5E:100m Multi-mode Fiber:500m Single-mode Fiber:10km

Control System

LINSN OR DB-STAR

Software

LED studio 10.0

Waterproof Level

IP65

Installation

Wall mount, hung and stand structure

Out of Control Rate

0.01 %





Detailed Images



2015-12-19 3.25.02.png



2015-12-19 5.12.58.png








Packaging & Shipping

Packing: Anti-shaking wooden cabinet/Air flight case/strong carton

Shipping port: Shenzhen, China

Shipping way:Air;Express;Ocean;Land Transportation

Delivery time: 7-15 working days after confirm receipt  payment in advance.

Long working life: In the Maintenance period, free of all maintenance charge.After maintenance period only charge the material costs fees.



Our Services

1. Pre-sales service:

a) Our company can arrange professionals to conduct site installation and debugging in strict accordance with the requirements of the schemes and the original manual. If there is any special requirement, it is necessary to make changes of part installation scheme, we will coordinate with users. Our company can ensure the consistence of completion time and contracted time.  Any problems caused by natural factors or man-made, we will discuss with client to find solutions.
b) Our company can train the users based on the manual.  The training include system use, system maintenance and equipment protection.



2. After-sales service:

a) Service principles: response in time, solve problems as soon as possible and ensure the use.
b) Service period: In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.
c) Service scope: If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare parts such as power and chips etc.
d) Under normal use and storage, Our Company will be responsible for the equipments.


Production Flow

Product Lines.jpg

FAQ

1)  Q: Are you a factory or trading company?

A:We are a OEM/ODM factory.

2) Q:What payment methods your company accept?

A:We accept most ofthe payment methods,but mainly accept T/T,L/C,Western Union,Paypal and MoneyGram.

3) Q:How long is the warranty time for your products?

A:Our officially promised warranty time is 1-3years after delivery at best.

4) Q:I haven't done business with you guys before,how can i trust your company?

A:Our company has been in Alibaba.com for almost 6 years,which is longer than most of our fellow suppliers,we've been golden suppliers for years.what'smore,we've got quite a lot authority certificates,for example,CE,UL,RoHS,FCC, Alibaba onsite check certificate. I hope those above will be persuasive enough.Our Trade Assurance Limit is US $82,000, and it is still going up.

5) Q:what's the shipment terms and delivery time of your company?

A:Well, they depends on the quantity of your order.As you know ,we need time to manufacture the machines.but mostly ,the shipment time is 3-8 working days after delivery.For Delivery way, for Sample and Bulk order < 100KG, we will kindly suggest Express and Air freight, when Air freight and Sea shipping for Bulk order >100KG.As for detailed cost, it depends on your final order.

6) Q:Do you give any discount ?

A:I'll surely try my best to help you get those by the best price and good service at the same time.

7) Q:I would like to ask you if it's possible to have my logo on the product.

A:We hope you know that our company perfectly support customized logo service. But, we also hope you know that it's an extraservice,so a little bit extra service fee is needed.
