Model NO.
JC-FSO-PH10MM
Price:
USD 2000.00-2100.00
Minimum order quantity:
1
Supply Ability:
1 / Month
Country of Origin:
Shenzhen
Quantity:
  • Place of Origin:CN;GUA
  • Usage:Indoor
  • Tube Chip Color:FULL COLOR
  • Display Function:Graphics
  • Pixels:high quality P10 transparent glass led display for advertising
  • Brand Name:JC
  • Model Number:JC-FSO-PH10MM
  • Screen Dimension:500X500MM
  • Chip Color:Single colour or tri-color
  • Brightness:6500nit
  • IP rate:IP65
  • Weight:15KG/sqm
  • Panel material:Al-frame cabinet
  • Refresh rate:800Hz
  • Density:full color
  • Resolution:10000
  • Configurations:1R1G1B
  • Type:high quality P10 transparent glass led display for advertising

P10 transparent  glass led display with 320x320mm 1/2 scan  5500 brightness



Quick detalied
  • Pixel pitch: 10mm
  • Encapsulation: 1RGB
  • Module resolution (L x H): 32X32mm = 1024 pixel dots
  • Pixel density: 10,000 pixel dots/m²
  • Brightness of white: 5500CD/m² at least



Parameter





Part Number

JC-FSO-PH10MM

Resolution

32(H)×32(V)

Pixel Pitch

10mm

LED Configuration

1R1G1B 3-IN-1 SMD

Pixel Density

10,000pixels/ m2

Module Size

320*320mm

Driving IC

MBI5024

Driving Method

1/2Scan, Constant Current

Cabinet Weight

14kg/sq.m.

Mechanical Ratings

Hanging Weight Support

2T

Surface Flatness

Gap<0.5mm

Optical Ratings

Brightness

>5500cd/ m2

View Angle

150°/15

Gray Scale

8bits input, correction with 14bits

Display COLOR

16.7M

Brightness Adjustment

0~100%

Power Supply

Operation Power

90~260V 50~60Hz

Max. Power Consumption

400W/ m2

Average Power Consumption

180W/ m2

Control System

Control Mode

Synchronous display with control PC by DVI

Frame Update Frequency

60~85Hz

Screen Refresh Frequency

300~1000Hz

Gamma Correction

-5.0~+5.0

Support Input

Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI

Control Distance

Ethernet cable<120m or Fiber Optic<10Km

Support VGA Mode

1024×768, 1280×1024, 1600×1200, 1920×1280

Brightness Correction

Pixel, Module, Cabinet

Environmental

Operating Temperature

-20°~+60°

Operating Humidity

10~95% RH

Operating Life

100,000hours

MTBF

5000hours

Protection Level

~

Out of Control Rate

<0.02%

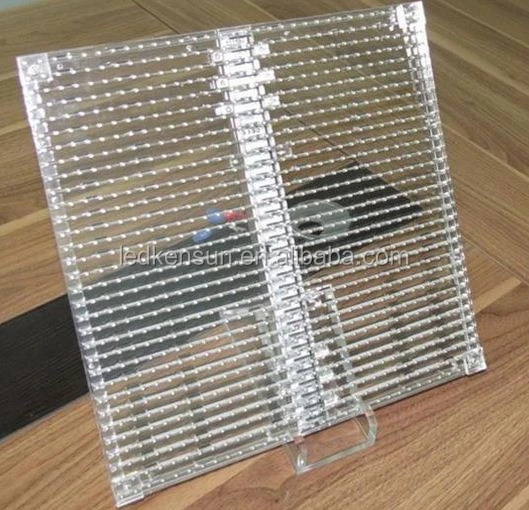

Product Picture




glass display 08.JPGHTB1_ygQHXXXXXcTXpXXq6xXFXXXa.jpg

glass display 01











Product module

glass display 22.JPGglass display 25.JPG

glass display 26.JPG





Production Flow

Product Lines.jpg

Packaging & Shipping

Usually, there are three tyeps of package design.

Firstly, we pack the LED display in the paper carton.

Module Package 01

Secondly, we will pack the LED display in the flight case if  customer request for frequent movement.

package

Thirdly, the favorable package method is wooden case package because of its lower cost and instant usage.

wooden case 01.jpg
