P1.875 indoor HD COB Shelf Signage LED Display wedding stage
P1.875 indoor HD COB Shelf Signage LED Display wedding stage
P1.875 indoor HD COB Shelf Signage LED Display wedding stage
P1.875 indoor HD COB Shelf Signage LED Display wedding stage
P1.875 indoor HD COB Shelf Signage LED Display wedding stage
P1.875 indoor HD COB Shelf Signage LED Display wedding stage
P1.875 indoor HD COB Shelf Signage LED Display wedding stage
P1.875 indoor HD COB Shelf Signage LED Display wedding stage
P1.875 indoor HD COB Shelf Signage LED Display wedding stage
P1.875 indoor HD COB Shelf Signage LED Display wedding stage
P1.875 indoor HD COB Shelf Signage LED Display wedding stage
P1.875 indoor HD COB Shelf Signage LED Display wedding stage
P1.875 indoor HD COB Shelf Signage LED Display wedding stage

P1.875 indoor HD COB Shelf Signage LED Display wedding stage

Model NO.
JC-FSI-PH1.875MM
Price:
USD 500.00-850.00
Minimum order quantity:
1
Supply Ability:
10000 / Month
Country of Origin:
Shenzhen
Quantity:
  • Place of Origin:CN;GUA
  • Usage:Indoor
  • Display Function:Video
  • Screen Dimension:Customized Size
  • Model Number:JC-FSI-PH1.875MM
  • Brand Name:JC
  • Tube Chip Color:FULL COLOR
  • Pixels:1.875 pixel
  • Chip Color:full color
  • Brightness:2000 nit
  • Panel material:Die-casting Al-cabinet
  • IP rate:IP43
  • Weight:43~45KG/PCS
  • Configurations:1R1G1B
  • Gray scale per color:360000 levels
  • Colors:281 trillion billion
  • Refresh Rate:3840Hz



P1.875 indoor HD COB Shelf Signage LED Display wedding stage



Quick Details:



1.  Seamless --- precision die casting aluminum panel, light weight and more durable.
2.  Quality SMD LEDs --- with wide viewing angle to ensure vivid and sharp images and video.
3.  Energy saving --- 42V power supply, lower power consumption and protect environment.
4.  High refresh rate and high gray scale --- ensures the LED display to take on more perfect images.
5.  Noiseless --- silence with no fan design.
6. Wider and better view angle: 150° view angle in both Horizontally and vertically


Product Description

COB Shelf Signage LED Display


Shockproof & Waterproof & Dustproof COB screen can be wiped with rag when it is splashed; Hammer to knock and watering cabinet surface, While SMD can not be done like this. Wider and better view angle: 150° view angle in both Horizontally and vertically: Better viewing angle



1.  Power Supply
Taiwan Meanwell brand Electric container,Or G-Energy power supply,more stable power output function, longer life, with protection mechanism against short circuit, overload,over temperature and over voltage.

2.  LEDs
CREE / NICHIA / Epistar chips, with size of 12mil, 13mil,some are Cree as customized.better quality and working hour be guaranteed with using the medium level or more good chips.Better ensure the lamps cooling and effect of display with large chips package.

3.  Cabinet
Good cabinet uniformity, adopt the standard cabinet dimension design,also can be designed accordIng to customers request,easy for installation and maintenance.

4. Wire and Cable
Famous brand China government standard Wire,the China government standard wire copper, high in quality and  antioxidant capacity and ability of against conduct electricity.

5.  Fan
ADDA brand fan, high  wind capacity, durable  life, 2 years of continuous working life. Low noise, low power consumption, durable life, high winds capacity, with certificate of  UL / CUL, TUV,and CE certificate.

Specification



Pixel Pitch

1.875mm

Pixel Density

360000dots/sqm

Color Configuration

1R1G1B

LED Encapsulation

SMD1515

Module Size

200mm x 150mm

Module Resolution

120dots x 90dots

Drive Duty

1/30 Constant Current

Brightness

>2000nits

Viewing Distance

2m - 60m

Viewing Angle

H: 120°; V: 70°

Refresh Rate

2,000HZ

Frame Rate

120frame/sec

Grey Grade

256levels of Each Color

Color Grade

16.7M

Power Input

5V-20A, AC110V/ 220V/ 50HZ

Max Power Consumption

1,200W/sqm

Ave. Power Consumption

400W/sqm

Storage Temperature

-40℃~+80℃

Working Temperature

-20℃~+60℃

Blind Spot Rate

<1/10000

MTBF

>10,000 Hours

Life Span

>100,000 Hours

Waterproof

IP43

Operating Humidity

10%~95%

Control System

Synchronous, Asynchronous

Operating System

Win 98, Win2000, XP, 07.etc

Input Source

All Format (AVI, MPEG,VOB, RM, etc)

Certificate

CE, LVD, RoHS





Detailed Images



cob signage 7.jpg









 cob signag 5.jpg







cob led sign.png



cob led sign 1.png

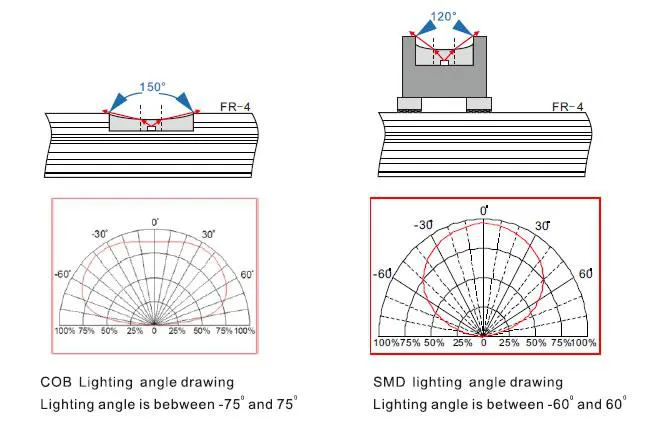

Wider and better view angle: 150° view angle in both Horizontally and vertically:



cob led sign 2.png

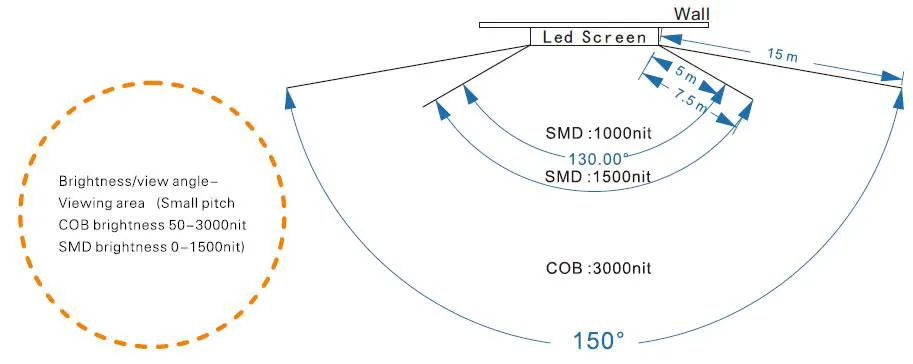

Better viewing angle with higher brightness both indoor and outdoor:



cob led sign 3.png











Production Flow

Product Lines.jpg
