Outdoor/indoor video display led display LVP605/LVP605s video processor
Outdoor/indoor video display led display LVP605/LVP605s video processor
Outdoor/indoor video display led display LVP605/LVP605s video processor
Outdoor/indoor video display led display LVP605/LVP605s video processor
Outdoor/indoor video display led display LVP605/LVP605s video processor

Outdoor/indoor video display led display LVP605/LVP605s video processor

Model NO.
LVP605
Quantity:
  • Product Name:LVP605 led VIDEO PROCESSOR
  • Application:led display
  • Certificate:CE ROHS FCC
  • Weight:5.7 kg
  • Warranty:1 Year
  • Voltage:AC110~240V
  • Control mode:RS232/USB/LAN/WIFI/Infrared
  • MOQ:1 Piece
  • Brand Name:VDWALL
  • Model Number:LVP605
  • Power:25W
  • Frequency Range (Hz):no
  • Dimension (L x W x H):no
  • Place of Origin:CN;GUA

A: Main Feature:



1.  10+ Bit Faroudja® DCDI Cinema Processing

2.  New Faroudja® Real Color®

3.  Faroudja® TureLife™ Video Enhancer

4.  Advanced 4x4 Pixels Interpolation Scaling Algorithm

5.  HDMI 1.3a with HDCP, HD 1080P input

6.  SDI / HD-SDI / 3G-SDI (1080P) Input

7.  10-bit Processing

8.  Seamless Switching, Fade-in / Fade-out switching & Blend switching in random input signals

9.  HD Text, Flash, Graphics & Logo Overlay

10. 4 custom PIP / POP display modes, which can be switched by pressing one button

11. Hot Spare function, display will be stable and reliable

12. Picture Freeze function

13. AIAO( Any In Any Out ) function allows for displaying any capturing picture in specific area on the screen

14. 2304 x 1152 or 2560 x 816 output for single machine

15. Multi-machine in parallel, multi-unit installed in parallel drive indefinite LED lattice

16. Easy setup and adjustment through knob and keys on the panel. Full design RS232 command

for operating and setting

17. Press keys or knob on frontal panel to directly select 10-channel input signal source,including:

3×CVBS        1×DVI                             1×HDMI

2×VGA          1×YPbPr / YCbCr           1×S-Video

1×EXT.( extended modle , can be VIDEO or SD I / HD-SDI / 3G-SDI or VGA / DVI / HDMI )

18. 2 channels can be configured to connect external stereo audio, plus DVI, HDMI and SDI audio,

there are 5-channel audio for synchronous switch

19. 2 LED Transmission Cards Built-in ability ( sending cards are optional )

20. 24 / 7 Application



LVP605 series product model description



*LVP605: Extend interface optional 1×Video

*LVP605S:Extend interface optional 1×SDI/HD-SDI/3G-SDI

*LVP605D:Extend interface optional 1×VGA/DVI/HDMI






B: Application:

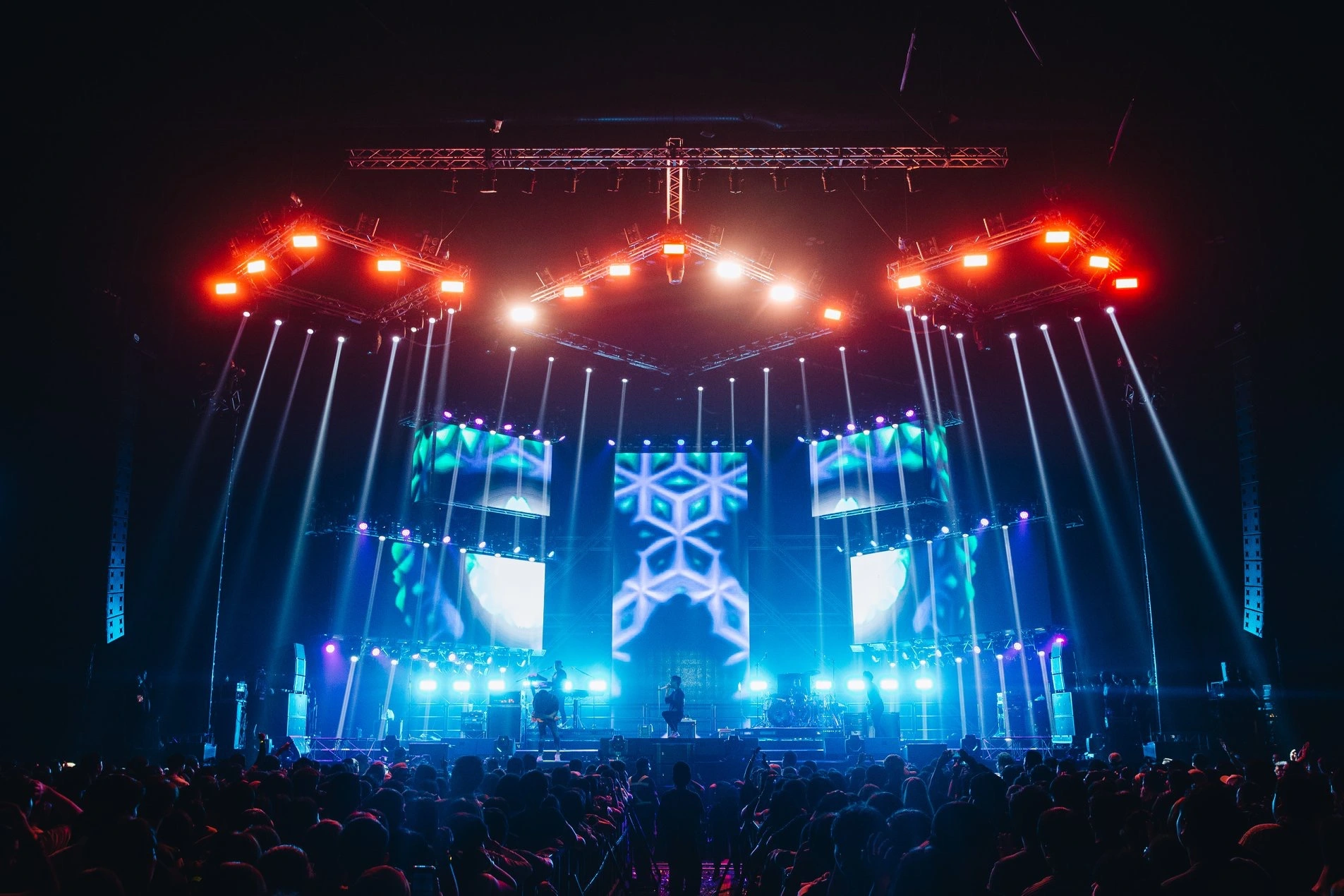

Large venue display application such as:Rental Performacne,TV broadcast center,Stage Enterainment&Theater,High-end Meetings&Exhibitions etc.





Packaging & Shipping

Packaging:

Usually, there are three tyeps of package design.

Firstly, we pack the LED display in the paper carton.



package 01



Secondly, we will pack the LED display in the flight case if  customer request for frequent movement.




Thirdly, the favorable package method is wooden case package because of its lower cost and instant usage.


Note: It also could mark the brand as clients requirement.

Shipping:

We could provide air shipping, sea shipping and international Express according to clients needs.
