Model NO.
NOVA-MSD300
Quantity:
  • Place of Origin:CN;GUA
  • Application:Indoor and outdoor
  • Color:RGB
  • Panel Size:Customized
  • Pixel Pitch:1-20mm
  • Model Number:NOVA-MSD300
  • Brand Name:NOVASTAR
  • Tube Chip Color:FULL COLOR
  • Display Function:Video
  • Usage:led screen
  • Pixels:Any pixel
  • Warranty:1 Year
  • Control system:Synchronous
  • Voltage:4-6V
  • Scan mode:Static- 1/32 scan,support smartsetting
  • Regions:No limit,support regions overlap,regions transparent
Product Description

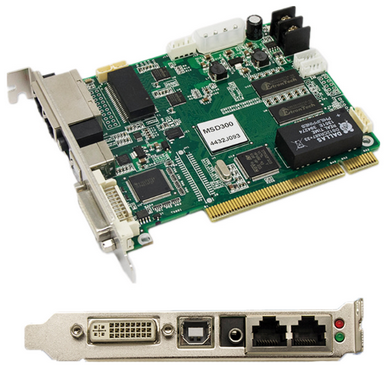

MSD300 Sending Card







Overview :

The MSD300 is an M3 series sending card from NovaStar. This sending card supports video and audio inputs, and can decode and process them before sending them to the LED screen via Ethernet port. A single MSD300 supports resolutions up to 1920×1200@60Hz. It communicates with the computer via USB port and is very convenient to use. The MSD300 can be used for rental and fixed applications, such as live events, monitoring centers and various sports centers.



Features:

1 × DVI video input and 1 × audio input

2 × Gigabit Ethernet output

1 × light sensor connector

Supports the new generation of pixel level calibration technology from NovaStar to provide a fast and efficient calibration process.

Supports a variety of video formats, as shown in Table 2-1.

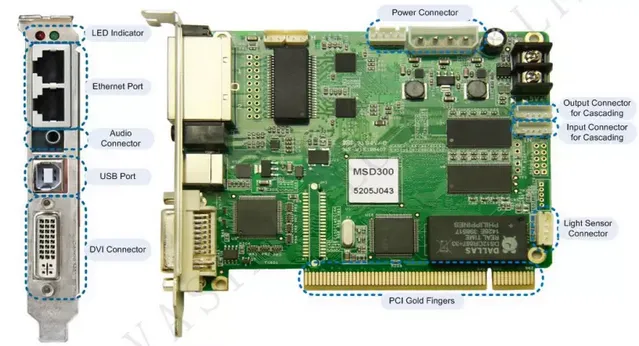

Appearance :

Note: Product pictures shown in this document are for illustration purpose only. Actual product may vary.

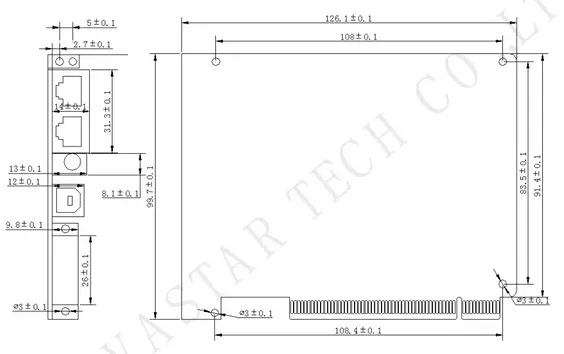

Dimensions :

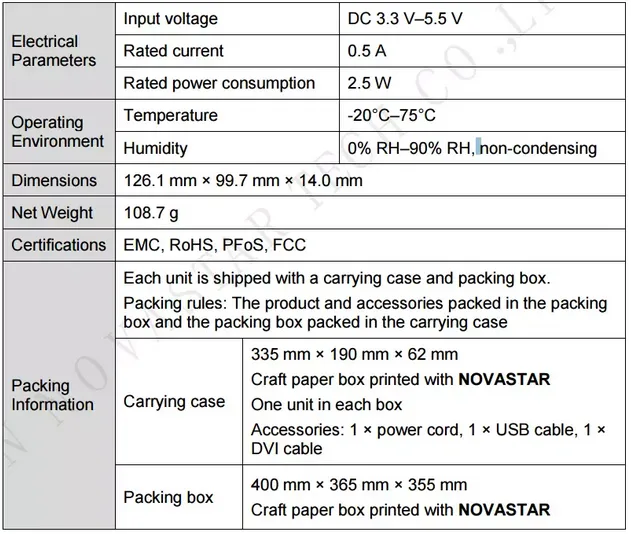

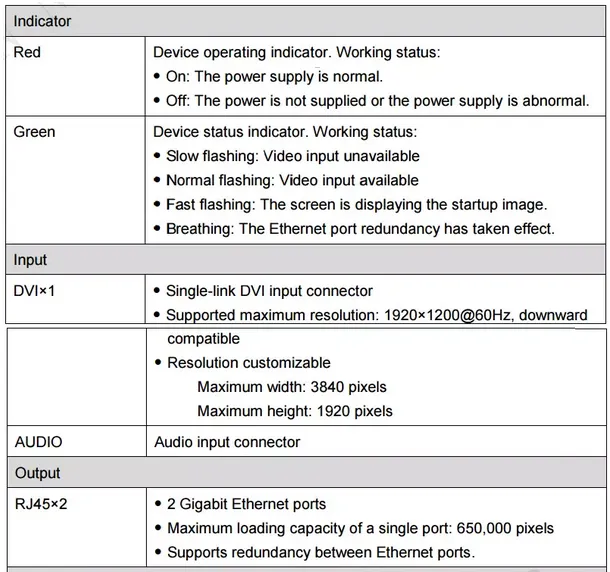

Specifications:

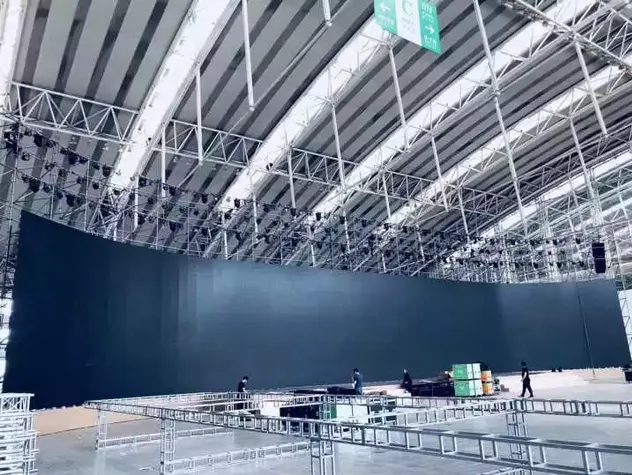

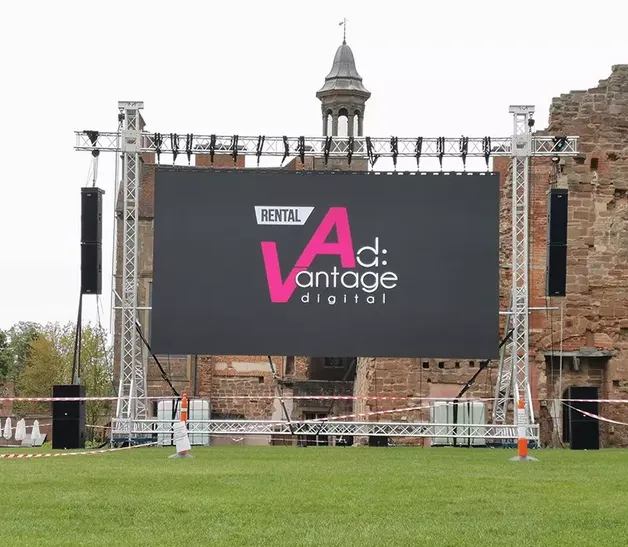

Project cases:

Quick Details

Advanced hardware design:



Small size and thickness are adopted to save space for increasingly narrow box space and lamp spacing.

High density connector interface is used to prevent dust and shock. It has high stability and reliability.

Integrating network transformer, simplifying design and improving electromagnetic compatibility will help user products pass EMC certification smoothly.




Practical software design:



Support LVDS transmission (custom function)

Supporting Intelligent Modules (Customization Functions)

Supporting Receiving Card Preset Screen Settings

Support lamp board Flash management

Supporting Temperature and Power Supply Voltage State Monitoring

Supporting network communication status monitoring (customization function)

Supporting 5pin LCD module

Supporting 90-degree multiple rotation of the screen

Packaging & Shipping

Packing: strong carton

Shipping port: Shenzhen, China

Shipping way:Air;Express;Ocean;Land Transportation

Delivery time: 3-5 working days after confirm receipt  payment in advance.

Long working life: In the Maintenance period, free of all maintenance charge.After maintenance period only charge the material costs fees.
