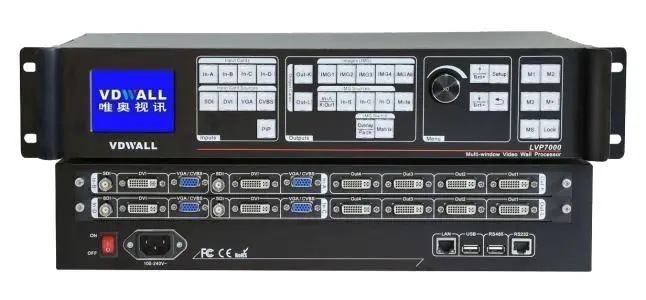

Multi-WiHD 2K/4K LVP7000 Sync Stitcher LED Video Processor for Small Pixel Pitch LED Screen

Model NO.
LVP7000
Quantity:
  • Tube Chip Color:FULL COLOR
  • Display Function:Video
  • Pixels:Any pixel
  • Screen Dimension:Customized
  • Certificate:CE ROHS FCC
  • Warranty:1 Year
  • Support pixel:1920*1080p_60Hz
  • Control system:Synchronous
  • Voltage:100 ~ 240 V AC
  • Place of Origin:CN;GUA
  • Application:Led display
  • Color:Black
  • Panel Size:482.6x300x89mm
  • Pixel Pitch:Any pixel
  • Model Number:LVP7000
  • Brand Name:VDWALL
Quick Details

Input signal index

Type/Quantity

CVBS
4×VGA(RGBHV)
4×DVI(VESA/ CEA-861)
4×SDI(SDI/HD-SDI/3G-SDI)

Video standard

PAL/NTSC

Composite Video

Scope/Impedance

1V(p_p)/ 75Ω

VGA format

PC(VESA)

≤1920×1200_60Hz

VGAScope/Impedance

R,G,B = 0.7 V(p_p)/ 75Ω

DVI format

PC(VESA)

≤1920×1200_60Hz

HDMI-1.3(CEA-861)

≤1920×1080_60Hz

SDI format

SMPTE 259M

SMPTE 292M

480i_60Hz

576i_50Hz

720p,1080i,1080p

Input port

CVBS:VGA socket P4
VGA:15pin D_Sub(female)
DVI:24+1 DVI_D
SDI:BNC/ 75Ω

Output signal index

Type/Quantity

8×DVI

Preview output

1×DVI(one channel of Out_K or Out_L is optional as preview output)

DVI resolution

1024×768_60Hz1280×1024_60Hz

1920×1080p_60Hz1920×1200_60Hz

Output port

DVI:24+1 DVI_D

Others

Control port

RS232/USB/LAN

Input Voltage

100-240VAC 50/60Hz

Maximum power consumption

≤80W

Operating Temp

0-45

Humidity

15-85%

Dimensions(Product)

482.6(length) x 300(width) x 89(height)mm

Dimensions(Package)

540(length) x 400(width) x 180(height)mm

Weight(N.W.)

6Kg

Weight(G.W.)

9Kg


Features:

1.Highly integrated video processor with varieties of advanced image.processing technologies:Seamless switching, Sync-output cropped images, Multi-window display by image overlay etc

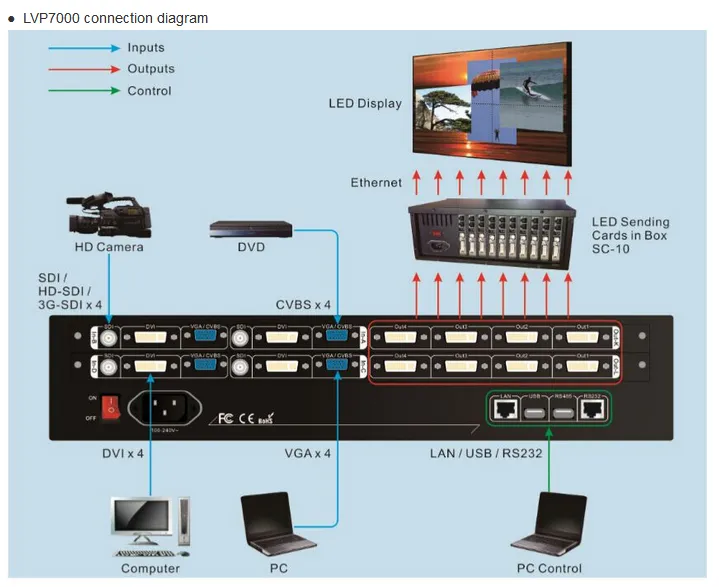

2.Supports SD and HD, Analog and Digital Video Inputs:

4×CVBS 4×VGA

4×DVI(HDMI) 4×SDI(SD-SDI / HD-SDI / 3G-SDI)

3.Per pixel Motion Adaptive De-interlacing processing by Faroudja DCDi

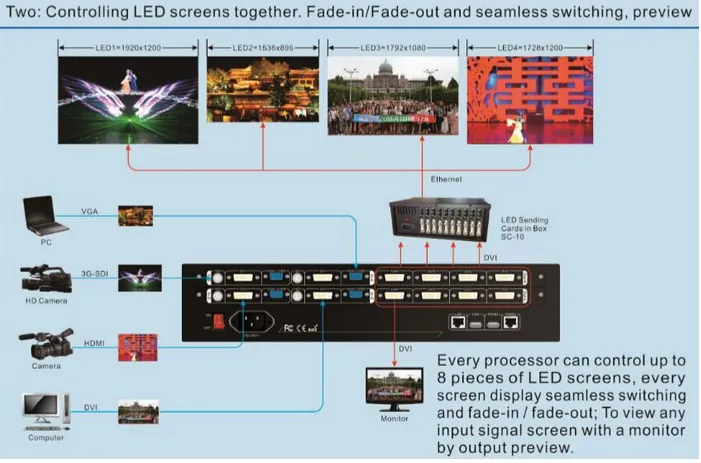

4.8 DVI Outputs, Each one has the resolution up to 1920 x 1200_60Hz

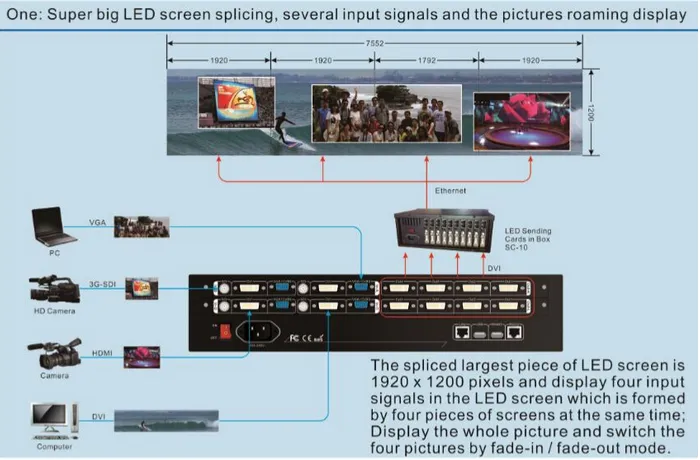

5.Output width up to 20480 pixels or output height up to 9600 lines by one LVP7000

6.Device Aided calculation of the cropped image’s size and position

7.Fully CrossPoint high bandwidth video switching

8.Ture seamless switching and Fade-in/Fade-out switching to any one of input signals

9.Backup or Restore the device settings and adjustment data by a PC

10.24/7 Application, stable and reliable







Application:

Rental Performance,special-shaped or ultra-large LED display,mixed displays(with different poxel pitch),Stage Entertainment & Theater,High-end Meetings& Exhibitions etc.



Specifications:

Input signal index

Type/Quantity

CVBS
4×VGA(RGBHV)
4×DVI(VESA/ CEA-861)
4×SDI(SDI/HD-SDI/3G-SDI)

Video standard

PAL/NTSC

Composite Video

Scope/Impedance

1V(p_p)/ 75Ω

VGA format

PC(VESA)

≤1920×1200_60Hz

VGAScope/Impedance

R,G,B = 0.7 V(p_p)/ 75Ω

DVI format

PC(VESA)

≤1920×1200_60Hz

HDMI-1.3(CEA-861)

≤1920×1080_60Hz

SDI format

SMPTE 259M

SMPTE 292M

480i_60Hz

576i_50Hz

720p,1080i,1080p

Input port

CVBS:VGA socket P4
VGA:15pin D_Sub(female)
DVI:24+1 DVI_D
SDI:BNC/ 75Ω

Output signal index

Type/Quantity

8×DVI

Preview output

1×DVI(one channel of Out_K or Out_L is optional as preview output)

DVI resolution

1024×768_60Hz1280×1024_60Hz

1920×1080p_60Hz1920×1200_60Hz

Output port

DVI:24+1 DVI_D

Others

Control port

RS232/USB/LAN

Input Voltage

100-240VAC 50/60Hz

Maximum power consumption

≤80W

Operating Temp

0-45

Humidity

15-85%

Dimensions(Product)

482.6(length) x 300(width) x 89(height)mm

Dimensions(Package)

540(length) x 400(width) x 180(height)mm

Weight(N.W.)

6Kg

Weight(G.W.)

9Kg

Packaging & Shipping

Packing: Anti-shaking wooden cabinet/Air flight case/strong carton

Shipping port: Shenzhen, China

Shipping way:Air;Express;Ocean;Land Transportation

Delivery time: 7-15 working days after confirm receipt  payment in advance.

Long working life: In the Maintenance period, free of all maintenance charge.After maintenance period only charge the material costs fees.
