Model NO.
LRS-350-5
Quantity:
  • Product Name:Meanwell power supply LRS-350-5
  • Application:LED display
  • Certificate:CE
  • Net Weight:1 kg
  • Power Supply:300W 5V 60A
  • Place of Origin:CN;GUA
  • Application:led display
  • Color:silver
  • Panel Size:10cm*5cm
  • Pixel Pitch:no
  • Model Number:LRS-350-5
  • Brand Name:Meanwell

Product description:

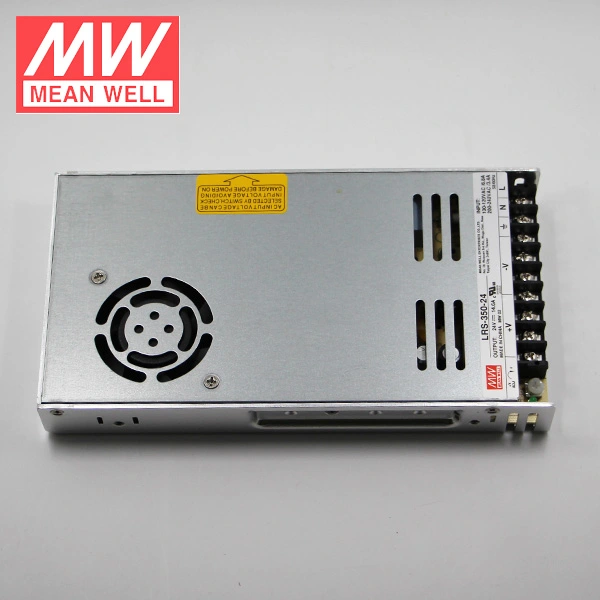

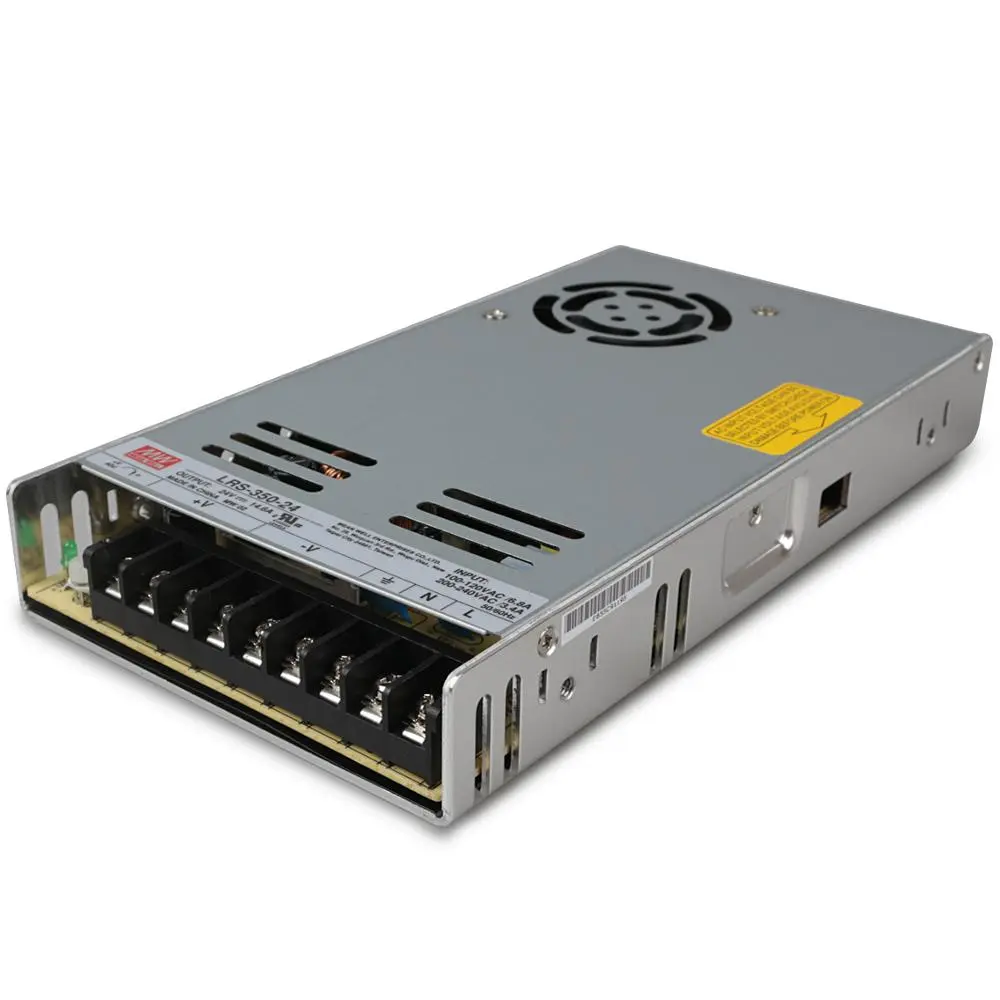

Meanwell LRS-350 Series LRS-350-5 LRS-350-12 LED Displays Power Supply

LRS-350 series is a 350W single-output enclosed type power supply with 30mm of low profile design. Adopting the input of 115VAC or 230VAC (select by switch), the entire series provides an output voltage line of 3.3V,4.2V,5V,12V,15V,24V,36Vand48V.
In addition to the high efficiency up to 89%,with the built-in long life fan LRS-350 can work under -25~+70°C with full load.Delivering an extremely low no load power consumption(less than 0.75W),it allows the end system to easily meet the worldwide energy requirement.LRS-350 has the complete protection functions and 5G anti-vibration capability;it is complied with the international safety regulations such as UL60950-1.LRS-350 series serves as a high price-to-performance power supply solution for various industrial applications.

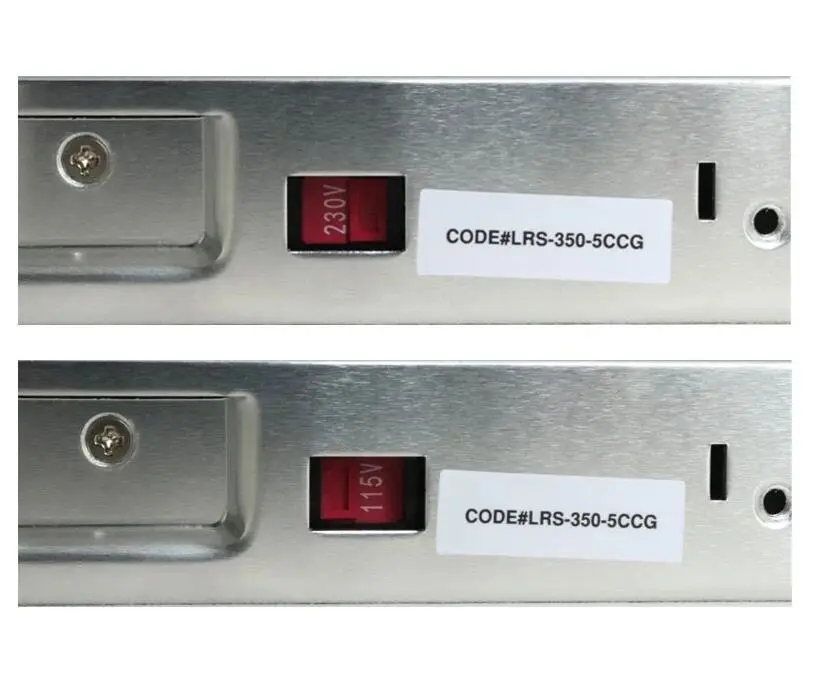

AC input range selectable by switch
Withstand 300VAC surge input for 5 second
Protections: Short circuit / Overload / Over voltage /Over temperature
Forced air cooling by built-in DC fan
Built-in cooling Fan ON-OFF control
1U low profile
Withstand 5G vibration test
LED indicator for power on
No load power consumption<0.75W
100% full load burn-in test
High operating temperature up to 70°C
Operating altitude up to 5000 meters Note 8
High efficiency, long life and high reliability
3 years warranty





Pictures:


Packaging & Shipping

Packaging:

Usually, there are three tyeps of package design.

Firstly, we pack the LED display in the paper carton.



package 01



Secondly, we will pack the LED display in the flight case if  customer request for frequent movement.




Thirdly, the favorable package method is wooden case package because of its lower cost and instant usage.


Note: It also could mark the brand as clients requirement.

Shipping:

We could provide air shipping, sea shipping and international Express according to clients needs.


Our Services

1. Your inquiry about our products or the price will be replied within 24 hours!
2. We provide 2 years for warranty and lifelong maintaining, you will appreciate our warm after-sale service.
3. We will delivery goods as you demand, you can choose the cheaper and more convenient way!
4. Apart from the Outdoor LED Display, Visionled also can offer you LED Pharmacy Cross Display, LED Flexible Display, Indoor LED Display, LED Gas Price Signs, Indoor/outdoor LED Signs
