Led display full color control card novastar A9S receiver card
Led display full color control card novastar A9S receiver card

Led display full color control card novastar A9S receiver card

Model NO.
NOVA-MSD300
Quantity:
  • Place of Origin:CN;GUA
  • Tube Chip Color:FULL COLOR
  • Display Function:Video
  • Usage:led screen
  • Pixels:Any pixel
  • Brand Name:NOVASTAR
  • Model Number:NOVA-MSD300
  • Screen Dimension:Customized
  • Certificate:CE ROHS FCC
  • Warranty:1 Year
  • Support pixel:512x512
  • Control system:Synchronous
  • Voltage:4-6V
  • Load capacity:262144PIXEL
  • Video format: RGB:RGB
  • Video Source Depth:18bit
Product Description

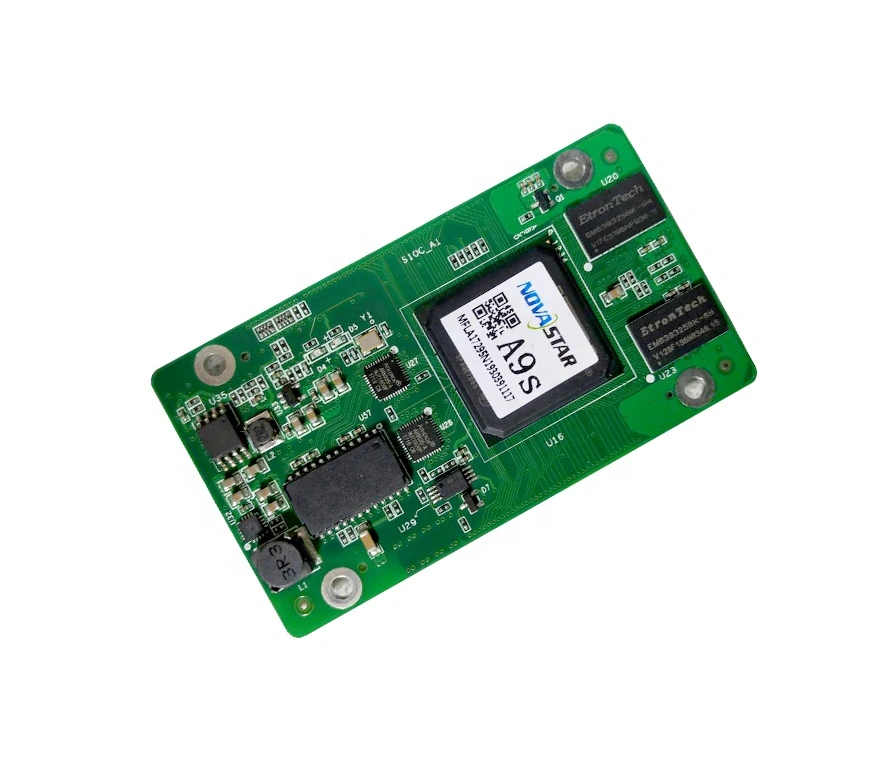

Receiver card A9s


Carried Pixels: 512*512

RGB Parallel Data Lines: 32 Groups

Lamp board Flash: Support

Point-by-point brightness correction: support

Dual Card Backup: Support

Automatic reading of correction coefficients: support

RCFG Backup and Readback: Support

Mapping: Support

18 bit+ (4 times gray level enhancement):-

ClearView: Not supported





Quick Details




A9s is Nova's small-size full-function high-end receiving card with 512 *512 (PWM IC) pixels on a single card.

A9s supports point-by-point brightness correction. With NovaLCT and NovaCLB, the brightness and chroma of each light spot are corrected. The chromatic aberration is effectively eliminated, and the consistency of the LED display screen is significantly improved. At the same time, A9s can support the rotation of the display screen at a multiple of 90 degrees, making the screen richer and bringing the user the best view. Sensory experience. The hardware design and software design of A9s fully consider the scenarios of user deployment, operation and maintenance, so that deployment is easier, operation is more stable and maintenance is more efficient.

Advanced hardware design:

Small size hardware design is adopted, which is suitable for small box space and small space application scenarios.

High density connector interface is used to prevent dust and shock. It has high stability and reliability.



Integrating network transformer, simplifying design and improving electromagnetic compatibility will help user products pass EMC certification smoothly.



Practical software design:

Support LVDS transmission (special firmware support).

Support Intelligent Module (Special Firmware Program Support).

Supports rapid seam repair.

Support 3D function.

Support module automatic calibration.

Support Mapping.

Supports the setting of the pre-stored screen of the receiving card.

Support lamp board Flash management.

It supports self-monitoring of voltage and temperature without any other peripherals.

Supporting the monitoring of network communication status (special firmware program support).

Support 5pin LCD module.

Supports 90-degree rotation of the screen.

Packaging & Shipping

Packing: strong carton

Shipping port: Shenzhen, China

Shipping way:Air;Express;Ocean;Land Transportation

Delivery time: 3-5 working days after confirm receipt  payment in advance.

Long working life: In the Maintenance period, free of all maintenance charge.After maintenance period only charge the material costs fees.





Our Services
We're aware that you have choices about where to buy your technology and we believe we’re the best choice.
Our stuff is better because we stand behind it and we’re better.

We know technology can be daunting, so we offer a variety of services to help your self-service or digital project succeed in the field.

OEM services:  Shenzhen Jingcan Opto-Tec Co.,Ltd can make your own design and requirements. We are strong designing power and rich experience in OEM&ODM industry, we are able customize your own product without any difficulty .We offer full suggestions on parts installed.

Replacement & Repair: Choose from a variety of response and coverage times for ongoing break-fix maintenance. We can also inventory spare parts for your units and attend to those mission-critical items that mean the difference between success and failure of your application in the field.



Company Information

JINGCAN OPTO-TEC CO.,LTD was established in 2013, we are a professional LED media/video display exporter and manufacturer. Our company is located in Shenzhen,the focus of high end LED display technology professionals in China. Top management with  LED display experience over 80% . So far, our LED display is widely used in advertising media,sports venues and road traffic, stock exchange,financial information shows the information publicity and dislay of port terminals and airport terminals, and business propaganda in shopping and shopping centers.Exported to Germany,UK,USA, South Korea,North Korea,Thailand,Italy,Russia,Malaysia and other countries and regions. At any time, we are the best one of your reliable choice.
