Model NO.
LVP515
Quantity:
  • Product Name:LVP515 led VIDEO PROCESSOR
  • Application:led display screen
  • Certificate:CE ROHS FCC
  • Weight:5.7 kg
  • Warranty:1 Year
  • Voltage:AC110~240V
  • Control mode:RS232/USB/LAN/WIFI/Infrared
  • MOQ:1 Piece
  • Place of Origin:CN;GUA
  • Brand Name:VDWALL
  • Model Number:LVP515
  • Power:20W
  • Frequency Range (Hz):no
  • Dimension (L x W x H):no

A: Main Feature:



1.10+ Bit Faroudja® DCDI Cinema Processing

2.New Faroudja® Real Color®  processor

3.Faroudja® TureLife™ Video Enhancer

4.Seamless switch , fade in fade out, blend.

5.Frame synchronous technology, no miss alignment or delay

6.PIP/PBP display in any size and in any place

7.3 custom PIP/POP display modes, which can be switched by pressing one button

8.User define DVI EDID to realize point-to -point display.

9.User define output format to reach maximal horizontal width 3840 or vertical height 1920.

10.2 channels can be configured to connect external stereo audio, plus HDMI and SDI audio, there are 4-channel audio for synchronous switch

11.2 LED Transmission Cards Built-in ability (sending cards are optional)

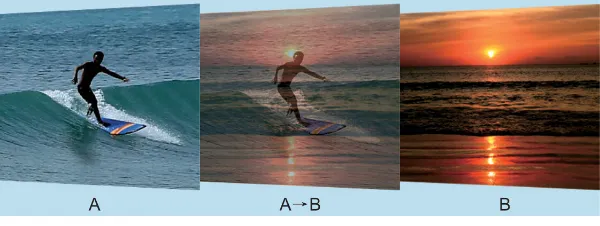

Feature one : Fade-in / Fade-out

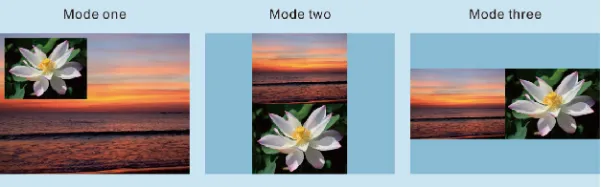

Feature two : PIP, POP, Text overlay

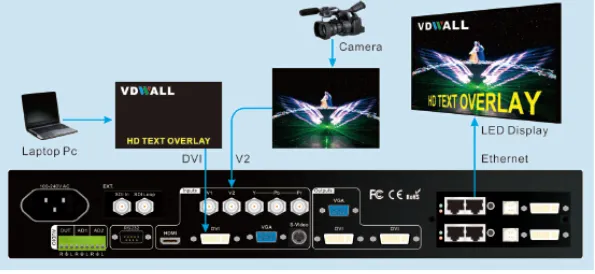

Feature three :HD text overay

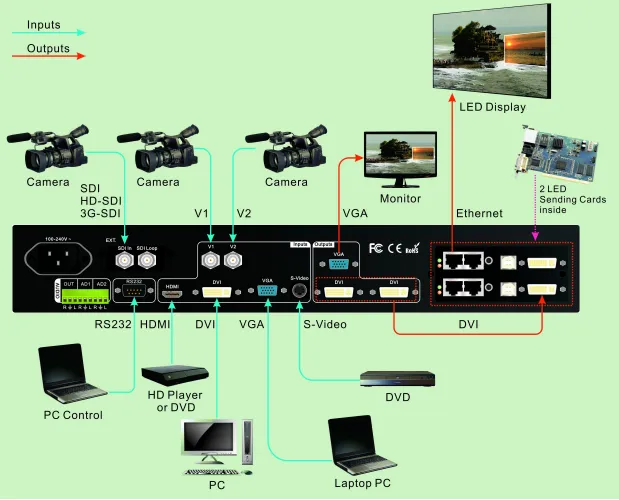

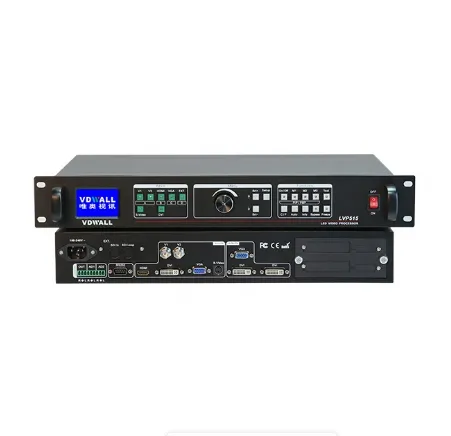

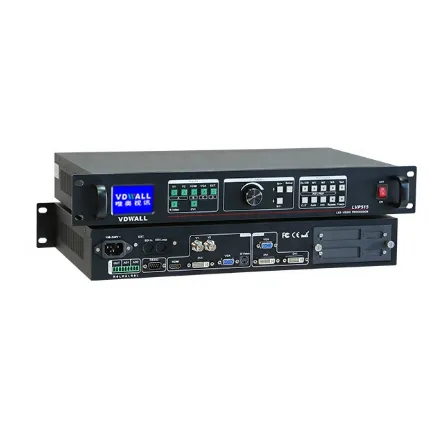

Detail picture:

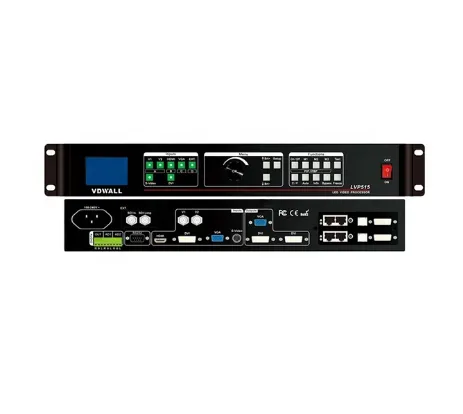

 Dimension:


B: Application:

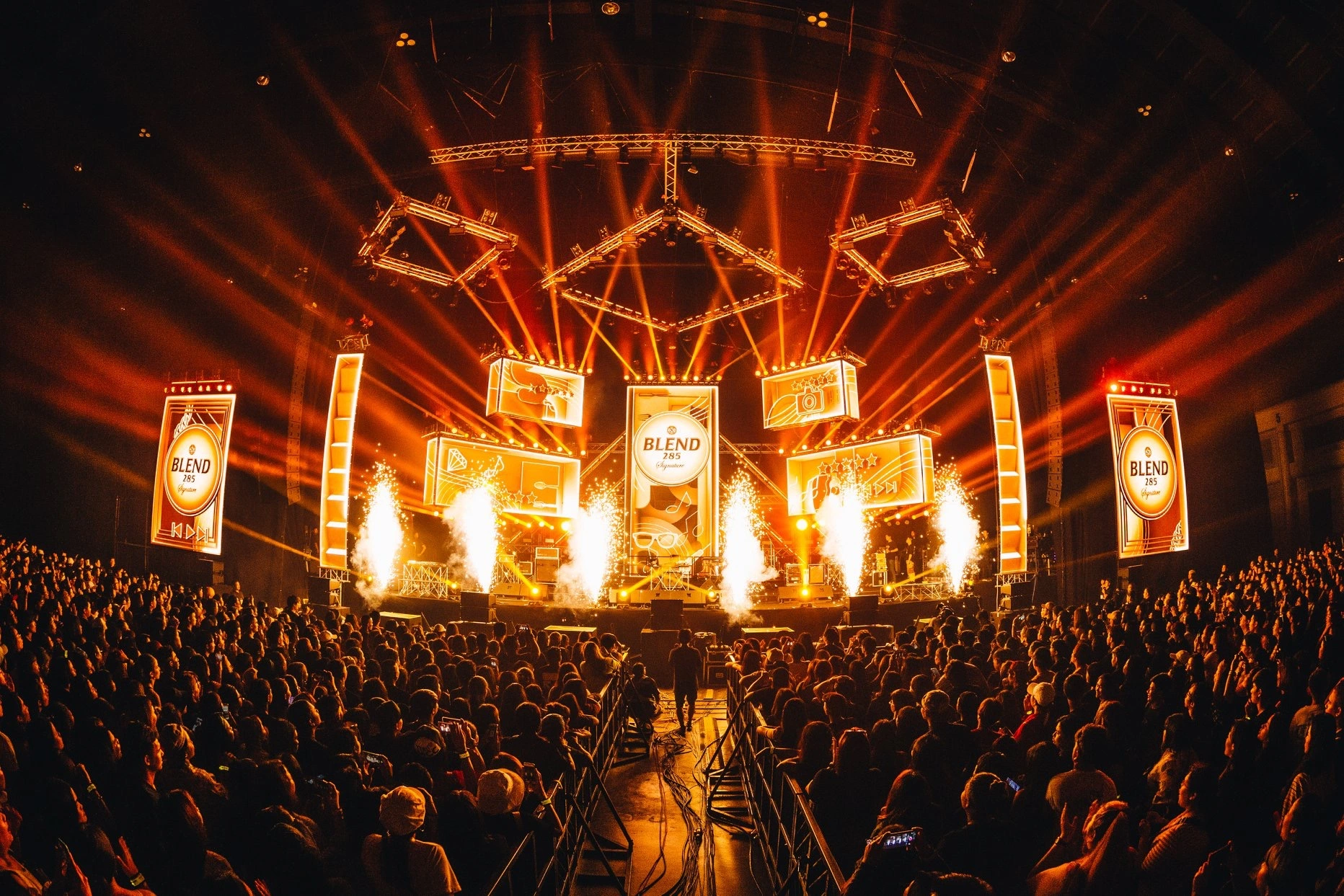

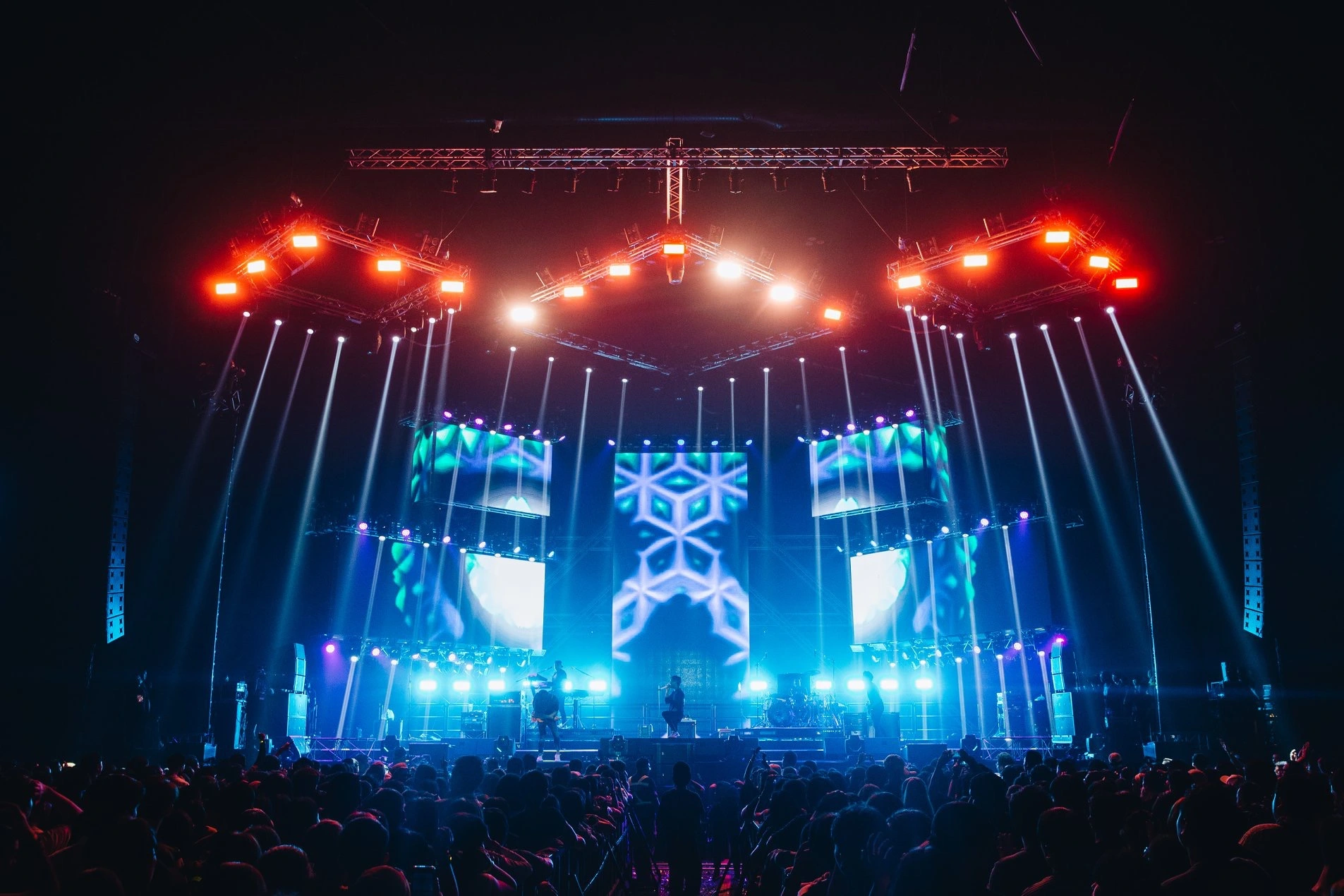

Large venue display application such as:Rental Performacne,TV broadcast center,Stage Enterainment&Theater,High-end Meetings&Exhibitions etc.




Packaging & Shipping

Packaging:

Usually, there are three tyeps of package design.

Firstly, we pack the LED display in the paper carton.



package 01



Secondly, we will pack the LED display in the flight case if  customer request for frequent movement.



Thirdly, the favorable package method is wooden case package because of its lower cost and instant usage.



Note: It also could mark the brand as clients requirement.

Shipping:

We could provide air shipping, sea shipping and international Express according to clients needs.
