front service access P3 indoor full color led display module 192mm*192mm 1/32 scan
front service access P3 indoor full color led display module 192mm*192mm 1/32 scan
front service access P3 indoor full color led display module 192mm*192mm 1/32 scan
front service access P3 indoor full color led display module 192mm*192mm 1/32 scan
front service access P3 indoor full color led display module 192mm*192mm 1/32 scan
front service access P3 indoor full color led display module 192mm*192mm 1/32 scan
front service access P3 indoor full color led display module 192mm*192mm 1/32 scan
front service access P3 indoor full color led display module 192mm*192mm 1/32 scan
front service access P3 indoor full color led display module 192mm*192mm 1/32 scan
front service access P3 indoor full color led display module 192mm*192mm 1/32 scan
front service access P3 indoor full color led display module 192mm*192mm 1/32 scan
front service access P3 indoor full color led display module 192mm*192mm 1/32 scan
front service access P3 indoor full color led display module 192mm*192mm 1/32 scan

front service access P3 indoor full color led display module 192mm*192mm 1/32 scan

Model NO.
JC-FSO-PH3MM
Quantity:
  • Place of Origin:CN
  • Application:advertising
  • Color:fuoll color
  • Panel Size:192mm*192mm
  • Pixel Pitch:3mm
  • Model Number:JC-FSO-PH3MM
  • Brand Name:JC
  • Pixels:P3 indoor led module
  • Tube Chip Color:FULL COLOR
  • Usage:Indoor
  • Brightness:1000nit
  • IP rate:IP45
  • Configurations:1R1G1B
  • Density:111111pixels/sqm
  • Gray scale per color:65536 levels
  • Colors:281 trillion billion
  • Module size:192*192 mm

Front service full color p3 smd indoor led module

Feature and Advantage

1.High brightness Contrast:4000:1, which is a very high level to ensure a vivid image of our LED display screen system

2. First-class LED chip: Supplied by Cree & other high strictly selected LED chip to ensure the long lift-time and high brightness of our LED display screen system

3.Clear vivid image quality even in direct, full-on sunlight to ensure you attracts more audience to get short ROIof  your LED display screen's investment.

4.Long-term Brightness:More 7000-nit brightness(for outdoor full color)(2000 nits brightness for indoor full color)capacity throughout product lifetime of the LED display screen.

5.Easy Installation & Using: easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED display screen system

6.Convenient Servicing: Front and rear cabinet access make the maintance work very convenient and low cost to help you concentrate more time and energy on your main marketing promotion business.



Module size: big size 192mm*192mm, front service could be more easily install and disassembly form cabinet.




Module aging testing:











Application:




Our service



1.Your inquiry related to our products or price will be replied in 24hrs

2.OEM&ODM,any your customized lightings we can help you to design and put into product

3.Distributoership are offered for your unique design and some our current models

4.Protection of your sales area,ideas of design and all your private information

5.Top Quality+Reasonable Price+Responsible After Service=Successful & Win

6. Export countries :  Peru,  Mexico, Colombia, Turkey, US, UK, etc.



Trade Terms



1.Payment: T/T 35% as deposits before production, T/T 65% balance before delivery

2.Shipping freight are quoted under your requests

3.Shipping port: Shenzhen, Mainland China

4.MOQ:1sqm p7.62 one line english led message signboard

5.Delivery time: 10-15days after receive pre-payment



LED Screen Parameter



Technical DataModelPH3
Pixel Pitch3mm
Physical Density(pixels/m²)111111
LED Shape & SizeSMD 3 in 1
LED Arrangement1R1G1B
Module Size(mm)192*192
Module Resolution64*64
Drive ModeDynamic 1/32 Duty Constant Current
Brightness≥1000cd/m²
Contrast(cd/m²)≥2000:1
View Angle, 50% Brightness140°/110°
Minimum View Distance2m
Grey Scale10bits/1024levels
Color Capacity1.07billion
Maximum Power Consumption860W/m²
Ave.Power Consumption280W/m²
Operation Power SourceAC90-260V 50-60HZ
Frame Frequency60-85HZ
Refresh Rate240-1000HZ
Brightness Adjustment0-100% 8 levels automatic
Gamma Correction-5.0-5.0
Correction Scale Level16bits
Color Temperature5000-9300K
Brightness CorrectionPixels, Module, Cabinet Correction
Input Source SupportComposite, S-Video,Component,VGA,DVI,HDMI,SDI, HD_SDI
Control DistanceUTP CAT5E:100m;Multi-mode Fiber:50m;Single-mode Fiber:10km
Operating Temperature-40°C - 65°C
Operating Humidity10-90%RH
Operating Life Span100,000Hours
MTBF5000 Hours
Protection RatingsIP43
Out of Control Rate0.01%





Production Flow

Product Lines.jpg

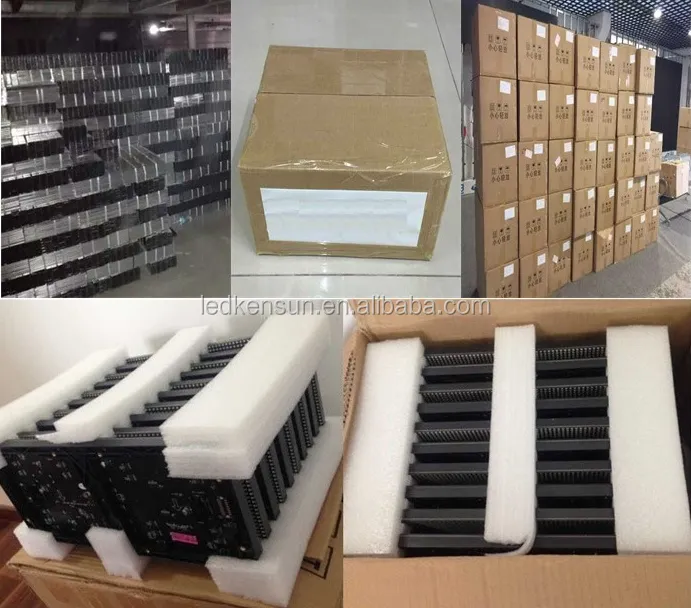

Packaging & Shipping

1. Firstly, we will use foam wrapped the modules and 40pcs module will be in one carton.

package 01



2. Secondly, we also provide wooden case for our clients for fixed installation would be fine.

package sample.jpg



3. Thridly, we also could provide flight case for our clients, it uauslly used in rental moving events.

P3 LED cabinet - Flight Case Package



All package could be customized size according to your requirements.



Meanwhile, we sold our products more than 150 countries over 7 continents, and we have a long-term cooperation with UPS, DHL, Fedex etc, air shipping, sea shipping etc.
