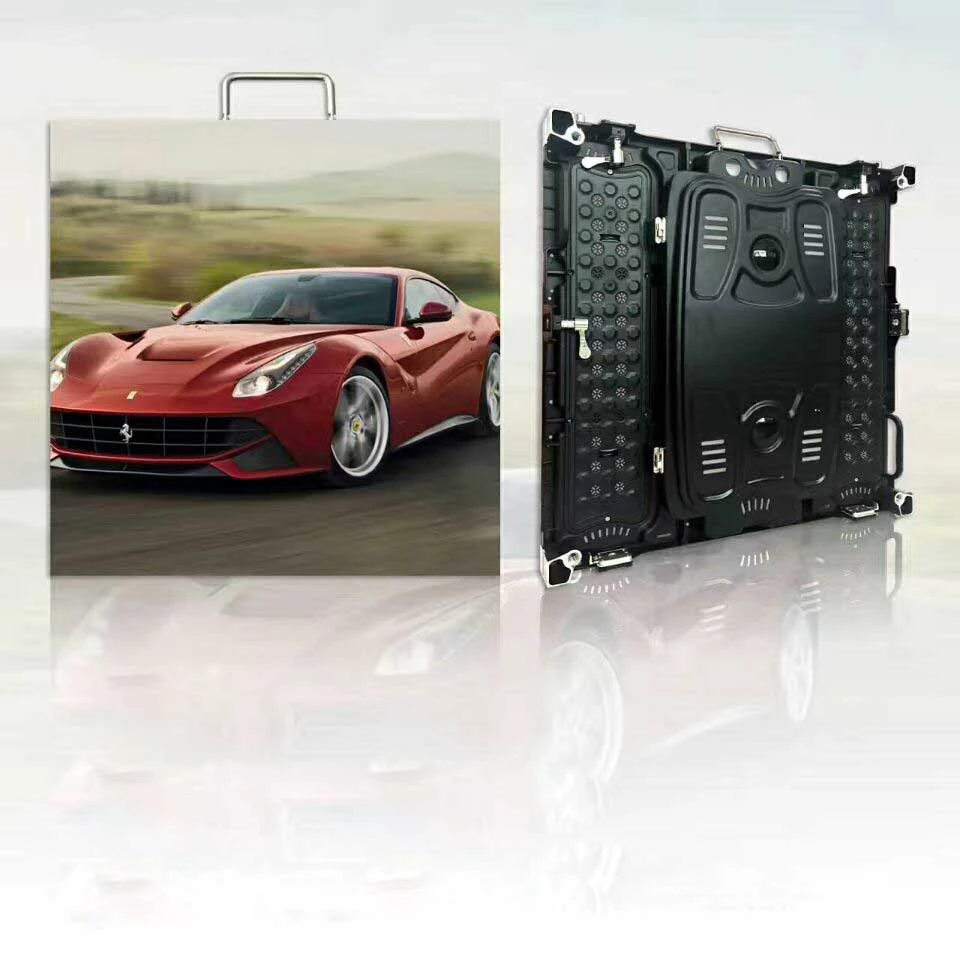

256x128mm P4 Price Full Color High Resolution Led Display Wall Panel, Indoor Led Video Screen
256x128mm P4 Price Full Color High Resolution Led Display Wall Panel, Indoor Led Video Screen
256x128mm P4 Price Full Color High Resolution Led Display Wall Panel, Indoor Led Video Screen
256x128mm P4 Price Full Color High Resolution Led Display Wall Panel, Indoor Led Video Screen
256x128mm P4 Price Full Color High Resolution Led Display Wall Panel, Indoor Led Video Screen
256x128mm P4 Price Full Color High Resolution Led Display Wall Panel, Indoor Led Video Screen
256x128mm P4 Price Full Color High Resolution Led Display Wall Panel, Indoor Led Video Screen
256x128mm P4 Price Full Color High Resolution Led Display Wall Panel, Indoor Led Video Screen
256x128mm P4 Price Full Color High Resolution Led Display Wall Panel, Indoor Led Video Screen
256x128mm P4 Price Full Color High Resolution Led Display Wall Panel, Indoor Led Video Screen
256x128mm P4 Price Full Color High Resolution Led Display Wall Panel, Indoor Led Video Screen
256x128mm P4 Price Full Color High Resolution Led Display Wall Panel, Indoor Led Video Screen
256x128mm P4 Price Full Color High Resolution Led Display Wall Panel, Indoor Led Video Screen

256x128mm P4 Price Full Color High Resolution Led Display Wall Panel, Indoor Led Video Screen

Model NO.
JC-IFC-P4
Price:
USD 650.00-680.00
Minimum order quantity:
10
Supply Ability:
10000.0 / Month
Country of Origin:
Shenzhen
Quantity:
  • Usage:Indoor
  • Tube Chip Color:FULL COLOR
  • Display Function:Video
  • Certificate:FCC
  • Application:Adervertising
  • Warranty:2 Years
  • Name:P4 indoor Led Screen
  • Module size:256x128mm
  • Life span:100000hours
  • Pixels:4mm
  • Place of Origin:CN;GUA
  • Application:Indoor
  • Color:RGB
  • Panel Size:256X128mm
  • Pixel Pitch:4mm
  • Model Number:JC-IFC-P4
  • Brand Name:JC
Product Description



To adopt Printed Circuit Board to instead  of matal cables in the side of cabinet.

Without complex cable checking and connection.

It is more helpful for display to work fluently.

The other important advantage is avoiding more trouble and saving much time for after-sales maintenance.

If any wrong for circuit working, customer can easily replace the board in time.



Module specification



Pixel pitch3mmDriving method
Constant current driving
Package led modeSMD2121Gray level12-16/bit
Pixel density111111dots/sq.mViewing  distance6-100M
Brightness
2200 CD/SQ.MViewing angle 120degrees
Brightness controlRed,Green and Blue 256 Grade/EachPower(MAX)750W/SQ.M
Working voltageDC 5VPower(average)400W/SQ.M
Colors>4.39 TrillionTemperature range-15-60degree celsius
Module size192 x 96Humidity range10%-90%RH
Module resolution64 x 32Input voltage
AC220V(110V)+/-15% (50-60Hz)
Scan Mode1/16scan Control method Synchronous computer or Asynchronous



Cabinet specification


 576x576/mm die cast al-cabinet

Cabinet Size/mm576(W)x576(H)x80(D)
Cabinet Size/inch

22.67W)X22.67(H)X3.14(D)

Qty Of Module3(W)X6(H)
Cabinet Resolution(dots)192X192
Cabinet Area(sq.m)0.33
Cabinet Weight(kg)9
Cabinet Type and MatrialIron cabinet(aluminum cabinet/die cast al-cabinet can be choiced

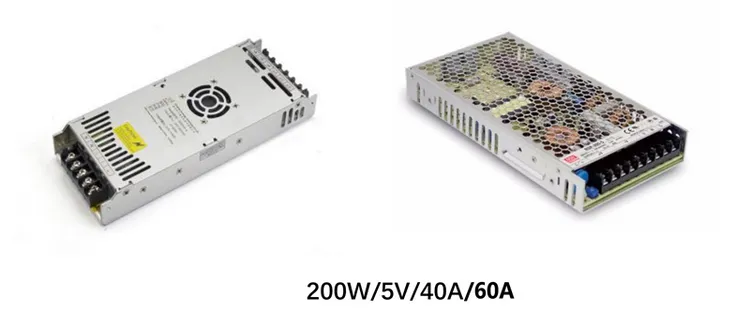

 Power supply

power supply.png

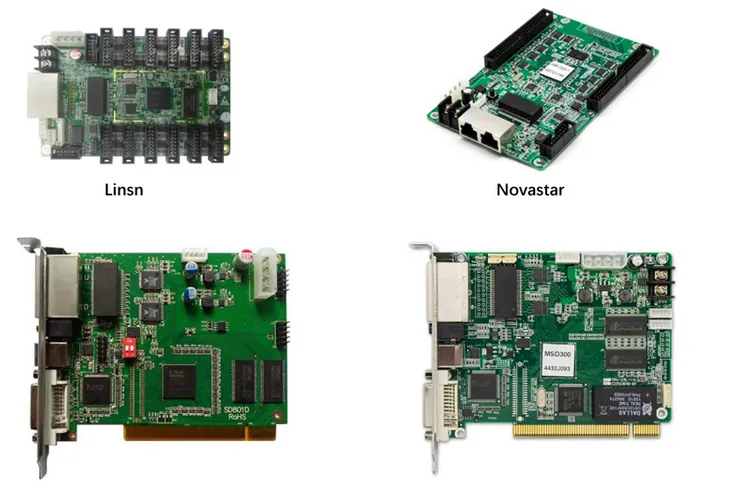

Contral system

control system.png

Packaging & Shipping

Packing: Anti-shaking wooden cabinet/Air flight case/strong carton

Shipping port: Shenzhen, China

Shipping ways and freights are quoted according to your requests

Delivery time: 7-15 working days after confirm receipt  payment in advance.

Payment Term: T/T, L/C ,Trade Assurance,Western Union,Moneygram,Paypal etc.

Long working life: In the Maintenance period, free of all maintenance charge.After maintenance period only charge the material costs fees.


Company Information

JINGCAN OPTO-TEC CO.,LTD was established in 2013, we are a professional LED media/video display exporter and manufacturer. Our company is located in Shenzhen,the focus of high end LED display technology professionals in China. Top management with  LED display experience over 80% . So far, our LED display is widely used in advertising media,sports venues and road traffic, stock exchange,financial information shows the information publicity and dislay of port terminals and airport terminals, and business propaganda in shopping and shopping centers.Exported to Germany,UK,USA, South Korea,North Korea,Thailand,Italy,Russia,Malaysia and other countries and regions. At any time, we are the best one of your reliable choice.
