Model NO.
P3
Quantity:
  • Place of Origin:CN;GUA
  • Display Function:Video
  • Screen Dimension:Customized
  • Brand Name:JINGCAN
  • Tube Chip Color:FULL COLOR
  • Usage:Outdoor
  • Model Number:P3
  • Pixels:3mm
  • Certificate:RoHS
  • Brightness:2000cd/sqm
  • Color:RGB
  • Application:Live Events Led Display
  • LED chip:Epistar
  • Name: 2016 Brand New Designed
  • Module size:192mm*96mm
  • Warranty:2years
  • Product name:LED Bag from JINGCAN LED FACTORY
  • Power Supply:UL CE ROHS Meanwell







2016 Brand New Designed LED Product - LED Bag  from JINGCAN LED FACTORY


Quick Details:



  • High brightness & adjustable.

  • Convenient operation

  • Friendly iPhone & Andriod app supporting

  • Multi-functional design

Product Description



LED modules: This LED bag supporting P3, P4, P5, P6 LED modules. You can select the item you prefer.

Control system: WIFI, Bluetooth, GPRS, USB, APP, 3G, 4G through iPhone and Andriod system.

Power supporting modules: It was powered by portable power bank with USB connection. Its small volume of the body design and light weight with ultra-long time of working.

Displaying Format: JGP, GIF, text and images.


LED Application:




It can be utilized by all kinds of the exhibtion & shows. You can easily carry away merely put it on your shoulder. In addition, you also can use it in the night bar and pubs these types of entertainment places. People would enjoyed more distinctions and happiness of this LED bag. It helps users to improve their quality of life and express their different attitudes of lives. People can use its iphone App or Andriod app to run the LED bag and customize its information easily. It would be popular to be a great helper in your ordinary life.


Ladies may usually put their phones, lipsticks, purse or cards and keys and etc. Anything important you may bring with your LED bag. More security and fabulous design !



Specification



P3 Full Color SMD3528 Indoor Module
ItemUnitParameter
Pixel Pitchmm3
Resolution of Moduledots64×64
Module Sizemm320×320
Module Weightkg0.4
Pixel Configuration SMD2020 1R1G1B
Chip Brand of LEDsEpistar
Pixel Densitydots/sqm11,1111
Brightness (White Balance)nits(cd/sq.m)2000
Red Wavelengthnm620-625
Green Wavelengthnm520-525
Blue Wavelengthnm470-475
Scan Mode1/16 Scan
Viewing DistanceM3--35
Best View DistanceM5--15
Viewing Angle-Horizontaldeg.120
Viewing Angle-Verticaldeg.120
Module Maximum PowerW25
Max. Power ConsumptionW/sq.m1,000
Avg. Power ConsumptionW/sq.m300
Working Voltage5V 40A
Power SupplyAC 110/220V
Refresh RateHz/S3,000
Frame RateHz/S≥ 60
Gray Scale4096 grades gray
Display Color256*256*256
Display FunctionText,news,advertising,flash,animation
Input Signal     RF,S-Video,RGB,RGBHV,YUV,YC,SDI,HD-SDI,DVI,UXGA,COMPOSITION,etc.
Luminance DegradationLess than 5% after 1000 hours Ageing test, testing current 30mA, under normal temperature 25°C.
Defective Dot Rate<0.0001
Life Spanhours100,000
MTBFhours>5,000
Storage Temperature°C45
Working Temperature°C         -20 -- +60
Working Humidity10-90%RH
Control SystemSynchronization or Asynchronization
Quality CertificateETL,CE,RoHS,TUV,FCC class A,ISO9001:2008







Detailed Images

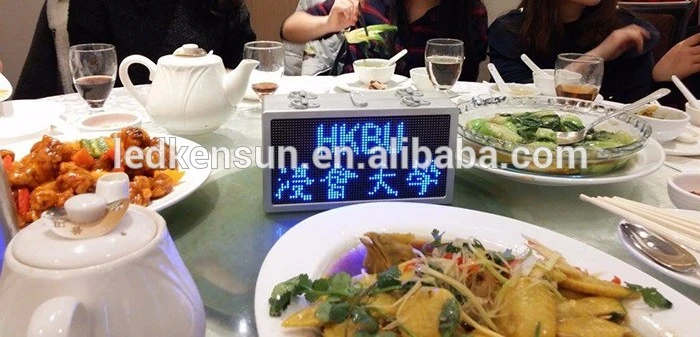

 1. In the restuarants



LED BAG 02.jpg





2. On the exhibition shows






3. In a Party time :



LED BAG 01.JPG
